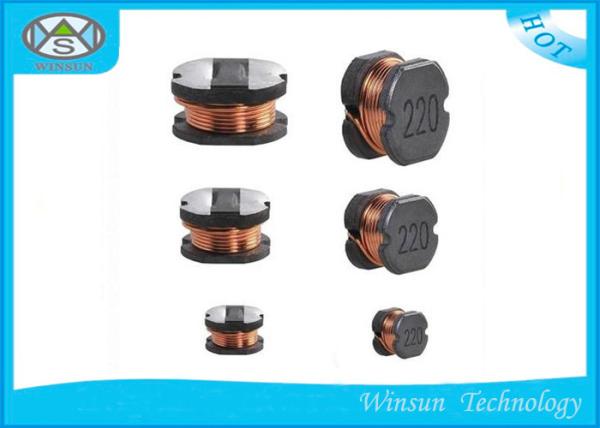

High Precision Wire Wound Coil Power Inductor , Low DCR Unshielded Inductor
High Precision Wire Wound Coil Power Inductor , Low DCR Unshielded Inductor
High Precision Wire Wound Coil Power Inductor , Low DCR Unshielded Inductor
High Precision Wire Wound Coil Power Inductor , Low DCR Unshielded Inductor
Specifications
Brand Name :
WS
Model Number :
WS-PIO-Ind
Certification :
Rohs
Place of Origin :
Shenzhen of China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
plastic reel + carton
Inductance :
1-3300uH
Rated Current :
0.07-12A
DCR :
0.008~95 R
Package :
SMD
Delivery :
Fast
Description

High Precision SMD Power Inductor / WS-PIO Series / Unshielded Wire Wound / Low Price


SPECIFICATIONS:

Various high power surface mountable type
inductors are superior to high saturation

Inductance Range: 1uH~1000uH
Rated Current : 0.12A~6A(Max)

DCR : 0.012~6 Ω (Max)

Operating temperature range : –40 to + 85°C
Storage temperature range: –10 to + 40°C

FEATURES:

Low cost design

Low DCR and high saturation DC current

Low power lost,low fluency for the around equipment

Low profile
High saturation current

Magnetic shielded
SMT type, suitable for reflow solding.

APPLICATIONS:

LED lights

Adaptors

Electrical ballasts

Portable communication equipment

Notebook Computer

LCD television

Power supply for VTRs

DC/DC converters etc.

Inductance Range 1uH~1000uH
Rated Current 0.12-6A
DCR 0.012~6Ω (Max)

Payment and Shipping:
1, Lead time about 3~5 days.
2, Payment: T/T; Western union; Paypal .
3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect

DIMENSION SIZE:(mm)

High Precision Wire Wound Coil Power Inductor , Low DCR Unshielded Inductor

Part Number L (μH) Tolerance Test Freq. DCR(Ω)Max Isat( A)
PIO31-2R2MT 2.2 20% 100 kHz 0.085 1.30
PIO31-3R3MT 3.3 20% 100 kHz 0.115 1.20
PIO31-4R7MT 4.7 20% 100kHz 0.170 1.00
PIO31-100MT 10 20% 100kHz 0.350 0.78
PIO31-150MT 15 20% 100kHz 0.550 0.60
PIO31-220MT 22 20% 100kHz 0.890 0.46
PIO31-270MT 27 20% 100kHz 1.050 0.43
PIO31-330MT 33 20% 100kHz 1.250 0.40
PIO32-1R0MT 1.0 20% 100kHz 0.05 1.85
PIO32-1R5MT 1.5 20% 100kHz 0.06 1.85
PIO32-1R8MT 1.8 20% 100kHz 0.07 1.70
PIO32-2R2MT 2.2 20% 100kHz 0.08 1.60
PIO32-2R7MT 2.7 20% 100kHz 0.09 1.55
PIO32-3R3MT 3.3 20% 100kHz 0.10 1.40
PIO32-3R9MT 3.9 20% 100kHz 0.115 1.30
PIO32-4R7MT 4.7 20% 100kHz 0.165 1.25
PIO32-5R6MT 5.6 20% 100kHz 0.185 1.20
PIO32-6R8MT 6.8 20% 100kHz 0.21 1.10
PIO32-8R2MT 8.2 20% 100kHz 0.24 1.05
PIO32-100MT 10 20% 100kHz 0.35 0.760
PIO32-120MT 12 20% 100kHz 0.46 0.685
PIO32-150MT 15 20% 100kHz 0.50 0.635
PIO32-180MT 18 20% 100kHz 0.60 0.525
PIO32-220MT 22 20% 100kHz 0.65 0.500
PIO32-270MT 27 20% 100kHz 0.75 0.405
PIO32-330MT 33 20% 100kHz 0.85 0.380
PIO32-390MT 39 20% 100kHz 1.00 0.355
PIO32-470MT 47 20% 100kHz 1.60 0.330
PIO32-560MT 56 20% 100kHz 1.65 0.290
PIO32-680MT 68 20% 100kHz 1.85 0.275
PIO32-820MT 82 20% 100kHz 2.10 0.250
PIO32-101KT 100 10% 1kHz 2.20 0.220
PIO42-1R0MT 1.0 20% 100kHz 0.050 3.00
PIO42-1R5MT 1.5 20% 100kHz 0.055 2.80
PIO42-2R2MT 2.2 20% 100kHz 0.070 2.50
PIO42-3R3MT 3.3 20% 100kHz 0.085 2.25
PIO42-4R7MT 4.7 20% 100kHz 0.120 1.80
PIO42-6R8MT 6.8 20% 100kHz 0.170 1.40
PIO42-8R2MT 8.2 20% 100kHz 0.200 1.20
PIO42-100MT 10 20% 100kHz 0.210 1.00
PIO42-150MT 15 20% 100kHz 0.470 0.82
PIO42-220MT 22 20% 100kHz 0.500 0.60
