WS Fixed Inductor 0.1uH - 1mH 0307 Color Code For Choke Coils ,10 - 400mA
WS Fixed Inductor 0.1uH - 1mH 0307 Color Code For Choke Coils ,10 - 400mA
WS Fixed Inductor 0.1uH - 1mH 0307 Color Code For Choke Coils ,10 - 400mA
WS Fixed Inductor 0.1uH - 1mH 0307 Color Code For Choke Coils ,10 - 400mA
Specifications
Brand Name :
WS
Model Number :
WS-LGA 0307
Certification :
SGS
Place of Origin :
Shenzhen of China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
Typing package + carton
Product Name :
Color code inductor
Inductance :
0.1uH - 1mH
Size :
0307
Tolerance :
+/- 5% , 10% , 20%
IDC :
10 - 400mA
Shipping :
By DHL, FEDEX, TNT ,UPS,EMS ect.
Description

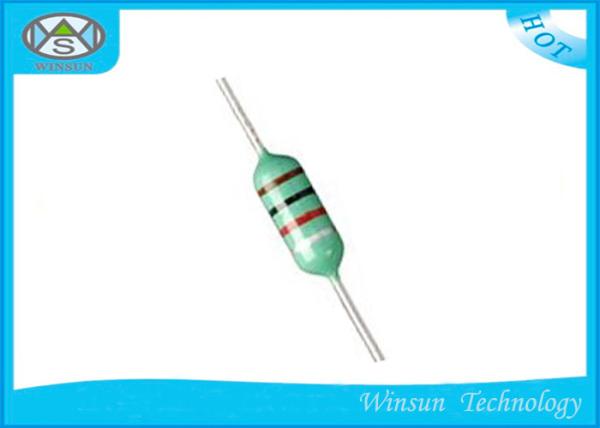

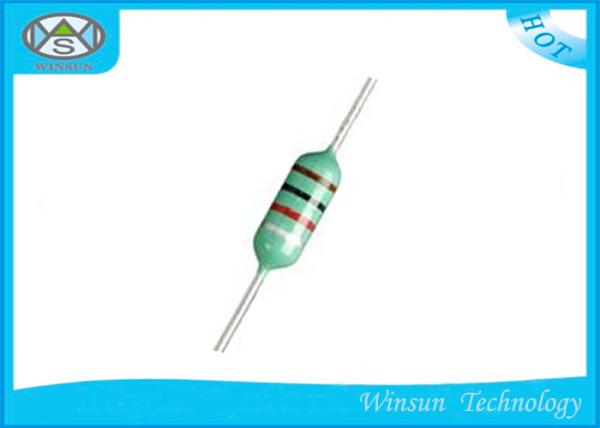

Lead Free Rohs Fixed Inductor LGA 0307 Color Code Axial Lead Coil Inductor

Features:

Dimensions Size: 0307
Inductance Range: 0.22uH - 1mH
Tolerance: J=+/-5% K=+/-10% M=+/-20%

IDC:40mA - 400mA

Prompt Delivery and Good after-sale service
RoHs CE compliant

Applications:

1. Choke coils
2. RF.coils
3. Peaking coils cauect ect

Selling points:
1) prompt delivery
2) variety of packing:bulk and carton
3) stable performance,extensive resistance
4) factory direct price
5) none forbidden
6) all materials & machines importer.

7) AII products of the size,electronical performance can be designed. If you have any questions or requirements, please contact us freely in any time.
8) Our product will the best choice for you.Welcome to provide us your specifications.

We will submit the best quotation shortly.
Don't hesitate to contact us, we will try our best to satisfy with you within our capability.

Payment and Shipping:
1, Lead time about 3~5 days.
2, Payment: T/T; Western union; Paypal .
3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect

Dimensions Size Inductance Range Tolerance IDC
0307 0.22uH - 1mH J=+/-5% K=+/-10% M=+/-20% 40mA - 400mA

WS Fixed Inductor 0.1uH - 1mH 0307 Color Code For Choke Coils ,10 - 400mA

LGA0307 Type Nominal Inductance ( uH) Tolerance Q (min) RDC(Ω max Test frequency (MHZ) SRF (MHZ)min Rated Idc (mA)max
LGA0307-R22 0.22 K=10% M=20% J=5% 35 0.40 25.2 150 400
LGA0307-R27 0.27 0.43 380
LGA0307-R33 0.33 0.48 370
LGA0307-R39 0.39 0.51 350
LGA0307-R47 0.47 40 0.56 330
LGA0307-R56 0.56 0.61 320
LGA0307-R68 0.68 0.67 310
LGA0307-R82 0.82 0.74 290
LGA0307-1R0 1.0 0.80 270
LGA0307-1R2 1.2 50 0.90 7.96 144 260
LGA0307-1R5 1.5 1.0 131 250
LGA0307-1R8 1.8 1.1 121 240
LGA0307-2R2 2.2 1.2 110 230
LGA0307-2R7 2.7 1.3 100 220
LGA0307-3R3 3.3 1.4 94 210
LGA0307-3R9 3.9 1.6 65 200
LGA0307-4R7 4.7 1.7 56 190
LGA0307-5R6 5.6 1.9 48 180
LGA0307-6R8 6.8 2.0 37 175
LGA0307-8R2 8.2 2.2 25 165
LGA0307-100 10 2.5 21 160
LGA0307-120 12 2.5 2.52 19 150
LGA0307-150 15 2.8 17 145
LGA0307-180 18 3.1 13 140
LGA0307-220 22 3.4 9.6 130
LGA0307-270 27 3.8 7.2 125
LGA0307-330 33 4.1 6.3 120
LGA0307-390 39 4.5 6.3 115
LGA0307-470 47 4.9 6.3 110
LGA0307-560 56 5.3 6.2 105
LGA0307-680 68 5.8 5.7 100
LGA0307-820 82 6.3 5.3 95
LGA0307-101 100 7.0 4.8 90
LGA0307-121 120 13.0 0.796 3.8 90
LGA0307-151 150 15.0 3.5 85
LGA0307-181 180 16.0 3.3 80
LGA0307-221 220 17.0 3.0 75
LGA0307-271 270 19.0 2.8 65
LGA0307-331 330 20.0 2.6 60
LGA0307-391 390 22.0 2.4 55
LGA0307-471 470 24.0 2.25 55
LGA0307-561 560 26.0 2.10 50
LGA0307-681 680 28.0 1.95 45
LGA0307-821 820 30.0 1.85 40
LGA0307-102 1000 33.0 1.40 40
