Thin SMD High Current Power Molding Inductor 2.2uh Super Low Resistance For PDA
Thin SMD High Current Power Molding Inductor 2.2uh Super Low Resistance For PDA
Thin SMD High Current Power Molding Inductor 2.2uh Super Low Resistance For PDA
Thin SMD High Current Power Molding Inductor 2.2uh Super Low Resistance For PDA
Thin SMD High Current Power Molding Inductor 2.2uh Super Low Resistance For PDA
Thin SMD High Current Power Molding Inductor 2.2uh Super Low Resistance For PDA
Specifications
Brand Name :
WS
Model Number :
WS-BWSL-Ind
Certification :
SGS
Place of Origin :
Shenzhen of China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
plastic reel + carton
Color :
Gray,Black
Inductance :
0.47uH - 10uH
Rated Current :
7A - 26A
DCR :
5 - 72 mR
Package :
SMT
SFR :
Excellent SRF
Size :
Small
Description

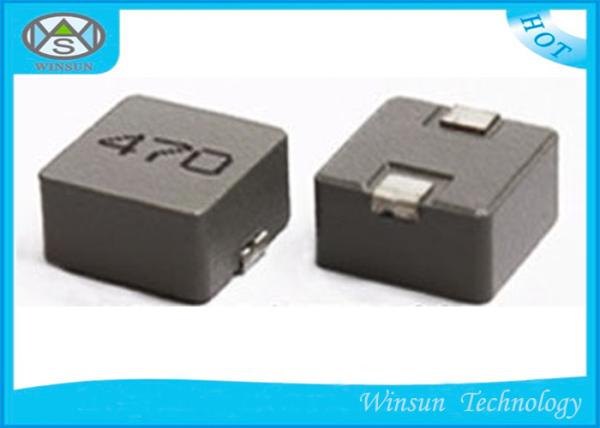

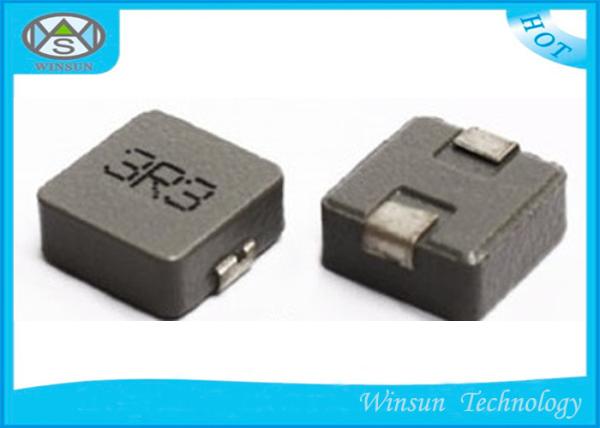

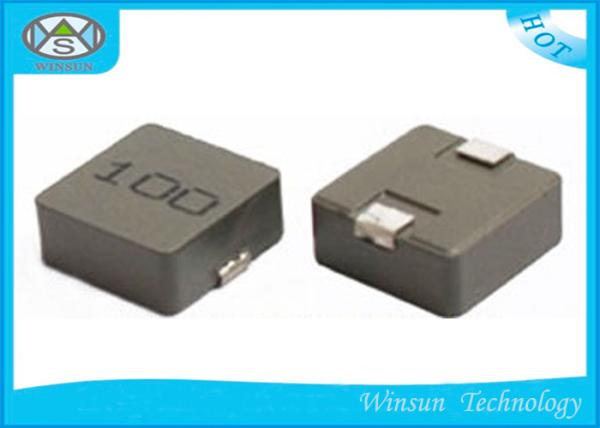

High Current thin SMD Power Molding inductor 2.2uh Super Low Resistance For PDA

Key Specifications/Special Features:

Inductance Range: 0.47uH - 10uH
Rated Current : 7A~26A(Max)

DCR : 5~72 mΩ (Max)
Operating temperature range:-25°C~+110°C with rated current
Storage temperature range:-25°C~+110°C
Large permissible D.C. current and low D.C. resistance
Tolerance of inductance:

Shielded types available

Ferrite bobbin core, low core loss at frequency

High reliability and efficiency

Small size

Winding covered with shrinkable tube

Magnetic shielding, used in high-density mounting configurations

Excellent Q-frequency characteristics

High withstanding voltage and insulation resistance

Our features:
1. Good price
Our price is 10% lower than the market because of the introduction of full automatic production line with the characteristics of reducing the cost of labor and management.
2. Stable performance
Our most basic guarantee: The aging time exceeding 24 hours. Malfunction dot rateless than 0.0001. MTBF more than 1000 hours.
3. Delivery Fast

Our lead time about 3-5 days .

PART NUMBERING SYSTEM:
WSBWSL - 0603 - 100 - M - R
(1 ) (2) (3) (4) (5)
1 Series Name
2 Dimensions
3 Inductance 1R0＝1.0 uH.100＝10uH.101＝100uH.
4 Tolerance J＝±5%, K＝±10%, L＝±15%, M＝±20%, P＝±25%, N＝±30%
5 Packing code R: Tape&Reel B: In Bulk

Inductance Range 0.47uH~10uH
Rated Current 7 - 26A
DCR 5~72 mΩ (Max)

Thin SMD High Current Power Molding Inductor 2.2uh Super Low Resistance For PDA

Thin SMD High Current Power Molding Inductor 2.2uh Super Low Resistance For PDA

Thin SMD High Current Power Molding Inductor 2.2uh Super Low Resistance For PDA

Payment and Shipping:
1, Lead time about 3~5 days.
2, Payment: T/T; Western union; Paypal .
3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect

Contact Details:

Contact: Angel Sun

Tel: +86-13528847020

Email: Admin@winsunhk.cn

Skype: Angelsun618

Whatsapp: 13528847020

Wechat: 13528847020

QQ: 553695308
