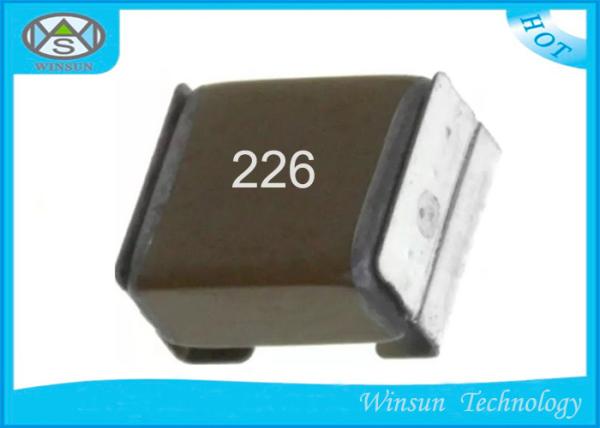

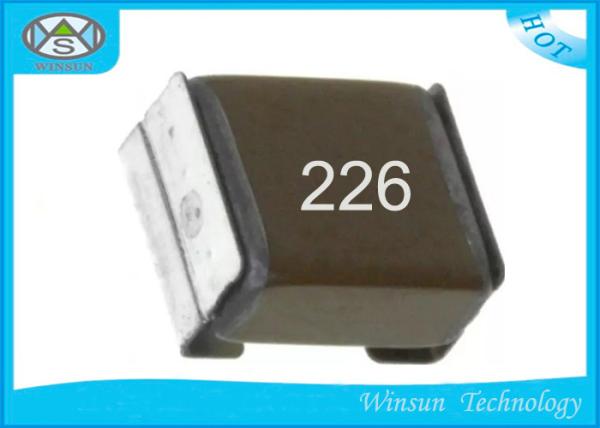

High Precision Industrial Grade Ceramic Capacitor Smd With TDK CKG57NX7S2A226MT009W
High Precision Industrial Grade Ceramic Capacitor Smd With TDK CKG57NX7S2A226MT009W
High Precision Industrial Grade Ceramic Capacitor Smd With TDK CKG57NX7S2A226MT009W
High Precision Industrial Grade Ceramic Capacitor Smd With TDK CKG57NX7S2A226MT009W
Specifications
Brand Name :
WS
Model Number :
CKG57NX7S2A226MT009W
Certification :
SGS
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
plastic reel + carton
Size :
2220
Capacitance :
22uF
Rated Voltage :
100v
Lead time :
3 days
Quality :
High Quality
Origin :
CN
Type :
MLCC
Description

High Precision Industrial Grade Ceramic Capacitor Smd With TDK CKG57NX7S2A226MT009W

Features:
• Advanced design provides improved withstand voltage characteristics.
• TDK’s proprietary internal electrode structure and the use of low-dielectric-strength
material result in highly reliable performance in high-voltage applications.
• Complies with ISO8802-3 for LAN applications.
• Designed exclusively for reflow soldering.

* Size : 2220/ 5750
* Capacitance Range: 22UF
* Voltage range: 100V

* Capcitance Tolerance: +/-20%

* RoHS Compliant, Lead free

Soldering Information:

This product intended solely for reflow soldering.
• A slit of about 1mm on the circuit board is recommended to improve removal of the flux after soldering.
• Ensure that this product is completely dried following washing.
• Because this product will be subjected to high voltages, use only low-activity rosin flux (with 0.2%max.ofchlorine).
• Using this product with aluminum circuit boards must be considered a special implementation because the
high heat stress levels are involved. In case of using aluminum circuit boards, please contact TDK.

Nominal Capacitance (pF):
The capacitance is expressed in three digit codes and in units of pico Farads(pF).

The first and second digits identify the first and second significant figures of
the capacitance. The third digit identifies the multiplier. R designates a decimal point.

Capacitance Code Capacitance
0R5 0.5pF
010 1pF
102 1,000pF (1nF)
105 1,000,000pF (1μF)

Dimension Size:

Item Size(mm)
inch cm L W Metal Terminal Width
2220 5750 6±0.50 5.00±0.50 1.60±0.30

High Precision Industrial Grade Ceramic Capacitor Smd With TDK CKG57NX7S2A226MT009W

Applications:

• Piezoelectric-effect countermeasure etc...

Contact Details:
Contact: Angel Sun
Tel: +86-13528847020
Email: Admin@winsunhk.cn
Skype: Angelsun618
Whatsapp: 13528847020
Wechat: 13528847020
QQ: 553695308
