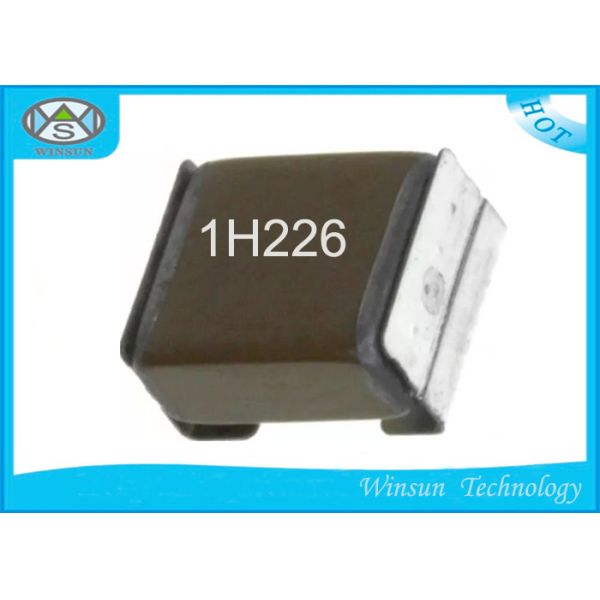

CKG57NX5R1H226MT0S9W SMD Multilayer Ceramic Capacitor , TDK Capacitor For DC DC converters
CKG57NX5R1H226MT0S9W SMD Multilayer Ceramic Capacitor , TDK Capacitor For DC DC converters
CKG57NX5R1H226MT0S9W SMD Multilayer Ceramic Capacitor , TDK Capacitor For DC DC converters
CKG57NX5R1H226MT0S9W SMD Multilayer Ceramic Capacitor , TDK Capacitor For DC DC converters
Specifications
Brand Name :
WS
Model Number :
CKG57NX5R1H226MT0S9W
Certification :
SGS
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
plastic reel + carton
Product Name :
Chip capacitor
Capacitance range :
22uF
Rated Voltage :
50v
Lead time :
3 days
Brand :
TDK
Shipping :
By DHL, FEDEX, TNT ,UPS,EMS ect.
Description

CKG57NX5R1H226MT0S9W SMD Multilayer Ceramic Capacitor , TDK Capacitor For DC DC converters

Design Structure:

No. Name Material
class 1 class 2
(1) Ceramic dielectric CaZrO3 BaTiO3
(2) Inner electrode Nickel (Ni)
(3) Terminal Copper (Cu)
(4) Nickel (Ni)
(5) Tin (Sn)
(6) Metal frame joint High temp solder
(7) Metal frame 42 alloy

CKG57NX5R1H226MT0S9W SMD Multilayer Ceramic Capacitor , TDK Capacitor For DC DC converters

Features:

* Size : 2220 / 5750
* Capacitance Range: 22uF
* Voltage range: 50V

* Capcitance Tolerance: +/-20%

* RoHS Compliant, Lead free

• Higher mechanical endurance is realized by metal frame connected
to termination of MLCC.
• Twice capacitance is realized by double-stacked structure without
changing footprint.
• Lower ESR and ESL than Al caps.
• Capable of absorbing thermal and mechanical stress.
• Improved vibration performance.

Temperature Characteristics:

Temperature Characteristics Temperature Coefficient or Capacitance Change Temperature Range
C0G 0±30ppm/℃ -55 to +125℃
X5R ±15% -55 to +85℃
X7R ±15% -55 to +125℃
X7S ±22% -55 to +125℃
X7T +22,-33% -55 to +125℃

Applications:

• DC-DC converters etc...

Dimension Size:

Item Size(mm)
inch cm L W T WB
2220 5750 5.7±0.40 5.00±0.40 ≤3.50 1.0±0.40

Dimensions L x W (mm):
Code Length Width
32 3.60 ± 0.30 2.60 ± 0.30
45 5.00 ± 0.50 3.50 ± 0.50
57 6.00 ± 0.50 5.00 ± 0.50
Metal Terminal Width
0.80 ± 0.15
1.10 ± 0.30
1.60 ± 0.30

Payment and Shipping:


1, Lead time about 3~5 days.
2, Payment: T/T; Western union; Paypal .
3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect
