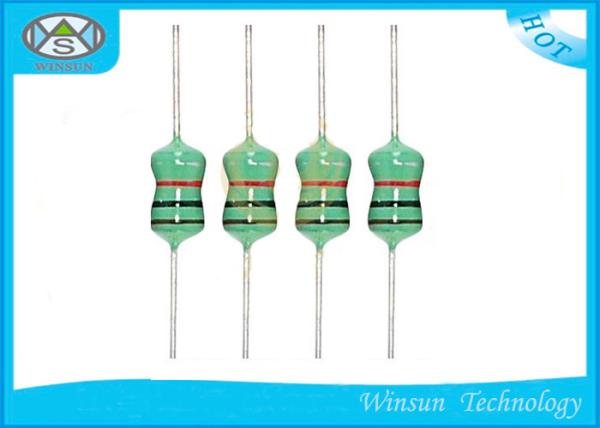

Humidity Resistance Fixed Inductor Compact / Lightweight 0.1-1000uH ROHS
Humidity Resistance Fixed Inductor Compact / Lightweight 0.1-1000uH ROHS
Humidity Resistance Fixed Inductor Compact / Lightweight 0.1-1000uH ROHS
Humidity Resistance Fixed Inductor Compact / Lightweight 0.1-1000uH ROHS
Specifications
Brand Name :
WS
Model Number :
WS-LGA-Ind
Certification :
SGS
Place of Origin :
Shenzhen of China
MOQ :
1000pcs
Price :
Lowest price
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
plastic reel + carton
Product Name :
Color Code Inductor
Inductance :
0.1-1000uH
Size :
0204 , 0307 , 0410 , 0510
Tolerance :
5% , 10% , 20%
Shipping :
By DHL, FEDEX, TNT ,UPS,EMS ect.
Description

Fixed Inductor / High Quality WS-LGA Color Code Series / Rohs Certification Lowest Price

Dimensions
0204 0307 0410 0510

Inductance Range
0.1uH to 1000uH

Tolerance
J=+/-5% K=+/-10% L=+/-15% M=+/-20% P =+/-25% N=+/-30%

Features
Treated with epoxy resin coating for humidity resistance to ensure long life.
Compact and lightweight.
Taping type available for automatic inserter.

Operating temp range: -10 degree C to +85 degree C
Rated Voltage: 250VDC

Primary advantage:
1. Professional and Experienced engineer
2. Qualified material competative price
3. Prompt Delivery anGood after-sale service



Why Choose us:
1. High quality and best services.
2. We have RoHS and REACH, CQC certification.
3. Our company has pass the ISO9001:2008

Payment and Shipping:
1, Lead time about 3~5 days.
2, Payment: T/T; Western union; Paypal .
3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect

Type LGA series
Size LGA0204,LGA0307,LGA0410,LGA0510
Inductance Example: "221"for 220uH
Tolerance "M:±20%, "K":±10% , "J":±5% ( K )
Package 1)T5: Tape/Reel 2)Non T5:Bag in bulk
Other Customized

Humidity Resistance Fixed Inductor Compact / Lightweight 0.1-1000uH ROHS

ELECTRICAL CHARACTERISTICS&TEST CONDITIONS:

LGA0204 Type Nominal Inductance (uH) Tolerance Q (min) RDC (Ω )max Test frequency (MHZ) SRF (MHZ)min Rated Idc (mA)max
LGA0204-R22 0.22 K=10% M=20% J=5% 35 0.40 25.2 150 400
LGA0204-R27 0.27 0.43 380
LGA0204-R33 0.33 0.48 370
LGA0204-R39 0.39 0.51 350
LGA0204-R47 0.47 0.56 330
LGA0204-R56 0.56 0.61 320
LGA0204-R68 0.68 0.67 310
LGA0204-R82 0.82 0.74 290
LGA0204-1R0 1.0 0.80 270
LGA0204-1R2 1.2 40 0.90 7.96 110 260
LGA0204-1R5 1.5 1.0 80 250
LGA0204-1R8 1.8 1.1 60 240
LGA0204-2R2 2.2 2.2 45 230
LGA0204-2R7 2.7 1.3 40 220
LGA0204-3R3 3.3 1.4 38 210
LGA0204-3R9 3.9 1.6 35 200
LGA0204-4R7 4.7 1.7 32 190
LGA0204-5R6 5.6 1.9 30 180
LGA0204-6R8 6.8 2.0 28 175
LGA0204-8R2 8.2 2.2 26 165
LGA0204-100 10 2.5 24 160
LGA0204-120 12 2.5 2.52 22 150
LGA0204-150 15 2.8 20 145
LGA0204-180 18 3.1 18 140
LGA0204-220 22 3.4 17 130
LGA0204-270 27 4.3 16 80
LGA0204-330 33 4.7 14 76
LGA0204-390 39 5.2 13 74
LGA0204-470 47 5.8 12 70
LGA0204-560 56 6.4 11 68
LGA0204-680 68 7.2 10 64
LGA0204-820 82 11.0 9.5 46
LGA0204-101 100 12.0 9.0 44
LGA0204-121 120 13.0 0.796 8.0 42
LGA0204-151 150 16.0 6.0 39
LGA0204-181 180 18.0 5.5 37
LGA0204-221 220 20.0 5.0 35
LGA0307-R22 0.22 K=10% M=20% J=5% 35 0.40 25.2 150 400
LGA0307-R27 0.27 0.43 380
LGA0307-R33 0.33 0.48 370
LGA0307-R39 0.39 0.51 350
LGA0307-R47 0.47 40 0.56 330
LGA0307-R56 0.56 0.61 320
LGA0307-R68 0.68 0.67 310
LGA0307-R82 0.82 0.74 290
LGA0307-1R0 1.0 0.80 270
LGA0307-1R2 1.2 50 0.90 7.96 144 260
LGA0307-1R5 1.5 1.0 131 250
LGA0307-1R8 1.8 1.1 121 240
LGA0307-2R2 2.2 1.2 110 230
LGA0307-2R7 2.7 1.3 100 220
LGA0307-3R3 3.3 1.4 94 210
LGA0307-3R9 3.9 1.6 65 200
LGA0307-4R7 4.7 1.7 56 190
LGA0307-5R6 5.6 1.9 48 180
LGA0307-6R8 6.8 2.0 37 175
LGA0307-8R2 8.2 2.2 25 165
LGA0307-100 10 2.5 21 160
LGA0307-120 12 2.5 2.52 19 150
LGA0307-150 15 2.8 17 145
LGA0307-180 18 3.1 13 140
LGA0307-220 22 3.4 9.6 130
LGA0307-270 27 3.8 7.2 125
LGA0307-330 33 4.1 6.3 120
LGA0307-390 39 4.5 6.3 115
LGA0307-470 47 4.9 6.3 110
LGA0307-560 56 5.3 6.2 105
LGA0307-680 68 5.8 5.7 100
LGA0307-820 82 6.3 5.3 95
LGA0307-101 100 7.0 4.8 90
LGA0307-121 120 13.0 0.796 3.8 90
LGA0307-151 150 15.0 3.5 85
LGA0307-181 180 16.0 3.3 80
LGA0307-221 220 17.0 3.0 75
LGA0307-271 270 19.0 2.8 65
LGA0307-331 330 20.0 2.6 60
LGA0307-391 390 22.0 2.4 55
LGA0307-471 470 24.0 2.25 55
LGA0307-561 560 26.0 2.10 50
LGA0307-681 680 28.0 1.95 45
LGA0307-821 820 30.0 1.85 40
LGA0307-102 1000 33.0 1.40 40
LGA0410-R22 0.22 K=10% M=20% J=5% 45 0.10 25.2 300 1400
LGA0410-R27 0.27 45 0.11 270 1320
LGA0410-R33 0.33 45 0.12 250 1280
LGA0410-R39 0.39 45 0.13 230 1200
LGA0410-R47 0.47 45 0.14 220 1150
LGA0410-R56 0.56 45 0.15 200 1122
LGA0410-R68 0.68 45 0.16 190 1030
LGA0410-R82 0.82 45 10.17 172 980
LGA0410-1R0 1.0 45 0.19 157 920
LGA0410-1R2 1.2 50 0.21 7.96 144 880
LGA0410-1R5 1.5 50 0.23 131 830
LGA0410-1R8 1.8 55 0.25 121 790
LGA0410-2R2 2.2 55 0.28 110 750
LGA0410-2R7 2.7 60 0.30 100 720
LGA0410-3R3 3.3 65 0.34 94 670
LGA0410-3R9 3.9 65 0.37 65 640
LGA0410-4R7 4.7 70 0.39 56 620
LGA0410-5R6 5.6 70 0.43 48 590
LGA0410-6R8 6.8 75 0.48 37 550
LGA0410-8R2 8.2 80 0.52 25 530
LGA0410-100 10 65 0.58 21 500
LGA0410-120 12 50 0.63 2.52 19 480
LGA0410-150 15 50 0.72 17 460
LGA0410-180 18 50 0.77 13 430
LGA0410-220 22 50 0.84 9.6 410
LGA0410-270 27 55 0.94 7.2 390
LGA0410-330 33 55 1.03 6.3 370
LGA0410-390 39 50 1.12 6.3 350
LGA0410-470 47 45 1.22 6.3 340
LGA0410-560 56 40 1.34 6.2 320
LGA0410-680 68 40 1.47 5.7 305
LGA0410-820 82 35 1.62 5.3 290
LGA0410-101 100 30 1.80 4.8 275
LGA0410-121 120 55 3.70 0.796 3.8 185
LGA0410-151 150 45 4.20 3.5 175
LGA0410-181 180 50 4.60 3.3 165
LGA0410-221 220 55 5.10 3.0 155
LGA0410-271 270 65 5.80 2.8 145
LGA0410-331 330 65 6.40 2.6 137
LGA0410-391 390 65 7.00 2.4 133
LGA0410-471 470 60 7.70 2.25 126
LGA0410-561 560 60 8.85 2.10 120
LGA0410-681 680 55 9.40 1.95 113
LGA0410-821 820 55 10.50 1.85 105
LGA0410-102 1000 50 14.00 1.40 100
LGA0510-471 470 K=10% M=20% J=5% 60 7.70 1.9 105
LGA0510-561 560 50 8.50 1.8 100
LGA0510-681 680 55 9.00 1.5 126
LGA0510-821 820 45 10.5 1.2 120
LGA0510-102 1000 45 14.0 1.0 113
LGA0510-122 1200 40 16.0 0.95 105
LGA0510-152 1500 40 21.6 0.90 100
LGA0510-182 1800 40 24.0 0.85 85
LGA0510-222 2200 40 34.7 0.80 80
LGA0510-272 2700 40 40.0 0.75 75
LGA0510-332 3300 40 59.5 0.70 62
LGA0510-392 3900 40 66.0 0.65 59
LGA0510-472 4700 40 74.0 0.60 55
LGA0510-562 5600 30 80.0 0.50 40
LGA0510-682 6800 30 85.0 0.45 35
LGA0510-822 8200 30 95.0 0.40 30
LGA0510-103 10000 20 105.0 0.35 25
