Gold Aluminum Housed​ Braking Wire Wound Power Resistor 25W 10ohm Long Life
Gold Aluminum Housed​ Braking Wire Wound Power Resistor 25W 10ohm Long Life
Gold Aluminum Housed​ Braking Wire Wound Power Resistor 25W 10ohm Long Life
Gold Aluminum Housed​ Braking Wire Wound Power Resistor 25W 10ohm Long Life
Specifications
Brand Name :
WS
Model Number :
WS-GAH-Res-300W
Certification :
SGS
Place of Origin :
Shenzhen of China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
plastic bubble bag + carton
Color :
Gold Color
Material :
Aluminum
Power :
300W
Workding Voltage :
1500V
Resistance range :
0.01 ohm - 75K ohm
Tolerance :
+/-1%; +/-2%;+/-5%;+/-10%
SGS :
ROHS
Description

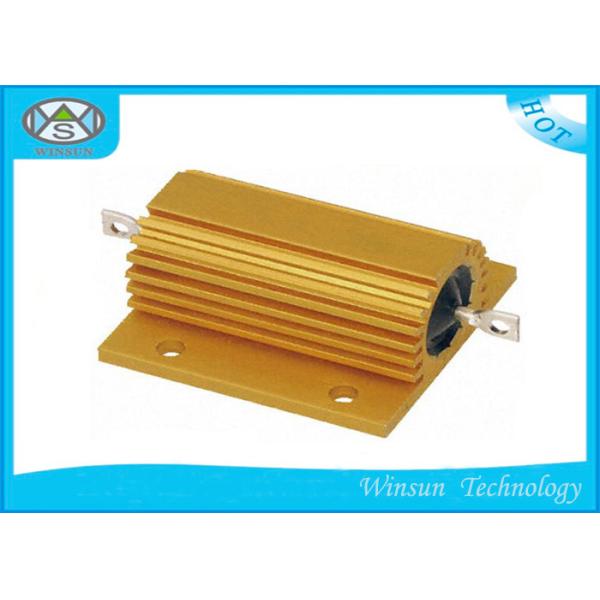

25W 10ohm Long Life Gold Aluminum Housed​ Braking Wire Wound Power Resistor

We also can make uncommon product per customers requirements.

Features:
1, Resistance range: 0.01 ohm - 75K ohm
2, Power: 300W
3, Working Voltage: 1500V
4, Resistance tolerance: ±1%,±2%,±5%,±10%.
5, 100% original

6, Delivery on time

7, Competitive price;

8, Small size, high power load;

9, Suitable for .cooling plate installation, can be used in the rugged environment;

10, High insulating capacity, encapsulation by non-flame inorganic material;

11, Multi connection form will be easily to fix;

12, Firm structure and small volume
13, High-power, high-stability, aluminum radiator
14, Suitable for radiator panels, DC/AC lower frequency circuits
15, Accord with lead-free/RoHS request

16, Temperature coefficient: ±200PPM/°C

17, Experimental temperature: room temperature +100°C

18, Exert DC voltage up to 500V lasts 1 minute, 500V/60 seconds

Temperature: 40 +2°C

Relative humidity: 90 to 95% RH 1 time rated voltage, time 1,000 hours (1.5 hours

drive 0.5 hours closed)

Load life: ± 2.0% 25°C, the temperature: 1 time rated voltage, time 1,000 hours

(1.5 hours drive 0.5 hours closed)

Soldering temperature: 245 +5°C, the time: 2 +0.5 seconds



Applications:

Power Supply

Inverter

Medical Equipment

Burn-in System

Automobile Braking System

Widely used in power supply, transducer, elevator,arena audio and

high requirement equipment industry

etc..


Specifications Performance:

Part No. Power Max Working Voltage Max Loaded Voltage Withstand Voltage
LRX300 300W 1500V 1500V 2200V

Production
name		 Gold Aluminum Housed​ Braking Wire Wound Power Resistor
Power rating 3W-500W
Resistance value 0.1Ω -180KΩ
Resistance tolerance 1%, 5%, 10%

Features		 Aluminum crust surface with good performance in heat radiation, suitable for cooling plate installation, can be used in the atrocious environment Small size and high power load High insulating capacity, encapsulation by non-flame inorganic material, good performance in vibration Multiple connection form will be easily to fix Widely used in power supply, transducer, elevator, arena audio, and high requirement equipment industry

5. For customer specifications, can be made into variable resistor.

Performance

 Test item Test condition
Temperature
coefficient		 ± 200PPM/° C
Load life 1000h 25° C± 2° C

Δ R≤ ± (5%+0.05Ω )
Insulation
resistance		 > 10000MΩ
100 MΩ Min
Vibration
Δ R≤ ± (1%+0.05Ω )
Thermal
shock
Δ R≤ ± (1%+0.05Ω )
Solderability Covered with new solder by 95%
Δ R≤ ± (1%+0.05Ω )
Terminal strength 5W 10W 2.5Kg > 25W. 5kg
Δ R≤ ± (1%+0.05Ω )
Cooperation partner HAVELIS GE OSRAM PHILIP
NOTE 1. For customer specifications, please contact us to discuss the details.
2. Different power rating owning multi weight, dimension and packing.
3. More details, please contact us.


Performance Test:

Test Item Test Condition Performance
Temperature coefficient Test the resistance value at normal temperature added 100℃,calculate per ℃ resistance value rate. ±300ppm/℃
Short time overload According 10 times rated power to account the voltage or max .overload voltage (get the lower)for 5 seconds. ΔR≤±(2%R0+0.05Ω)
Resistance to soldering heat Immerge into the 350±10℃ tin stove for 2~3 seconds. ΔR≤±(1%R0+0.05Ω)
Solderability Immerge into the 245±3℃ tin stove for 2~3 seconds. The area of soldering is over 95%
Temperature cycling At -55℃ for 30 min,then at +25℃ for 10~15 min,then at +275℃ for 30 min,then at +25℃ for 10~15min, total 5 cycles. ΔR≤±(1%R0+0.05Ω)
Load life in humidity Overload rated voltage or Max. working voltage(get the lower) for 1000 hours (1.5 hours on and half-hours off) at the 40±2℃ and 90~95% relative humidity. ΔR≤±(5%R0+0.05Ω)
Load life in heat Overload rated voltage or Max. working voltage(get the lower)m for 1000 hours (1.5 hours on and half-hours off) at the 70±2℃. ΔR≤±(5%R0+0.05Ω)
Terminal strength Pull:10N ΔR≤±(2%R0+0.1Ω)
Vibration Frequency:10~55Hz,Swing:0.75mm,Test time:6Hours ΔR≤±(2%R0+0.1Ω)
Nonflammability Respectively load AC voltage by5,10,16 times rated power for 5 mi
