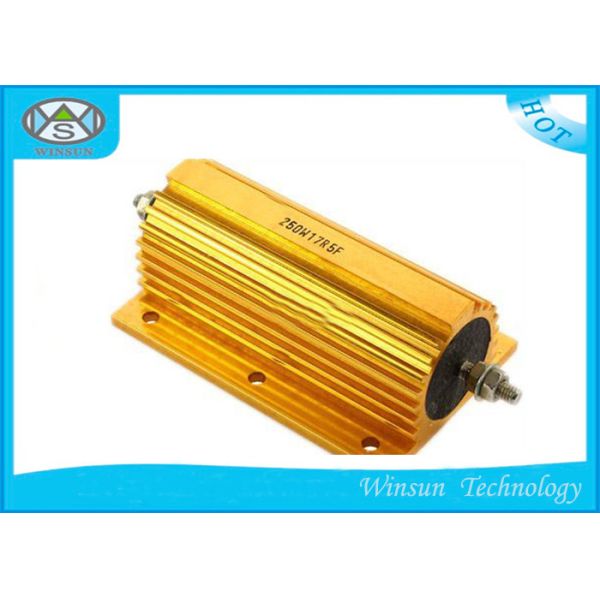

250W Wire Wound Power Resistor 0.01ohm - 68K Ohm Gold With Aluminum Housed​ Coiling
250W Wire Wound Power Resistor 0.01ohm - 68K Ohm Gold With Aluminum Housed​ Coiling
250W Wire Wound Power Resistor 0.01ohm - 68K Ohm Gold With Aluminum Housed​ Coiling
250W Wire Wound Power Resistor 0.01ohm - 68K Ohm Gold With Aluminum Housed​ Coiling
Specifications
Brand Name :
WS
Model Number :
WS-GAH-Res-250W
Certification :
SGS
Place of Origin :
Shenzhen of China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
plastic bubble bag + carton
Color :
Gold Color
Material :
Aluminum
Power :
250W
Workding Voltage :
1000V
Resistance range :
0.01 ohm - 68K ohm
Tolerance :
+/-1%; +/-2%;+/-5%;+/-10%
Life :
Long life
Description

250W 0.01ohm - 68K ohm High Resistance Gold Aluminum Housed​ Coiling Wire Wound Power Resistor

We also can make uncommon product per customers requirements.

Features:

Aluminum crust surface with good performance in heat radiation, suitable for cooling plate installation, can be used in the atrocious environment.

High capacity, encapsulation by non-flame inorganic Material, good performance in vibration.

Multi connection form will be easily to fix.

High power and rugged,shock-proof
Good heat-sink
Low TCR,and good linearity


1, Resistance range: 0.01 ohm - 68K ohm
2, Power: 250W
3, Working Voltage: 1200V
4, Resistance tolerance: ±1%,±2%,±5%,±10%.
5, 100% original

6, Delivery on time

7, Competitive price;

8, Small size, high power load;

9, Suitable for .cooling plate installation, can be used in the rugged environment;

10, High insulating capacity, encapsulation by non-flame inorganic material;

11, Multi connection form will be easily to fix;

12, Firm structure and small volume
13, High-power, high-stability, aluminum radiator
14, Suitable for radiator panels, DC/AC lower frequency circuits
15, Accord with lead-free/RoHS request


Applications:

Power Supply

Inverter

Medical Equipment

Burn-in System

Automobile Braking System

Widely used in power supply, transducer, elevator,arena audio and

high requirement equipment industry etc..


Specifications Performance:

Part No. Power Max Working Voltage Max Loaded Voltage Withstand Voltage
LRX250 250W 1200V 1200V 1800V

Description Power Tolerance Range

LRX
Gold Aluminum Housed Wire-wound Resistors

 250W ±1% ±5% ±10% 0.01R-68K

TRX
Trapezium Aluminum Housed Wire-wound Resistors

40W 60W 80W 100W
120W,150w,200w,300w,400w,500w,600w,800w,1000w

 ±1% ±5% ±10% 1R-100K

CRX
Boat Type Aluminum Housed Wire-wound Resistors

 50W 100W 150W ±1% ±5% ±10% 1R-100K



Performance Test:

Test Item Test Condition Performance
Temperature coefficient Test the resistance value at normal temperature added 100℃,calculate per ℃ resistance value rate. ±300ppm/℃
Short time overload According 10 times rated power to account the voltage or max .overload voltage (get the lower)for 5 seconds. ΔR≤±(2%R0+0.05Ω)
Resistance to soldering heat Immerge into the 350±10℃ tin stove for 2~3 seconds. ΔR≤±(1%R0+0.05Ω)
Solderability Immerge into the 245±3℃ tin stove for 2~3 seconds. The area of soldering is over 95%
Temperature cycling At -55℃ for 30 min,then at +25℃ for 10~15 min,then at +275℃ for 30 min,then at +25℃ for 10~15min, total 5 cycles. ΔR≤±(1%R0+0.05Ω)
Load life in humidity Overload rated voltage or Max. working voltage(get the lower) for 1000 hours (1.5 hours on and half-hours off) at the 40±2℃ and 90~95% relative humidity. ΔR≤±(5%R0+0.05Ω)
Load life in heat Overload rated voltage or Max. working voltage(get the lower)m for 1000 hours (1.5 hours on and half-hours off) at the 70±2℃. ΔR≤±(5%R0+0.05Ω)
Terminal strength Pull:10N ΔR≤±(2%R0+0.1Ω)
Vibration Frequency:10~55Hz,Swing:0.75mm,Test time:6Hours ΔR≤±(2%R0+0.1Ω)
Nonflammability Respectively load AC voltage by5,10,16 times rated power for 5 mi
