R22 150KW 30 Ton 220 Volt Block Ice Maker Machine
R22 150KW 30 Ton 220 Volt Block Ice Maker Machine
R22 150KW 30 Ton 220 Volt Block Ice Maker Machine
R22 150KW 30 Ton 220 Volt Block Ice Maker Machine
R22 150KW 30 Ton 220 Volt Block Ice Maker Machine
R22 150KW 30 Ton 220 Volt Block Ice Maker Machine
R22 150KW 30 Ton 220 Volt Block Ice Maker Machine
R22 150KW 30 Ton 220 Volt Block Ice Maker Machine
R22 150KW 30 Ton 220 Volt Block Ice Maker Machine
R22 150KW 30 Ton 220 Volt Block Ice Maker Machine
R22 150KW 30 Ton 220 Volt Block Ice Maker Machine
R22 150KW 30 Ton 220 Volt Block Ice Maker Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Yixing ICS
Certification :
ce
Supply Ability :
50 Set/Sets per Quarter
Packaging Details :
Wood cases in standard container or less than container load.Each set is wrapped in plywood case and transport in standard container.
MOQ :
1 - 2 Sets
Price :
$84,500.00
Ice Shape :
ICE BLOCK
Ice storage capacity :
Other
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertis
After Warranty Service :
Video technical support, No service, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
Egypt, Canada, Turkey, United States, Italy, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria,
Showroom Location :
None
Condition :
New
Voltage :
220V/380V
Power :
150 kw
Dimension(L*W*H) :
15700*3000*2785 mm (Customized)
Weight :
23390 kg
Warranty :
1 Year
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Key Selling Points :
Automatic
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Product name :
Direct System Ice Block Making Machine
Application :
Fresh-keeping
Compressor :
Germany Bitzer
Refrigerant :
R404a/R22
Material :
Stainless Steel 304
Cooling way :
Evaporative Cooling
Control system :
Automatic Control System
Ice size :
5-50 KG
Expansion valve :
Danmark - Danfoss Brand
Keyword :
Ice Block Making Machine
Port :
Shanghai
Description
Yixing ICS Direct System 30 T/Day Ice Block Making Machine with High Efficiency from China Manufacture
Product Description

R22 150KW 30 Ton 220 Volt Block Ice Maker Machine

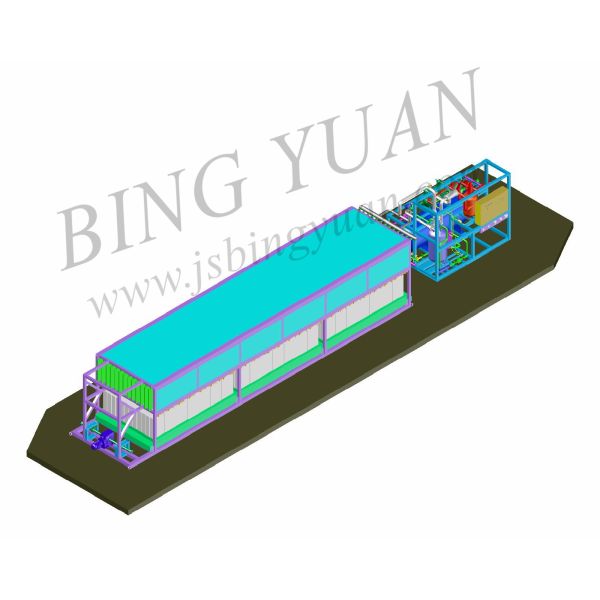

Direct System Block Ice Machine BYB-300D

The direct refrigeration block ice machine adopts food-grade aluminum alloy plate as evaporator material, only though a water feeding valve, the water is filled into the ice cans automatically, no any chemical residues during ice making process. Block ice is kept far away from any pollution, especially produce high quality ice block, which is sanitary and suitable for eating purpose and cooling purpose.This direct block ice maker produces blocks in a few hours, which means that the space requirements are reduced considerably.

Working principle:
Yixing ICS direct system block ice machine adopts edge-leading refrigeration industry technology.

1. After direct heat exchange between refrigerant and water, in 5 to 8 hours, water is frozen out into ice.

2. By that time, PLC controls the machine automatically into ice doffing process.

3. Direct system utilizes hot Freon to defrost ice; so the defrosting process is fast.

R22 150KW 30 Ton 220 Volt Block Ice Maker Machine

Model Daily Capacity Refrigerant Electricity Consumption Install Power Operating Weight Size(L*W*H)
BYB-300D 30T R22/R404A 113.55 kw 150 kw 23390 kg 15700*3000*2785 mm(Customized)

Block Ice Application:

a.Ice factory

b.Fresh preservation

c.Ice engraving;

d.Edible ice
R22 150KW 30 Ton 220 Volt Block Ice Maker Machine

Aluminum evaporator adopts special technique to make sure the ice conforms to food grade standards

In other words, the ice can be directly consumed

Besides saving labor work and electricity consumption, its unique modular design saves much floor area than traditional brine system block ice machine.

R22 150KW 30 Ton 220 Volt Block Ice Maker Machine

Main Features

1) The evaporator adopts special aluminum alloy plate which is more durable and meets food hygiene requirements.

2) Ice thawing and ice doffing are fully automatic therefore no manual work is needed, 1 person is enough.

3) The ice is doffed by batch and the whole ice doffing process only takes 25 minutes.

4) The whole batch ice blocks can be moved by forklift, or designed with ice moving out device, quick and convenient.

R22 150KW 30 Ton 220 Volt Block Ice Maker Machine

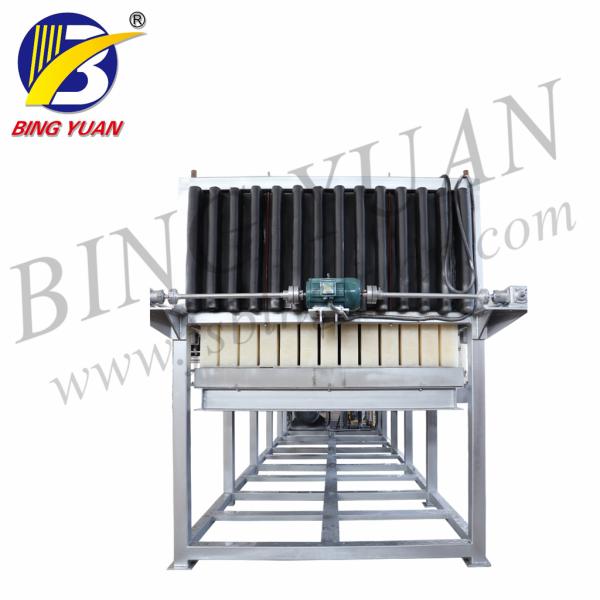

Detailed Images

R22 150KW 30 Ton 220 Volt Block Ice Maker Machine

Forklift Ice Moving Device

Original "mobile ice holding plate design", shovel whole ice holding plate out with forklift, each process takes about 3 minutes, saving 90% labor and time to a great extend, highest degree of automation.

Hydraulic System+Wire Rope Hoisting

Advantages of hydraulic system:

Save more space

Lower noise

Long service life

Small friction

Good balance

 R22 150KW 30 Ton 220 Volt Block Ice Maker Machine
R22 150KW 30 Ton 220 Volt Block Ice Maker Machine

Automatic characters

Add water automatically
Make ice automatically
Doff ice automatically
Move ice automatically

Below is main specification of this 30 tons daily direct system block ice machine:


Power supply: 380V/3P/50Hz (customized)

Refrigerant: R404A/R22

Weight of each block ice: 50kg/25kg (customized)

Cooling mode: Water Cooling/Evaporative Cooling

Ice doffing time: 25 minutes

Need person to operate: 1 person is enough, fully automatic

Compressor brand: Germany Bitzer

Solenoid Valve brand: Denmark Danfoss

Programmable logic controller: Germany Siemens (tailor-made performance)

Electric parts brand: France Schneider

R22 150KW 30 Ton 220 Volt Block Ice Maker Machine

Certifications

R22 150KW 30 Ton 220 Volt Block Ice Maker Machine

Packaging & Shipping

R22 150KW 30 Ton 220 Volt Block Ice Maker Machine R22 150KW 30 Ton 220 Volt Block Ice Maker Machine

Our Services

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas
Company Information

Yixing city Ice Source Refrigeration Equipment Limited is a comprehensive modern manufacture of all kinds of ice-making plants, cold room, high-efficiency cold air blower, energy-saving evaporative condenser, aluminum alloy pipe row, and various civil constructions, combined with cold room engineering.

ICS is located in Yixing, Wuxi, Jiangsu, CHINA. With over 20 year's successful experience in the Chinese market, we focus on technical innovation to improve the machine quality and strengthen innovation ability. By insisting on the spirit "unity, seeking the truth, pioneering and dedication", we commit ourselves to research and development of new technology, striving to create a comprehensive refrigeration enterprise in China.
