380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine
380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine
380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine
380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine
380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine
380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine
380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine
380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine
380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine
380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine
380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine
380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Yixing ICS
Certification :
ce
Supply Ability :
50 Set/Sets per Quarter
Packaging Details :
Wood cases in standard container or less than container load.Each set is wrapped in plywood case and transport in standard container.
MOQ :
1 - 2 Sets
Price :
$61,000.00
Ice Shape :
ICE BLOCK
Ice storage capacity :
Other
Applicable Industries :
Hotels, Restaurant, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertis
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea
Showroom Location :
None
Condition :
New
Voltage :
220/380V customzied
Power :
All available
Dimension(L*W*H) :
10400*2500*2900mm
Weight :
8000kg
Warranty :
1 Year
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Key Selling Points :
Automatic
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Core Components :
Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Compressor :
Bock/Bitzer
Expansion valve :
Denmark Brand Danfoss
Cooling way :
Water/Evaporative cooling
Control system :
Automatic Control System
Material :
SUS304 Staineless Steel
Ice Machine Type :
Direct Freezing Block Ice Machine
Ice weight :
5-50 kg customzied
Freezing time :
4-10 h
Product name :
Direct System Block Ice Machine
Keyword :
Block Ice Machine
Port :
Shanghai
Description
High Quality and Cheap Price 30 ton Direct System Block Ice Machine
Product Description

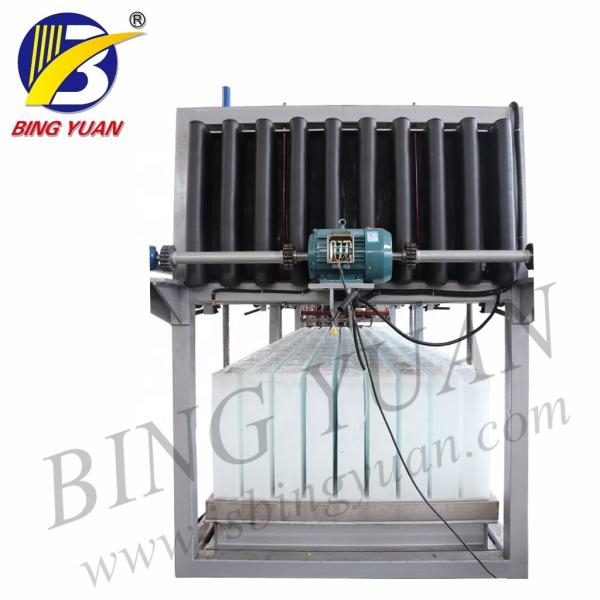

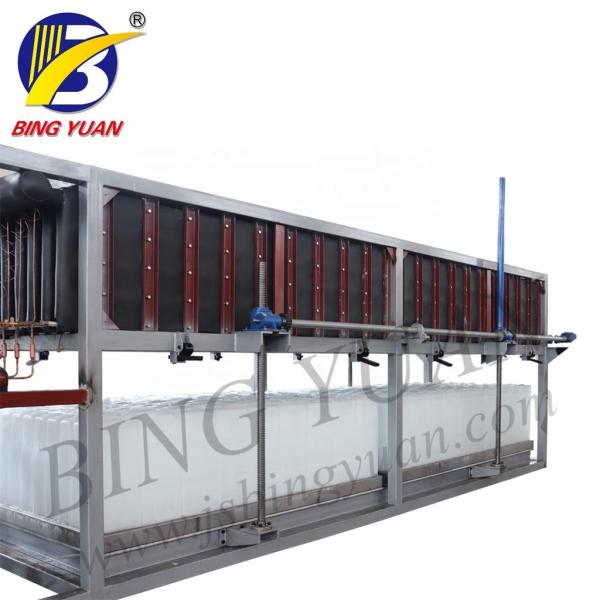

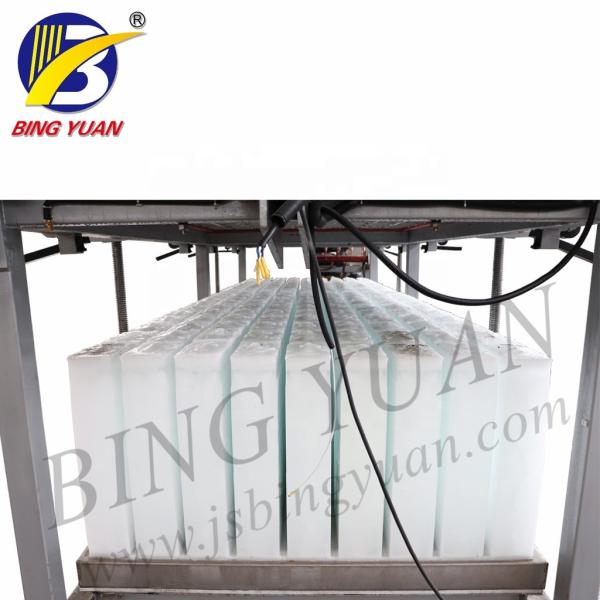

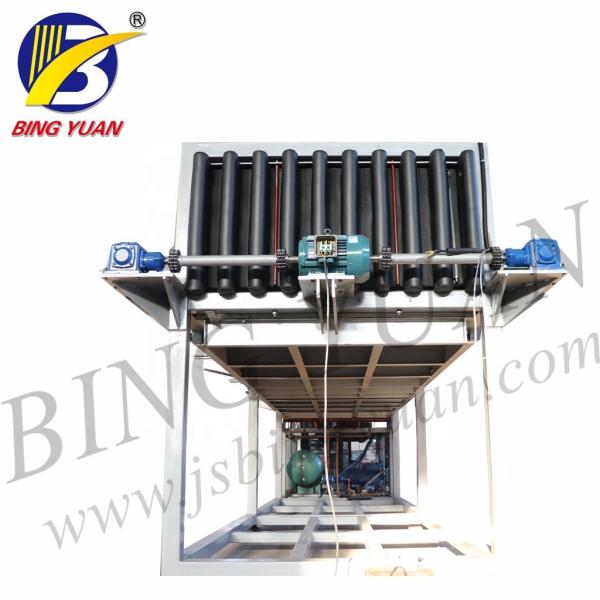

380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine

Direct System Block Ice Machine BYB-300EH

The direct block ice machine adopts a food-grade aluminum alloy plate as evaporator material, only though a water feeding valve, the water is filled into the ice cans automatically, no chemical residues during the ice-making process. Block ice is kept far away from any pollution, especially produce quality ice block, which is sanitary and suitable for eating purpose and cooling purposes.This direct block ice maker produces blocks in a few hours, which means that the space requirements are reduced considerably.
380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine

Working principle:
Yixing ICS direct system block ice machine adopts edge-leading refrigeration industry technology.

1. After direct heat exchange between refrigerant and water, in 5 to 8 hours, water is frozen out into ice.

2. By that time, PLC controls the machine automatically into ice doffing process.

3. Direct system utilizes hot Freon to defrost ice; so the defrosting process is fast.

Model
Daily capacity
Refrigerant
Electricity consumption
Install power
Operating weight
Size(L*W*H)
BYB
30TON
R22/R404A
65KW/TON
100KW
10TON
Customized

Main Features

1) The evaporator adopts a special aluminum alloy plate which is more durable and meets food hygiene requirements.

2) Ice thawing and ice doffing are automatic therefore no manual work is needed, 1 person is enough.

3) The ice is doffed by batch and the whole ice doffing process only takes 25 minutes.

4) The whole batch ice blocks can be moved by forklift, or designed with ice moving out a device, quick and convenient.
380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine

Block Ice Application

a.Ice factory
b.Fresh preservation
c.Ice engraving;
d.Edible ice
380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine

Aluminum evaporator adopts special technique to make sure the ice conforms to food grade standards

In other words, the ice can be directly consumed

Besides saving labor work and electricity consumption, its unique modular design saves much floor area than traditional brine system block ice machine

Detailed Images

Forklift Ice Moving Device

Original "mobile ice holding plate design", shovel whole ice holding plate out with forklift, each process takes abut 3 minutes, saving 90% labor and time to a great extend, highest deree of automation.

380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine

HYDRAULIC SYSTEM+WIRE ROPE HOISTING
Advantages of hydraulic system:
Save more space
Lower noise
Long service life
Small friction
Good balance
380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine

Automatic characters

Add water automatically
Make ice automatically
Doff ice automatically
Move ice automatically
380V 50KG 30 Ton Block Ice Maker Machine , Clear Block Ice Machine

Below is the main specification of this 10-ton daily direct system block ice machine:

Power supply: 380V/3P/50Hz (Customized)

Refrigerant: R404A/R22

Weight of each block ice: 50kg(customized)
Cooling mode: Evaporative cooling
Ice doffing time: 25 minutes
Need a person to operate: 1 person is enough, Automatic
Compressor brand: Germany Bitzer
Solenoid Valve brand: Denmark Danfoss
Programmable logic controller: Germany
Siemens (tailor-made performance)
Electric parts brand: France Schneider
