Abrasion Wet Wheel Tracking Equipment Leakage Test Standard IEC60112 7 Inch Touch Screen Control

Introduction:

The tracking index tester is in accordance with GB4207, IEC60112 standards. It is suitable for lighting, low voltage electrical equipment, household appliances, electrical machines, motors, power tools, electronic equipment , electrical instruments. It also applies for insulation, plastic, electrical connectors, accessories industry.
Method for the determination of the proof and the comparative tracking indices of solid insulating materials. It is simple, accurate, reliable, and practical features.

Principle:

On the surface of solid insulating material, between two platinum electrode(2mm*5mm), a voltage is applied, and Timing (30s) set height (35mm) conductive liquid droplet volume dropping the provisions of (0.1% NH 4 CL ), to evaluate the solid insulating material surface leakage resistance performance under wet or contaminated medium electric and combined effects measured for comparative tracking index (CT1) and resistance to tracking index (PT1).

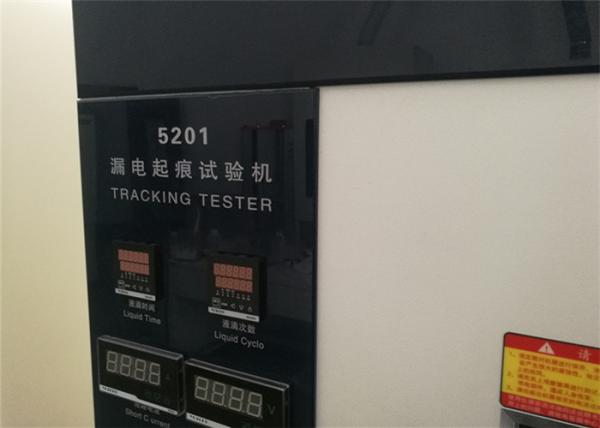

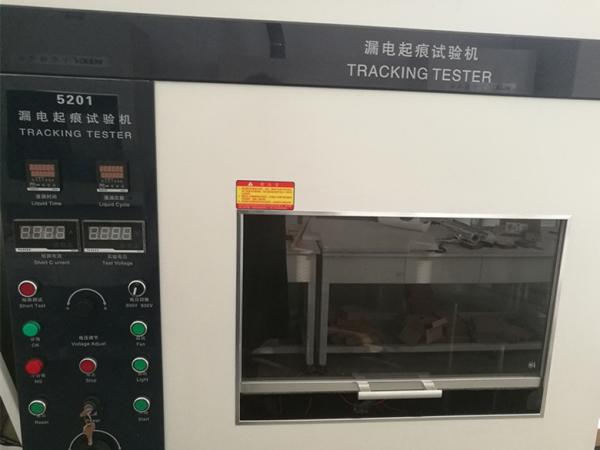

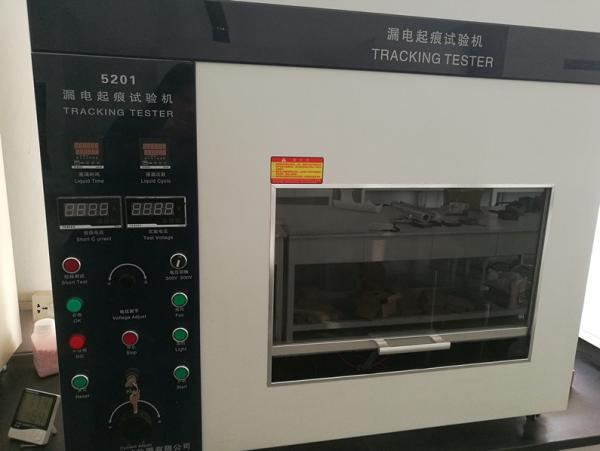

5201A electric leakage mark tester

Model:5201A

Accord with standard:GB4207 IEC60112

Technology Data:

1.) controller:7 inch programmable controller

2.) electrical pressure display:digital voltmeter

3.) electrical current display:digital current meter

4.) dimensions:1120w*600d*1020h

5.) inner volume: ≥0.5cubic

6.) electrode material:platinum

7.) electrode size:2*5*35mm

8.) electrode pressure:1.00N

9.) electrode distance:4.0mm

10.) drop volume:50 drop/1cubic meter

11.) drop height:35mm (can be adjustable)

12.) drop time:30s+-0.1(can be setted)

13.) drop number:1~9999(can be setted)

14.) test voltage:50v~600v(can be adjustable)

15.) power supply voltage drop:1.0A+-0.1A<8%

16.) mark judgment:0.5A+-0.05A

Features:

1.) 7 inch touch screen control system

2.) digital display voltmeter

3.) digital display current meter

4.) imported micro drop pump

5.) liquid drop time and volume control precision

6.) test qualifid ,inqualified judgment function

7.) door open/close protect system

8.) overvoltage protect system

9.) full operation protect system

10.) tempered glass window

Main configure:

1.) standard electrode *1

2.) imported micro pump *1

3.) explosion prevent tempered glass *2

4.) standard liquid *1

5.) standard ruler *1

​
