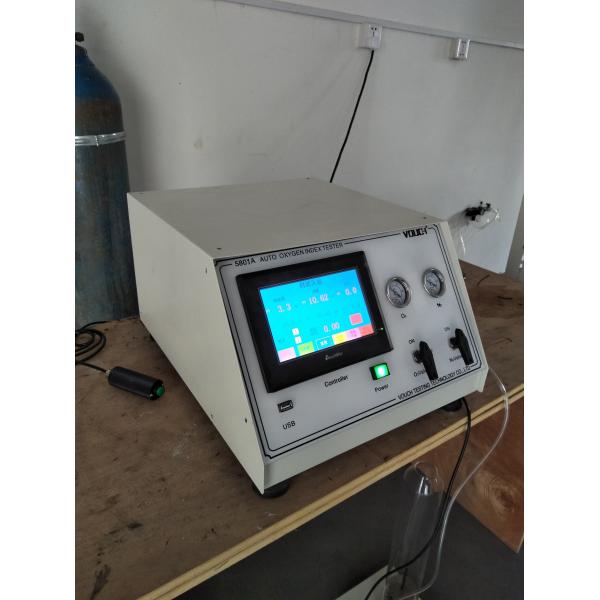

Limited Oxygen Index Tester with Standard ISO4598-2 For Fire Resistance Test Instrument

Equipment description:

Requirements for the assessment of polymer in the combustion performance test conditions, that determine the

polymer just to maintain the minimum combustion volume percentage of oxygen concentration. For plastic,

rubber, fiber, foam, film, and film and other materials, determination of combustion performance. Microcomputer

control, LCD display, data print, easy to operate, elegant appearance.

Application:

Limited Oxygen Index Test Apparatus is designed according to ISO4598-2 , it applies to analysis the minimum oxygen concentration needed to maintain combustion of the sample when the sample is under the test conditions specified in oxygen and nitrogen mixed gas;

This tester is installed with England imported oxygen sensor, and automatic control the oxygen and nitrogen flow with mass flow control meter. It is very easily and quickly to operate; It is used for evaluating homogeneity of solid materials, laminates, foam, film and thin film in the specified conditions of flammability.

Suitable for the determination of combustion properties of plastics, rubber, fiber, foam, film and film and textile materials, measuring the minimum oxygen concentration that will support combustion. The test specimens are burned in a precisely controlled atmosphere of nitrogen and oxygen .

Main configure:

1.) Portable ignition device

2.) Handheld point guns

3.) High temperature resistant quartz glass

4.) Flame height gauge

5.) Control host

Model:5801A

Accord with standard:GB/T 2406.2-2009

GB/T 5454

ISO 4589-2-2006

ASTM D2863

NES 714

Technology data:

1.) test range:0~100%

2.) working pressure:0.05-0.3Mpa

3.) height of combustion tube:500mm

4.) inner diameter of combustion tube:76mm

5.) Limit flow hole at the top of the combustion tube: Φ 40mm.

6.) Resolution:0.1%

7.) Test precision:+-0.2%

8.) Response time:<200ms

9.) Steady time:<5s

10.) Outter Size:600*520*600

11.) Weight:30kg

Features of machine:

1.) Color programmable controller, directly set the oxygen concentration

2.) Imported paramagnetic oxygen sensor, without the need to replace, long-term use to save costs

3.) Oxygen, nitrogen, trace proportional valve control, high accuracy, no deviation

4.) USB data print interface, test data can be directly generated EXCEL format

5.) Pedal type test procedure control, complete all the test independently

6.) Equipped with high temperature and one time shaped quartz glass tube

7.) Equipped with supporting and non supporting specimen holder

8.) Equipped with internal control ignition and hand-held torch two ignition methods
