Glow Wire Smoke Density Test Apparatus Plastic Material Combustion Test Stainless Steel
Glow Wire Smoke Density Test Apparatus Plastic Material Combustion Test Stainless Steel
Glow Wire Smoke Density Test Apparatus Plastic Material Combustion Test Stainless Steel
Glow Wire Smoke Density Test Apparatus Plastic Material Combustion Test Stainless Steel
Glow Wire Smoke Density Test Apparatus Plastic Material Combustion Test Stainless Steel
Glow Wire Smoke Density Test Apparatus Plastic Material Combustion Test Stainless Steel
Glow Wire Smoke Density Test Apparatus Plastic Material Combustion Test Stainless Steel
Glow Wire Smoke Density Test Apparatus Plastic Material Combustion Test Stainless Steel
Specifications
Brand Name :
VOUCH
Model Number :
5112
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1SET
Price :
NEGOTIABLE
Payment Terms :
TT
Supply Ability :
20SETS PER MONTH
Delivery Time :
32DAYS
Packaging Details :
STANDARD EXPORT PACKAGE
MATERIAL :
SUS304STAINLESS STEEL
PRODUCT :
GLOW WIRE TESTER
PRICE :
NEGOTIABLE
PACKAGE :
STANDARD EXPORT PACKAGE
STANDARD :
IEC60695
WARRANTY :
1YEAR
Description

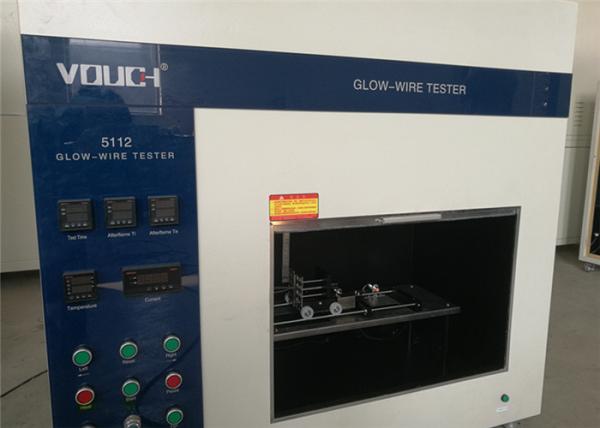

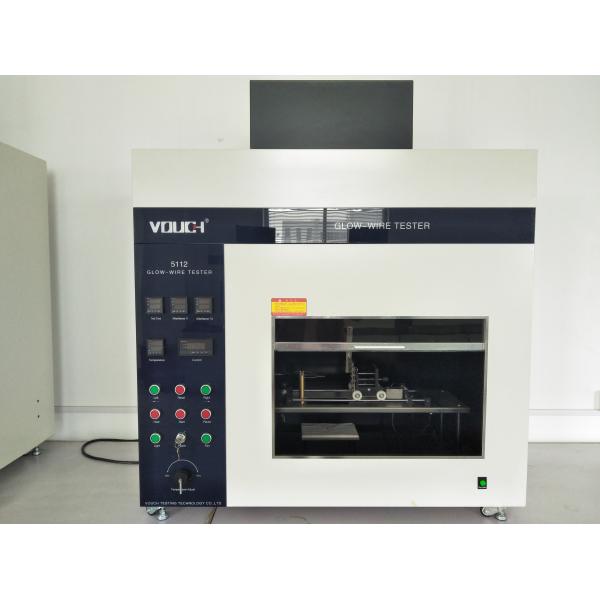

Flammability Test Apparatus Of Glow Wire Tester For Plastic Material Combustion Test

Model:5112

Technical data:

1.)Accord with standard:GB5169,IEC60695

2.)Size:1120w*600d*1020h

3.)Glow wire: Φ4mm Ni/Cr(80/20)
4.)thermocouple: Φ0.5mm K style
5.)heating temperature: 50℃ ～1050 ℃
6.)test pressure of test sample :1.0N+-0.1N
7.)move speed of test sample:10mm/s~25mm/s(front back independent speed)
8.)burning time:0.01s~99.99s(can set)
9.)risetime:0.01s~99.99s
10.)hold burning time:0.01s~99.99s
Feathers of machine:
1.) digital display instrument control system
2.) import control component
3.) PLC+stepper motor
4.) Good quality stainless steel special clamp
5.) One-touch timing device
6.) Advanced temperature controlling system and temperature testing system
7.) Armoured glass window
CHAMBER SIZE

1120w*600d*1020h
STANDARD
IEC60695
SAMPLE SIZE
100*100MM
Glow wire
Φ4mm Ni/Cr(80/20)
Glow Wire Smoke Density Test Apparatus Plastic Material Combustion Test Stainless SteelGlow Wire Smoke Density Test Apparatus Plastic Material Combustion Test Stainless SteelGlow Wire Smoke Density Test Apparatus Plastic Material Combustion Test Stainless Steel
