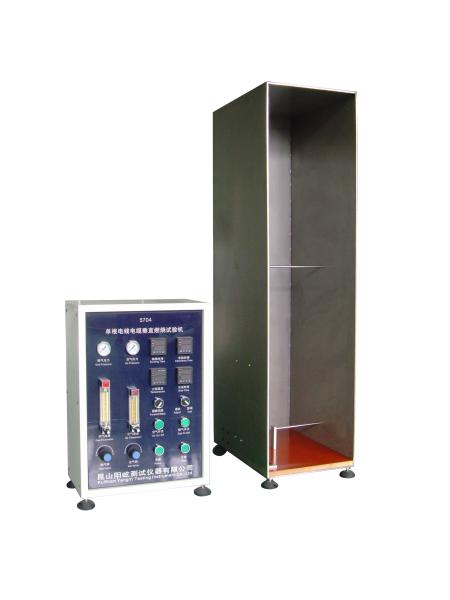

Smoke Density Vertical Burn Test Standard IEC60332 Model 5704 220v 0 - 45degree
Smoke Density Vertical Burn Test Standard IEC60332 Model 5704 220v 0 - 45degree
Smoke Density Vertical Burn Test Standard IEC60332 Model 5704 220v 0 - 45degree
Smoke Density Vertical Burn Test Standard IEC60332 Model 5704 220v 0 - 45degree
Smoke Density Vertical Burn Test Standard IEC60332 Model 5704 220v 0 - 45degree
Smoke Density Vertical Burn Test Standard IEC60332 Model 5704 220v 0 - 45degree
Smoke Density Vertical Burn Test Standard IEC60332 Model 5704 220v 0 - 45degree
Smoke Density Vertical Burn Test Standard IEC60332 Model 5704 220v 0 - 45degree
Specifications
Brand Name :
vouch
Model Number :
5704
Certification :
ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
30SETS PER MONTH
Delivery Time :
within 30days
Packaging Details :
wooden case
ModelNo :
5704
Power :
220v
Standard :
IEC60332
Delivery :
30days
Package :
Standard export wooden box
Material :
304stainless steel
Description

Single wire cable vertical combustion test

Feature:

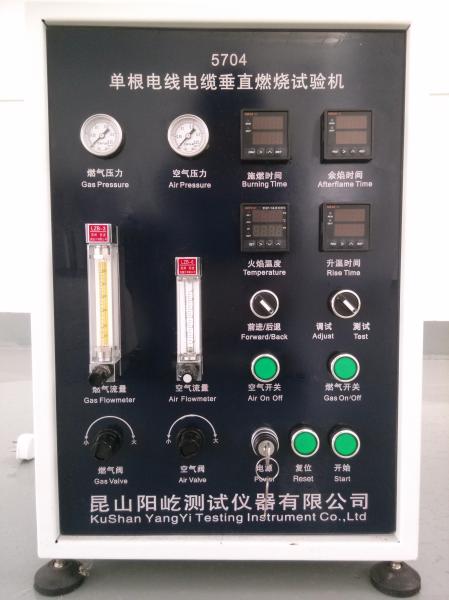

  1. import time and temperature controller,digital display and box separat designed
  2. 2mm stainless steel molding by numerically control ,beautiful,durable
  3. Special used burner and clamp ,complete in accord with standard requirement
  4. Pneumatic type motor control,no need man operate

Technical data:

  1. Model:5704
  2. Execute standard:GB18380.11
  3. Test area size(mm) :320w*470d*1200h
  4. Flame height adjust:10-250mm
  5. Propane flow adjust: 100-1000l mm/min
  6. Air flow: 1-10l/min
  7. Flame temperature test: max1050degree
  8. Temperature rise timing:0-99h 59m 59.9s
  9. Flame angle adjust:0-45degree
  10. Application combustion time adjust range:0-99.99s
  11. Application combustion resolution:0.01s
  12. Temperature rise resolution:0.1s

Choose configure: 18380.21 burnr and test fuction

Model 5704
Test area size 320w*470d*1200h
Temperature rise timing

0-99h 59m 59.9s
Flame height adjust

10-250mm
Air flow

1-10l/min

Smoke Density Vertical Burn Test Standard IEC60332 Model 5704 220v 0 - 45degreeSmoke Density Vertical Burn Test Standard IEC60332 Model 5704 220v 0 - 45degreeSmoke Density Vertical Burn Test Standard IEC60332 Model 5704 220v 0 - 45degreeSmoke Density Vertical Burn Test Standard IEC60332 Model 5704 220v 0 - 45degree
