Specifications
Brand Name :
VOUCH
Model Number :
5321
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1SET
Price :
NEGOTIABLE
Payment Terms :
TT
Supply Ability :
24SETS PER MONTH
Delivery Time :
32DAYS
Packaging Details :
STANDARD EXPORT PACAKGE
MATERIAL :
SUS304STANLESS STEEL
PACAKGE :
STANDARD EXPORT PACKAGE
DELIVERY :
30DAYS
WARRANTY :
1YEAR
PRODUCT :
LARGE HANGING FABRIC COMBUSTION TESTER
PRICE :
NEGOTIABLE
Description

Large hanging fabric combustiopn tester

Description :It is mainly used for the determination of flame retardant properties of fabrics with flame retardant requirements or other materials used for curtains, draperies or Windows.

Model:5321

Feature :

  1. chamber is made of sus304 stainless steel ;
  2. colour touchable screen control system;
  3. auto control during test operation;
  4. flame height can be adjust

Technical data:

  1. ignitor timing : 0 ～99.99s can be setted ,standard 45s;
  2. after flame time: 0 ～999.9s;
  3. measurement device of flame height :ruler height100±10mm;
  4. gas:purity at least 97%.

5.size of sample holder:190×9×9(mm)3;

6.work power:AC220v；50Hz；50W;

7.size of chamber:500×675×700(mm)3;

8.weight:40Kɡ

Standard :

NFPA 701-2004 of textile products and filmy combustion test.

Accessory:

1.handhold ignitor :1piece

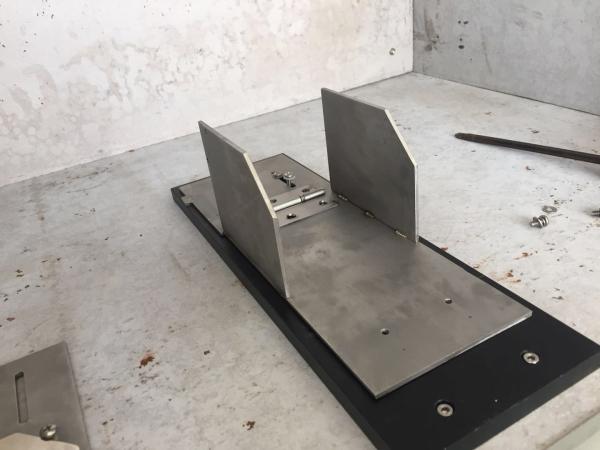

2.smaple fixturer:1piece

3.flame ruler:1piece

4.pipe:1 piece

after flame time 0 ～999.9s
work power AC220v；50Hz；50W
size of chamber 500×675×700(mm)3
weight

40Kɡ
