220V Economic Salt Spray Corrosion Resistance Testing Chamber Salt Fog test Machine
220V Economic Salt Spray Corrosion Resistance Testing Chamber Salt Fog test Machine
220V Economic Salt Spray Corrosion Resistance Testing Chamber Salt Fog test Machine
220V Economic Salt Spray Corrosion Resistance Testing Chamber Salt Fog test Machine
220V Economic Salt Spray Corrosion Resistance Testing Chamber Salt Fog test Machine
220V Economic Salt Spray Corrosion Resistance Testing Chamber Salt Fog test Machine
220V Economic Salt Spray Corrosion Resistance Testing Chamber Salt Fog test Machine
220V Economic Salt Spray Corrosion Resistance Testing Chamber Salt Fog test Machine
Specifications
Brand Name :
YUYANG
Model Number :
YYZ030
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000/set
Delivery Time :
30 days
Packaging Details :
Wooden box package
Internal Dimension W*H*D(mm) :
1200*1000*500mm
External Dimension W*H*D(mm) :
2050*1250*1400mm
Lab Capacity(L) :
108
Saline Capacity(L) :
15
Enter./Inter.Material :
P.V.C&P.P
Compressed Air Pressure(kgf) :
1.0-6.0
Weight(kg) :
68
Power Source :
220V 60/50HZ
Description

220V Economic Salt Spray Corrosion Resistance Testing Chamber Salt Fog test Machine

Applications:
Salt spray corrosion test chamber is specially designed to test the corrosion erosion ability of products whose material surface has been treated by electroplating.
The corrosion resistance of products whose material surfaces have been treated with anti-corrosion treatments such as electroplating, anodizing, spraying, rust-proof oil, and
products after anodic oxidation treatment, spraying, rust-proof oil and other anti-corrosion treatments.

Specification

Internal Dimension W*H*D(mm) 1200*1000*500mm
External Dimension W*H*D(mm) 2050*1250*1400mm
Lab Capacity(L) 108
Saline Capacity(L) 15
Enter./Inter.Material P.V.C&P.P
Compressed Air Pressure(kgf) 1.0-6.0
Weight(kg) 68
Power Source

220V 60/50HZ


Structure:

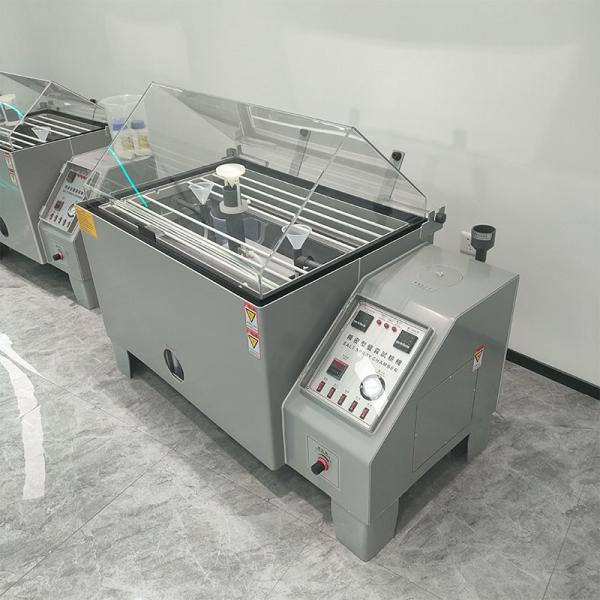

1. The Salt Spray and Salt Fog Corrosion Test Chamber cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow.
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.

Features

1. Durable hard 8mm PVC construction, anti-corrosion and easy to clean.
2. Reservoirs with mixing system on stand.
3. Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4. Exposure zone lined with corrosion-resistant PVC sheets.
5. Clear cover allows viewing of test conditions.
6. Peaked cover prevents dripping of condensation onto samples.
7. Water seal and water level protection system.
8. Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9. Automatic DI water fills to humidifying tower.

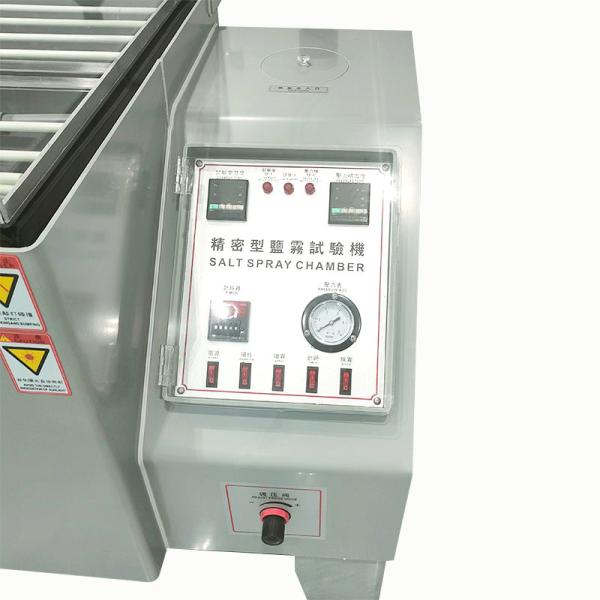

10. Digital temperature control.
11. Integral over-protection on heaters.
12. Low water cut-off protection on humidifying tower.

Details Images
