Salt Spray Hot Humid Testing Programmable Pt100 Test Sensors Corrosion Chamber
Salt Spray Hot Humid Testing Programmable Pt100 Test Sensors Corrosion Chamber
Salt Spray Hot Humid Testing Programmable Pt100 Test Sensors Corrosion Chamber
Salt Spray Hot Humid Testing Programmable Pt100 Test Sensors Corrosion Chamber
Salt Spray Hot Humid Testing Programmable Pt100 Test Sensors Corrosion Chamber
Salt Spray Hot Humid Testing Programmable Pt100 Test Sensors Corrosion Chamber
Salt Spray Hot Humid Testing Programmable Pt100 Test Sensors Corrosion Chamber
Salt Spray Hot Humid Testing Programmable Pt100 Test Sensors Corrosion Chamber
Specifications
Brand Name :
YUYANG
Model Number :
YYJ031
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000/set
Delivery Time :
30 days
Packaging Details :
Wooden box package
Dimensions: :
108L, 270L, 600L, 1440L
External Dimension W*H*D(mm) :
2050*1250*1400mm
Lab Capacity(L) :
108
Saline Capacity(L) :
15
Enter./Inter.Material :
P.V.C&P.P
Compressed Air Pressure(kgf) :
1.0-6.0
Single gross weight: :
60kg
Power Source :
220V 60/50HZ
Brine Temperature :
35°C±1°C
Warranty Period :
12 Months
Description

Salt Spray Hot Humid Testing Programmable Pt100 Test Sensors Corrosion Chamber

Description:
Salt spray humidity and heat test Programmable Pt100 test sensor corrosion chamber in line with CNS, ASTM, JIS, ISO standards, salt spray test is for a variety of materials surface after coating, electroplating, anodizing, anti-rust oil, anti-corrosion treatment, test the corrosion resistance of its products.

Specification

Dimensions: 108L, 270L, 600L, 1440L
External Dimension W*H*D(mm) 2050*1250*1400mm
Lab Capacity(L) 108
Saline Capacity(L) 15
Enter./Inter.Material P.V.C&P.P
Compressed Air Pressure(kgf) 1.0-6.0
Single gross weight: 60kg
Power Source

220V 60/50HZ

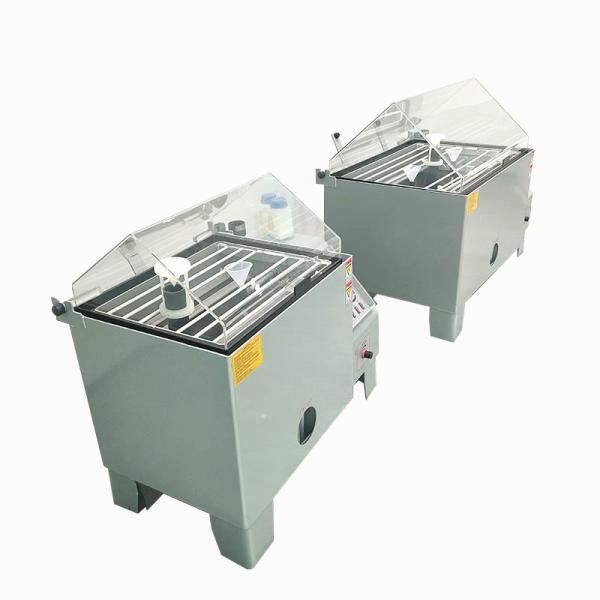

Structure:


1. The Salt Spray and Salt Fog Corrosion Test Chamber cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow.
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.

Features

1. Durable hard 8mm PVC construction, anti-corrosion and easy to clean.
2. Reservoirs with mixing system on stand.
3. Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4. Exposure zone lined with corrosion-resistant PVC sheets.
5. Clear cover allows viewing of test conditions.
6. Peaked cover prevents dripping of condensation onto samples.
7. digital circuit design, accurate temperature control, the use of high-quality imported electrical materials, reasonable layout design, long service life, functional test complete.
8. with power-off memory function, so that the original timing work is completed before the remaining tests, with double over-temperature protection, water shortage reminder to ensure safe use.
9. can be individually set to spray and stop time, cyclic intermittent water spray.
10. Adopt fog seal tank environmental protection watertight way to prevent fog leakage.
11. The spray tower adopts conical diffuser, with functions such as fog guide, volume adjustment and uniform shut-off fog.
12. The instrument adopts ergonomic design, beautiful appearance, easy to operate.

Details Images

DONGGUAN YUYANG INSTRUMENT CO.,LTD is Located in Wanjiang District (Dongguan City, Guangdong Province,China),a famous historical town with prosperous industry and convenient transportation. We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc. Decades of research and development strengthen the leading edge of YUYANG in this field, and established as an crucial role in R&D on high quality and high-cost performance of testing equipment. YUYANG's testing equipment are widely used in various field: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, lithium battery, LED, photoelectricity, mobile, plastic and rubber, display, telecommunication, chemical industry, aerospace, building material and product, wire and cable, toys, furniture, textile and fabrix, etc. All YUYANG testing equipment are designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA,CEN and so on. DONGGUAN YUYANG INSTRUMENT CO.,LTD looks forward to cooperating with customer all over the world. If you are interested in any of our products or would like to discuss a custom order. Please feel free to contact us. We are looking forward to forming succesful business with new clients around the world in the near future.
