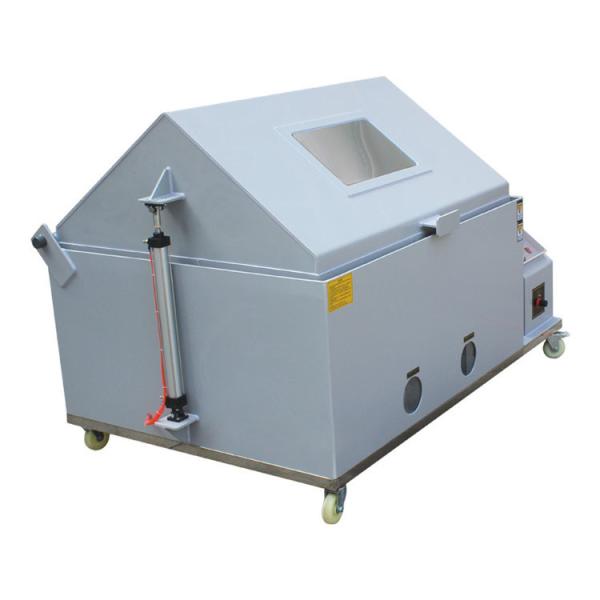

Hardware Salt Spray Test Chamber Universal Lab Salt Fog Chamber For Automobile Parts
Hardware Salt Spray Test Chamber Universal Lab Salt Fog Chamber For Automobile Parts
Hardware Salt Spray Test Chamber Universal Lab Salt Fog Chamber For Automobile Parts
Hardware Salt Spray Test Chamber Universal Lab Salt Fog Chamber For Automobile Parts
Hardware Salt Spray Test Chamber Universal Lab Salt Fog Chamber For Automobile Parts
Hardware Salt Spray Test Chamber Universal Lab Salt Fog Chamber For Automobile Parts
Hardware Salt Spray Test Chamber Universal Lab Salt Fog Chamber For Automobile Parts
Hardware Salt Spray Test Chamber Universal Lab Salt Fog Chamber For Automobile Parts
Specifications
Brand Name :
YUYANG
Model Number :
YYSZ013
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000/set
Delivery Time :
30 days
Packaging Details :
Wooden box package
Internal Dimension W*H*D(mm) :
600*450*400
External Dimension W*H*D(mm) :
1100*600*1200
Lab Capacity(L) :
108
Function: :
Simulate coast, ocean climate or high humidity environm
Enter./Inter.Material :
P.V.C&P.P
Compressed Air Pressure(kgf) :
1.0-6.0
Weight(kg) :
65
Power Source :
Electronic
PH :
6.5~7.2; 3.0~3.2
Volume: :
270L
Usage :
Salt Spray Test Chamber
Description

Hardware Salt Spray Test Chamber Universal Lab Salt Fog Chamber For Automobile Parts

Product Description

The salt spray tester is used to test the corrosive resistance of products whose the surface was treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil, etc.

Specification

Internal Dimension W*H*D(mm) 600*450*400
External Dimension W*H*D(mm) 1100*600*1200
Lab Capacity(L) 108
Saline Capacity(L) 15
Enter./Inter.Material P.V.C&P.P

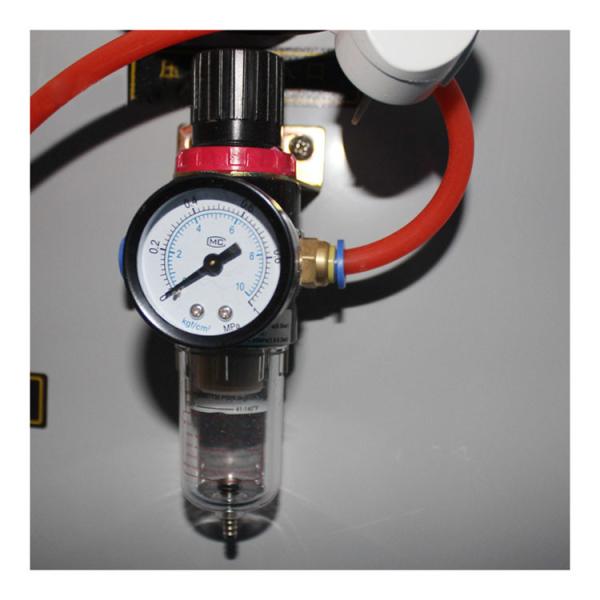

Compressed Air Pressure(kgf) 1.0-6.0
Weight(kg) 65
Power Source

220V 60/50HZ


Structure:

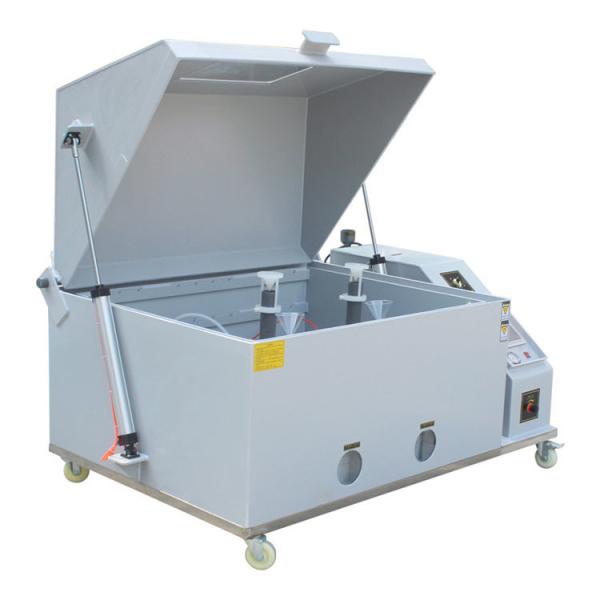

1. The Salt Spray and Salt Fog Corrosion Test Chamber cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow.
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.

Features:

1. The whole PP&PVC solid mechanical structure is hydrochloric acid resistant, heat resistant, never aging, suitable for salt spray copper acetate, etc.
2. Patented nozzle and conical diffusion device make the falling mist quickly and evenly. With manual level automatic control mode, the maximum setting time can reach 9999 hours.
3. With automatic defogging device, which can be cleared to observe the tested products after the experience is over.
4. three complete sets of temperature control system (saturated air temperature, cabinet temperature, test liquid temperature) to ensure consistency and standardization of the test.
5. Economical push-button controller and programmable touch screen controller are available.
6. Salt spray test conditions are set according to IEC 68-2 11, DIN EN ISO 9227, ASTM B117, JIS Z2371, JIS K5400 and other relevant test standards.

salt mist fog testing machine with universal wheel for paint corrosion test
