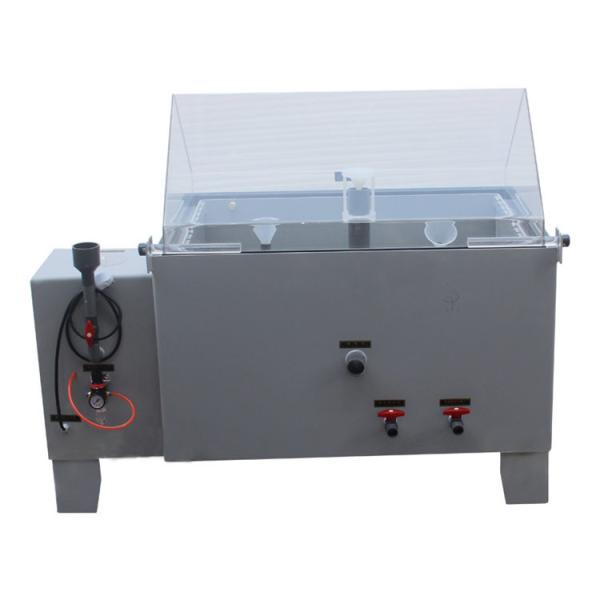

Astm B117 Standard Corrosion Salt Spray Test Chamber For Painting And Coating Products
Astm B117 Standard Corrosion Salt Spray Test Chamber For Painting And Coating Products
Astm B117 Standard Corrosion Salt Spray Test Chamber For Painting And Coating Products
Astm B117 Standard Corrosion Salt Spray Test Chamber For Painting And Coating Products
Astm B117 Standard Corrosion Salt Spray Test Chamber For Painting And Coating Products
Astm B117 Standard Corrosion Salt Spray Test Chamber For Painting And Coating Products
Astm B117 Standard Corrosion Salt Spray Test Chamber For Painting And Coating Products
Astm B117 Standard Corrosion Salt Spray Test Chamber For Painting And Coating Products
Specifications
Brand Name :
YUYANG
Model Number :
YYJ19
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000/set
Delivery Time :
30 days
Packaging Details :
Wooden box package
Product name: :
Iso 9227 (Din 50021) Astm B117 Standard Corrosion Salt Spray Test Chamber For Painting And Coating Products
Power Source :
AC220V/380V 50HZ
Dimensions :
108L, 270L, 600L, 1440L
External Dimension W*H*D(mm) :
2050*1250*1400mm
Air saturator :
Ambient+10°C~70°C
Lab Capacity(L) :
108
Saline Capacity(L) :
15
Temperature Range :
35°C~55°C
Compressed Air Pressure(kgf) :
1.0-6.0
Description

Iso 9227 (Din 50021) Astm B117 Standard Corrosion Salt Spray Test Chamber For Painting And Coating Products

Salt spray corrosion test chamber is used surface treatment of various material including mechanical, national defense, light industry, electronic, instruments etc. after these anti-corrosive treatment to test the corrosion resistance of their products.

Specification

Dimensions: 108L, 270L, 600L, 1440L
External Dimension W*H*D(mm) 2050*1250*1400mm
Lab Capacity(L) 108
Saline Capacity(L) 15
Temperature Range 35°C~55°C
Compressed Air Pressure(kgf) 1.0-6.0
Product name: Salt Spray Test 5% Brine Concentration Salt Spray Machine Multifunctional
Power Source

AC220/380V 50HZ


Structure:


1. The Salt Spray and Salt Fog Corrosion Test Chamber cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow.
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.

Features

1. Durable hard 8mm PVC construction, anti-corrosion and easy to clean.
2. Reservoirs with mixing system on stand.
3. Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4. Exposure zone lined with corrosion-resistant PVC sheets.
5. Clear cover allows viewing of test conditions.
6. Peaked cover prevents dripping of condensation onto samples.
7. Water seal and water level protection system.
8. Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9. Automatic DI water fills to humidifying tower.

Company Profile
Guangdong Yuyang Automatic Equipment Co., Ltd. is Located in Wanjiang District (Dongguan City, Guangdong Province, China),a famous historical town with prosperous industry and convenient transportation. We are a high-tech enterprise which is specialized in developing and manufacturing Industrial machine, Vending machine, Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc. Decades of research and development strengthen the leading edge of
YUYANG in this field, and established as an crucial role in R&D on high quality and high-cost performance of testing equipment.
YUYANG's testing equipment are widely used in various field: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, lithium battery, LED, photoelectricity, mobile, plastic and rubber, display, telecommunication, chemical industry, aerospace, building material and product, wire and cable, toys, furniture, textile and fabrix, etc. All YUYANG testing equipment are designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA,CEN and so on. Guangdong Yuyang Automatic Equipment Co., Ltd looks forward to cooperating

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2018,sell to South Asia(20.00%),Eastern Asia(20.00%),Domestic
Market(15.00%),Southeast Asia(15.00%),Eastern Europe(10.00%),North America(10.00%),Oceania(5.00%),Western Europe(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Fire Testing Equipment,Environmental Test Chamber,Textile Testing Equipment,Toys Testing Equipment,Wire and Cable Test Machine

4. why should you buy from us not from other suppliers?
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire
Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
