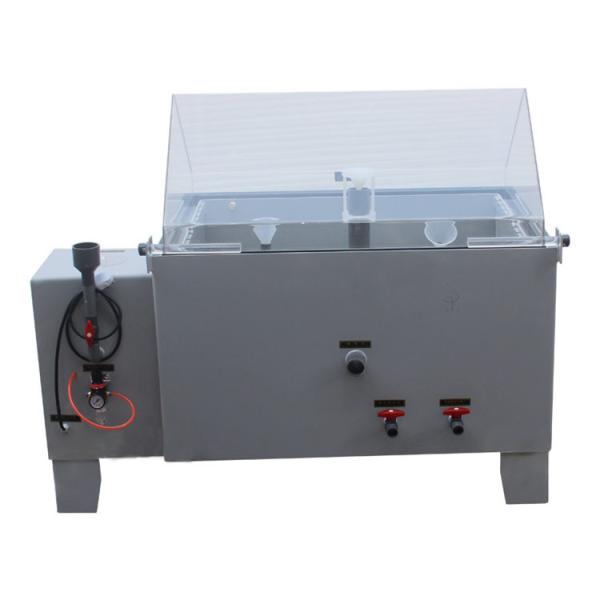

220V Corrosive Resistance Salt Spray Test Chamber Collector Test Apparatus
220V Corrosive Resistance Salt Spray Test Chamber Collector Test Apparatus
220V Corrosive Resistance Salt Spray Test Chamber Collector Test Apparatus
220V Corrosive Resistance Salt Spray Test Chamber Collector Test Apparatus
220V Corrosive Resistance Salt Spray Test Chamber Collector Test Apparatus
220V Corrosive Resistance Salt Spray Test Chamber Collector Test Apparatus
220V Corrosive Resistance Salt Spray Test Chamber Collector Test Apparatus
220V Corrosive Resistance Salt Spray Test Chamber Collector Test Apparatus
Specifications
Brand Name :
YUYANG
Model Number :
YYJ07
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000/set
Delivery Time :
30 days
Packaging Details :
Wooden box package
Dimensions :
108L, 270L, 600L, 1440L
External Dimension W*H*D(mm) :
2050*1250*1400mm
Lab Capacity(L) :
108
Saline Capacity(L) :
15
Brine temperature Range :
35°C~55°C
Compressed Air Pressure(kgf) :
1.0-6.0
Product name: :
Programmable Salt Spray Cyclic Corrosion Test Chamber Environmental Test Chamber
Power supply :
220V /380V / Customizable
Outer size :
600*1400*1300 mm
Material :
5MM gray and white P.V.C board
Brine temperature :
35℃±1℃ 50℃±1℃
Description

Hot Sell Salt Mist Collector Test Apparatus Salt Spray Corrosive Resistance Test Chamber

Detailed configurations as follows:

1, according to CNS JIS ASTM GB2423.19 specifications, can be set constant temperature to control

(A) Salt spray test: NSS, ACSS

1. testing room : 35 ℃ ± 1 ℃

2 saturated air barrels : 47 ℃ ± 1 ℃

(B) anti-corrosion test: CASS (copper acetate)

1.testing room: 50 ℃ ± 1 ℃

2 saturated air barrels: 63 ℃ ± 1 ℃

2, air supply system: air pressure 1Kg/cm2 Two-stage adjustments (coarse / fine-tuning).

(A) the first paragraph for the rough adjustment 2-2.5Kg/cm2, the second paragraph to fine-tune 1Kg/cm2.

(B) Testing configuration is switch connector designed for SO2.

3, spray form:

(A) Using Bo Nute principle to draw brine and then saline spray, atomization uniform, non-blocking and crystallization, so that ensure continuous spraying.

(B) Nozzle: The nozzle is made of special glass, adjust spray volume and spray angle.

(C) spray volume: Adjustable 1 ~ 2ml (80cm2/hr) (average of 16-hour volume).

4, heating devices:

By direct heating, warming up faster and reduction of standby time, when the temperature arrives automatically switch ON / OFF, make temperature accuracy, low power consumption (heating tube is made of titanium alloy).

5, add water systems:

Using automatic water replenishment system, automatic replenishment when the water level is too low.

6, safe protective device:

(A) low water level, automatically cut off power supply.

(B) over-temperature, automatic cut off the power supply.

(C) attached to the safe warning light device.

Specification

Dimensions: 108L, 270L, 600L, 1440L
External Dimension W*H*D(mm) 2050*1250*1400mm
Lab Capacity(L) 108L
Saline Capacity(L) 15
Temperature Range 34°C~55°C
Compressed Air Pressure(kgf) 1.0-6.0
Product name: Salt Spray Ageing Chamber Accelerated Corrosion Resistance Climate Equipment Salt Mist Test Machine
Brand Name

YUYANG

Details Images

Packing & Delivery
Company Profile

FAQ

1. Who are We?
Our headquarters is located in Guangdong, China, and since 2022, our products have been sold to Southeast Asia (11.00%), the domestic market (10.00%), Southern Europe (10.00%), East Asia (10.00%), Northern Europe (9.00%), Western Europe (7.00%), South America (7.00%), North America (7.00%), South America (7.00%), North America (7.00%). South America (7.00%) and North America (7.00%). Oceania (5.00%). We have anywhere from 11 to 50 people in the office.

2. How do we guarantee quality?
There are always pre-production samples before mass production;
Final inspection must be carried out before shipment;

3. What can you buy from us?
Concrete Floor Grinding Machine, Vending Machine, Induction Heating Machine, Optical Measuring Machine, Metal Detecting Machine

4. Why don't you buy from other suppliers instead of us?
We are a professional R & D and production of concrete ground grinding machine, testing machine, environmental test box, optical measurement/metal detector/induction heating machine, lawn mower, PCB sorter, vending machine and other high-tech enterprises.
