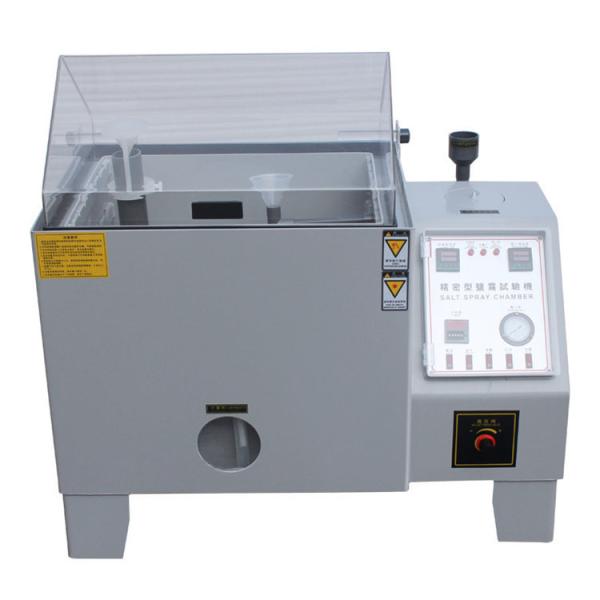

Programmable Salt Spray Testing Chamber ASTM B117 Fog Corrosion Resistance Test Machine
Programmable Salt Spray Testing Chamber ASTM B117 Fog Corrosion Resistance Test Machine
Programmable Salt Spray Testing Chamber ASTM B117 Fog Corrosion Resistance Test Machine
Programmable Salt Spray Testing Chamber ASTM B117 Fog Corrosion Resistance Test Machine
Programmable Salt Spray Testing Chamber ASTM B117 Fog Corrosion Resistance Test Machine
Programmable Salt Spray Testing Chamber ASTM B117 Fog Corrosion Resistance Test Machine
Programmable Salt Spray Testing Chamber ASTM B117 Fog Corrosion Resistance Test Machine
Programmable Salt Spray Testing Chamber ASTM B117 Fog Corrosion Resistance Test Machine
Specifications
Brand Name :
YUYANG
Model Number :
YYJ07
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000/set
Delivery Time :
30 days
Packaging Details :
Wooden box package
Dimensions :
108L, 270L, 600L, 1440L
External Dimension W*H*D(mm) :
2050*1250*1400mm
Lab Capacity(L) :
108
Saline Capacity(L) :
15
Brine temperature Range :
35°C~55°C
Compressed Air Pressure(kgf) :
1.0-6.0
Product name: :
Programmable Salt Spray Cyclic Corrosion Test Chamber Environmental Test Chamber
Power supply :
220V /380V / Customizable
Outer size :
600*1400*1300 mm
Material :
5MM gray and white P.V.C board
Description

Programmable Salt Spray Testing Chamber ASTM B117 Fog Corrosion Resistance Test Machine

product detail

1. Scope of application: Salt spray testing machine is for surface treatment of various materials, including paint, electroplating, organic and inorganic film, After anodic treatment, anti-rust oil and other anti-corrosion treatments, test its corrosion resistance to establish the quality of the product.

2. Specifications Inner box size: 600×450×400mm ( W * D * H) Outer box size: 710×560×560mm ( W * D * H) Power supply: single phase 220V 2KW 50Hz

3. Technical basis Operate and set according to JIS, ASTM, CNS, GB standard parameters Salt spray test: NSS, ACSS Laboratory: 35°C ± 1°C Fluctuation: ≤±0.5°C Uniformity: ≤2°C Saturated air barrel: 47°C ± 1°C Corrosion resistance test: CASS Laboratory: 50℃±1℃ Fluctuation: ≤±0.5℃ Uniformity: ≤2℃ Saturated air barrel: 63°C ± 1°C

4.Structure

Material
a
The test machine chamber is made of light gray impact-resistant PVC board with a thickness of 5mm and a durable temperature of
85°C.(Taiwan Nanya brand).
The thickness of the three-dimensional reinforcement around the edge is 10mm, and the structure is firm.
b
The test chamber cover is sealed with a PVC impact-resistant plate with a thickness of 5mm, which will not be distorted and
deformed when used at high temperatures.
The inner and outer layers of the edge are thickened to prevent distortion and deformation due to long-term high temperature.
Thickness 15mm
c
Hidden one-piece reagent supplement bottle, easy to clean and easy to operate.
d
The saturated air barrel adopts SUS#304 stainless steel high-pressure barrel with the best heat preservation effect
e
The sample placement table is made of 8mm heat-resistant ABS board, with strong load-bearing capacity. The test sample holder
adopts a plane indexing type, and the angle can be adjusted arbitrarily. (Can be customized according to customer product
requirements)
2.
Spray system
a
Using Bernoult's principle to absorb salt water and then atomize it, the degree of atomization is uniform, and there is no
phenomenon of blocking crystallization, which can ensure the standard of continuous testing
b
Nozzles: made of special glass nozzles, which can adjust the size of the spray amount and the spray angle
c
The spray volume is adjustable from 1 to 2ml/h (ml/80cm2/h standard requires testing for 16 hours to find the average volume). The
measuring cylinder adopts the embedded installation, the appearance is beautiful and tidy, the observation is convenient, and the
installation space of the instrument is reduced
d
Spray method: continuous spray
3.
Air supply system
a
First section is roughly adjusted to 2Kg/cm2, and the inlet air filter has a drainage function
b
The second stage is precision adjustment 1Kg/cm2, 1/4 pressure gauge, showing precision and accuracy
4.
Heating system
a
The direct heating method is used, the heating speed is fast and the standby time is reduced. When the temperature reaches the
constant temperature state, it will automatically switch to the constant temperature state, the temperature is accurate, and the
power consumption is small. Pure titanium heating tube, acid and alkali corrosion resistance, long service life

Specification

Dimensions: 108L, 270L, 600L, 1440L
External Dimension W*H*D(mm) 2050*1250*1400mm
Lab Capacity(L) 108L
Saline Capacity(L) 15
Temperature Range 34°C~55°C
Compressed Air Pressure(kgf) 1.0-6.0
Product name: Salt Spray Ageing Chamber Accelerated Corrosion Resistance Climate Equipment Salt Mist Test Machine
Brand Name

YUYANG

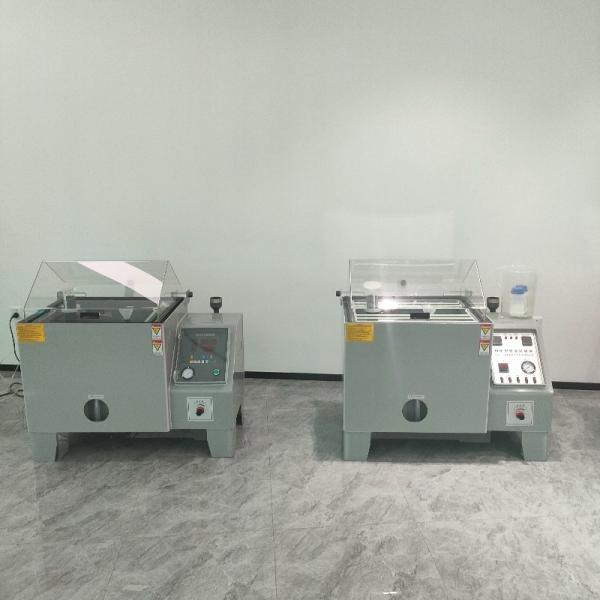

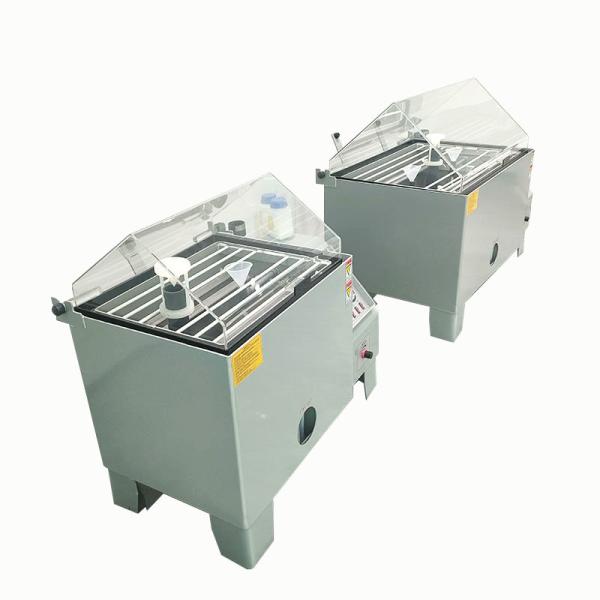

Details Images
