Manual Snap Button Textile Testing Machine ASTM PS79-96 Pull Tensile Tester
Manual Snap Button Textile Testing Machine ASTM PS79-96 Pull Tensile Tester
Manual Snap Button Textile Testing Machine ASTM PS79-96 Pull Tensile Tester
Manual Snap Button Textile Testing Machine ASTM PS79-96 Pull Tensile Tester
Manual Snap Button Textile Testing Machine ASTM PS79-96 Pull Tensile Tester
Manual Snap Button Textile Testing Machine ASTM PS79-96 Pull Tensile Tester
Manual Snap Button Textile Testing Machine ASTM PS79-96 Pull Tensile Tester
Manual Snap Button Textile Testing Machine ASTM PS79-96 Pull Tensile Tester
Specifications
Brand Name :
YUYANG
Model Number :
YY843
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500 sets per month
Product name :
Snap Button Pull Tester
Application :
Textile
Material :
Stainless Steel 304
Power supply :
220V 50Hz
Standard :
ASTM PS79-96, ASTM F963, EN 71-1, 16 CFR 1500.51-53, M&S P115A
Load capacity :
300N, 500N
Weight :
20kg
Readability :
1N
Description

Professional Manual Snap Button Textile Testing Machine Pull Tensile Tester

Description

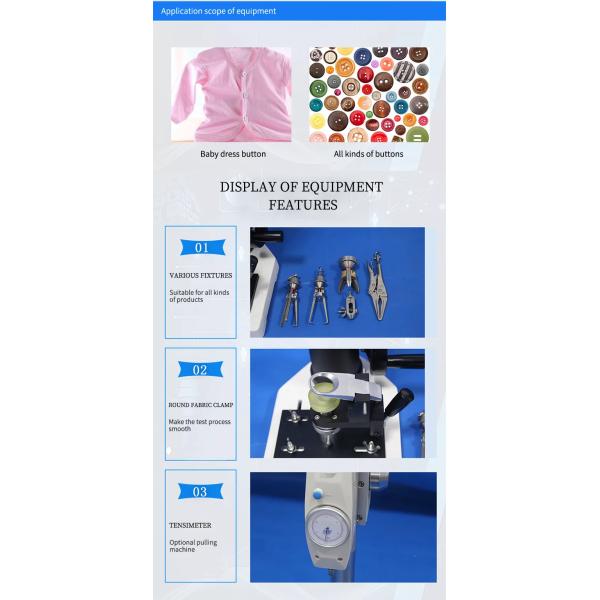

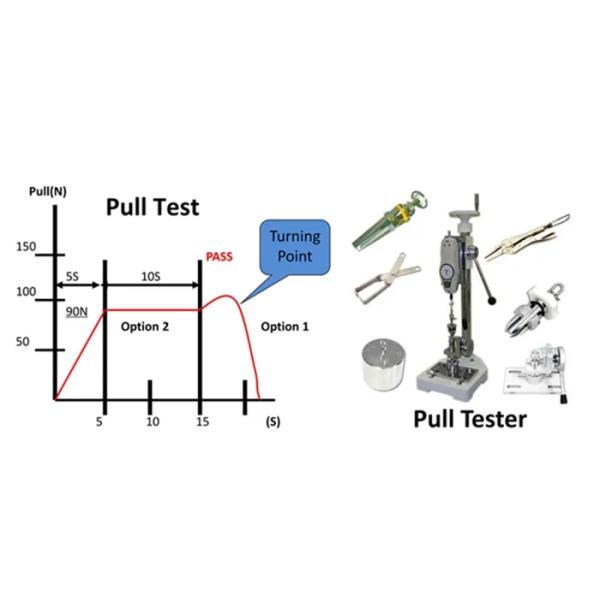

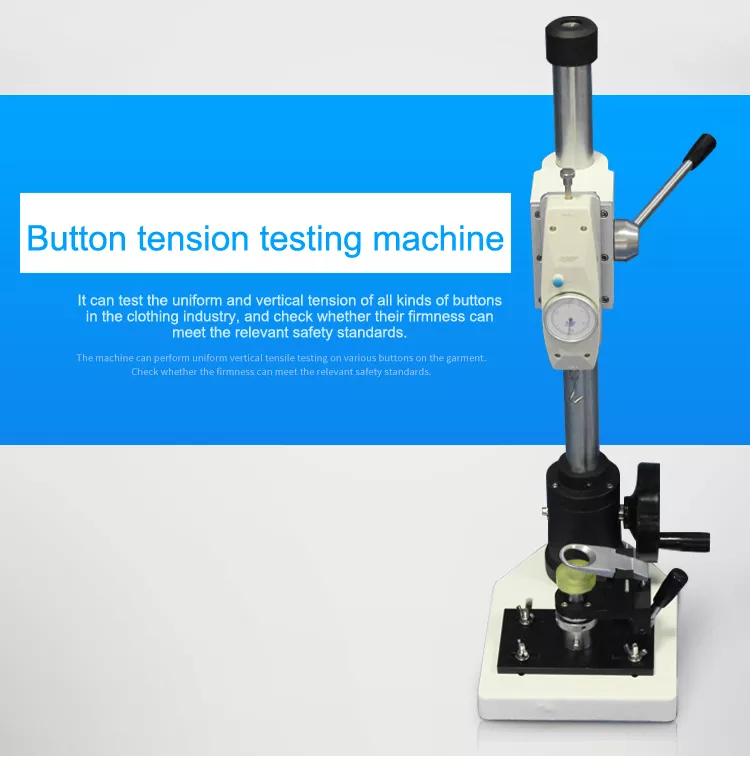

The button snap pull tester. To determine the holding or breaking strength of prong-ring attached snap fasteners onto garments. Consists of an Upper Snap Clamp, a Lower Fabric Clamp & Force Gauge mounted on a Stand. The snap component is gripped by the Upper Snap Clamp and the garment is fixed to the lower Fabric Clamp. By turning the Top Flywheel, the operator can apply a specific force and the holding force or the breaking strength can be recorded.

Used for measuring the responsibility of garment manufacturer to ensure

button and firmware can be fixed on the ready-made garments properly,

Avoiding button drop from garment to brought danger to baby swallow.

Used for testing the vertical orientation tension of button and added touch.

Dimensions : 280 x 230 x 735 mm (L×W×H)

Weight:25 kg

Standards: 16 CFR 1500.51-53, ASTM WK4510 PS79-96,ASTM F963,EN71-Part1,M&S P115A(for snap) P115(for button)

Standard Features:

Load Capacity 50KG
Load accuracy ±0.2% of full scale
Readability 0.1N
Diameter of pressing ring 15mm,35mm
Instrument Dimension (L*W*H) 240*290*750mm
Instrument Weight 40kg
Design Standard ASTM D 4846,EN71

Manual Snap Button Textile Testing Machine ASTM PS79-96 Pull Tensile Tester

Manual Snap Button Textile Testing Machine ASTM PS79-96 Pull Tensile Tester

Manual Snap Button Textile Testing Machine ASTM PS79-96 Pull Tensile Tester

Manual Snap Button Textile Testing Machine ASTM PS79-96 Pull Tensile Tester

Manual Snap Button Textile Testing Machine ASTM PS79-96 Pull Tensile Tester
