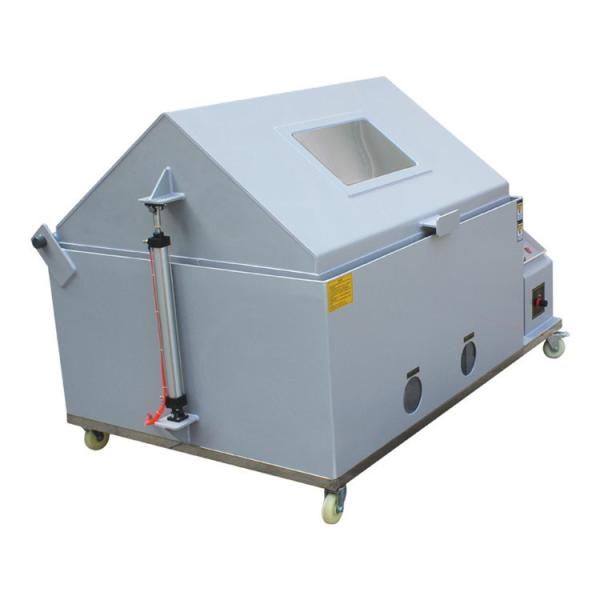

Environmental Salt Spray Fog Corrosion Testing Chamber ASTM B117
Environmental Salt Spray Fog Corrosion Testing Chamber ASTM B117
Environmental Salt Spray Fog Corrosion Testing Chamber ASTM B117
Environmental Salt Spray Fog Corrosion Testing Chamber ASTM B117
Environmental Salt Spray Fog Corrosion Testing Chamber ASTM B117
Environmental Salt Spray Fog Corrosion Testing Chamber ASTM B117
Environmental Salt Spray Fog Corrosion Testing Chamber ASTM B117
Environmental Salt Spray Fog Corrosion Testing Chamber ASTM B117
Specifications
Brand Name :
YUYANG
Model Number :
YYZ029
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000/set
Delivery Time :
30 days
Packaging Details :
Wooden box package
Internal Dimension W*H*D(mm) :
1200*1000*500mm
External Dimension W*H*D(mm) :
2050*1250*1400mm
Lab Capacity(L) :
108
Saline Capacity(L) :
15
Body materials :
Stainless Steel Plate
Warranty :
12 Months
Temperature Range :
Room temperature ~ 55℃
Chamber material :
P.V.C rigid plastic plate, thickness 8mm
Spraying system :
Air acid/base liquid
Product name :
salt spray test chamber
Description

Environmental salt spray fog corrosion testing chamber, Salt fog corrosion test chamber ASTM B117

Specification

Internal Dimension W*H*D(mm) 1200*1000*500mm
External Dimension W*H*D(mm) 2050*1250*1400mm
Lab Capacity(L) 108
Saline Capacity(L) 15
spray volume 1.0~2.0ml/80cm2/h
Compressed Air Pressure 1.0±0.01kgf/cm^2
Warranty 12 Months
Pressure Barrels Tempe

47°C~63°C


Structure:

1.LCD display and PID controller or touch screen programmable controller.

2.Entire PVC sheet material, the internal ring with the use of advanced three-dimensional flutter high technology products,strong structure, fresh, never deformation and acid and alkali, high temperature and never aging, for salt spray, copper acetate, and other test specifications.

3.Controller are in the same panel, the operation simple and clear.

4.Neutral salt spray (NSS), acetic acid salt spray ( AASS ), copper accelerated salt spray ( CASS ) either of the test laboratory.

Features

1. Durable hard 8mm PVC construction, anti-corrosion and easy to clean.
2. Reservoirs with mixing system on stand.
3. Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4. Exposure zone lined with corrosion-resistant PVC sheets.
5. Clear cover allows viewing of test conditions.
6. Peaked cover prevents dripping of condensation onto samples.
7. Water seal and water level protection system.
8. Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9. Automatic DI water fills to humidifying tower.
10. Digital temperature control.
11. Integral over-protection on heaters.
12. Low water cut-off protection on humidifying tower.

5. Salt Spray Temperature (Able to set constant temperature control)

(A)Saline Test : NSS,ACSS 1. Testing Chamber : 35 Deg C (+/-)2 Deg C
2. Saturated Air Bucket: 47 Deg C (+/-)2 Deg C
(B) Corrosion Test: CASS

1. Testing Chamber Temperature: 50 Deg C (+/-) 2 Deg C

2. Saturated Air Bucket: 63 Deg C (+/-)2 Deg C

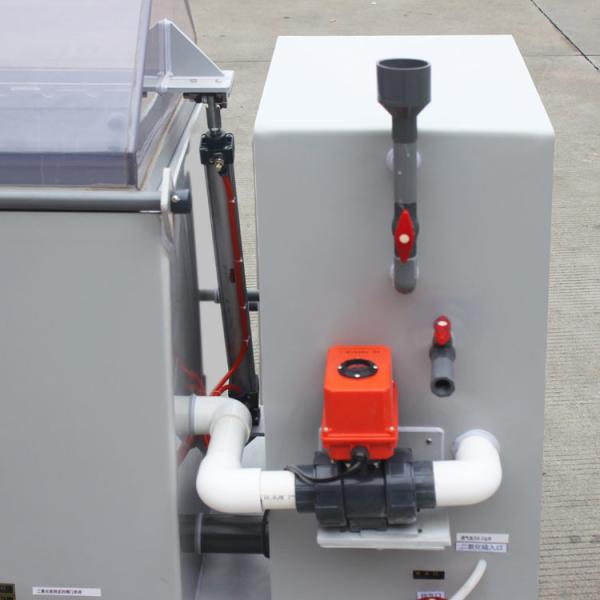

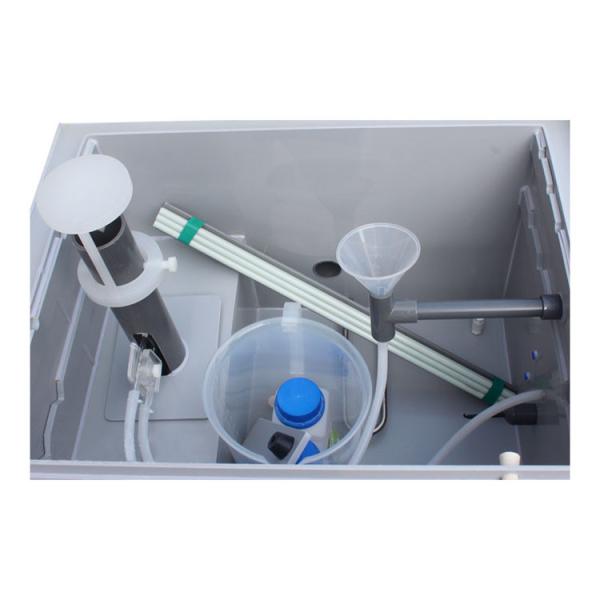

Details Images

Environmental Salt Spray Fog Corrosion Testing Chamber ASTM B117

Environmental Salt Spray Fog Corrosion Testing Chamber ASTM B117

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2018,sell to Southeast Asia(11.00%),Eastern Asia(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),Northern Europe(9.00%),South Asia(9.00%),North America(7.00%),South America(7.00%),Western Europe(7.00%),Eastern Europe(6.00%),Mid East(6.00%),Oceania(5.00%),Central America(3.00%),Africa(0.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Testing Equipment,Tensile Testing Machine,Environmental Test Chamber,Fire Testing Equipment,Induction Heating Machine

4. why should you buy from us not from other suppliers?
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
