Specifications
Brand Name :
YUYANG
Model Number :
YY020
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
$3500
Payment Terms :
T/T
Supply Ability :
10 pcs per month
Delivery Time :
7-30 Days
Packaging Details :
Wooden Box
Standard :
AFNOR G07-III, ASTMD737, ASTMD3.574
Product Name :
Fabric Air Permeability Tester
Power :
Electronic
Air permeability :
1~40000mm/s
Measuring error :
≤±2%
Fabric thickness could be :
≤12mm
Dimensions :
750x465x1050mm
Description

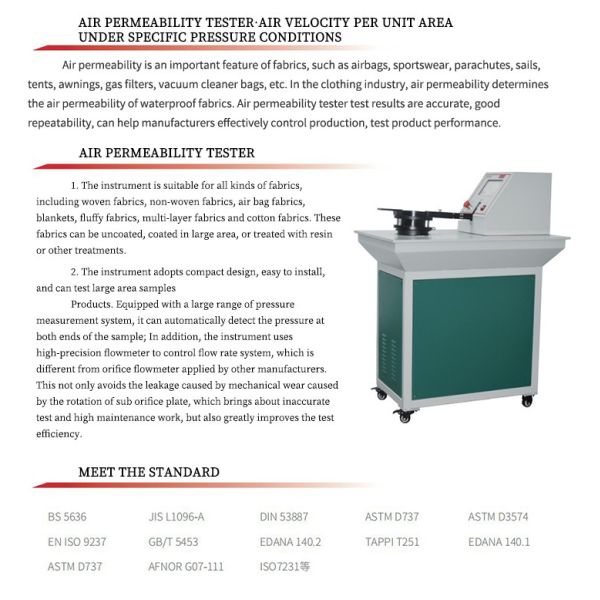

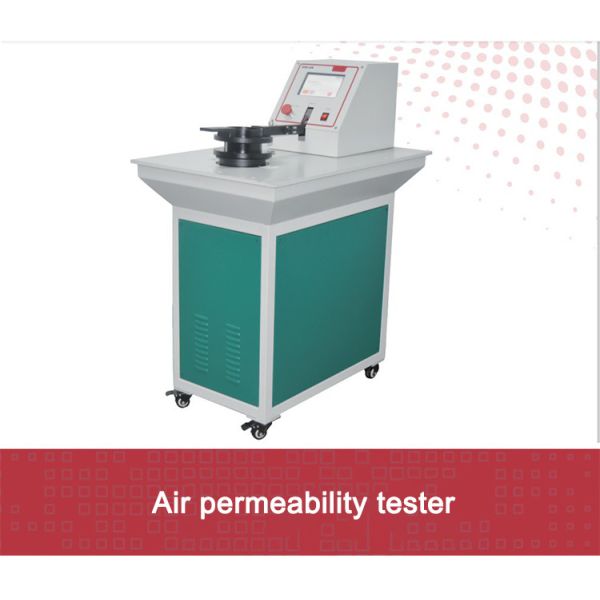

AFNOR G07-III Fully Automatic Textile Fabric Air Permeability Test Equipment

Product description

Used for testing the air permeability of various textile fabrics, textile manufactures, including industrial

fabrics, nonwoven fabrics and other materials permeable to air.

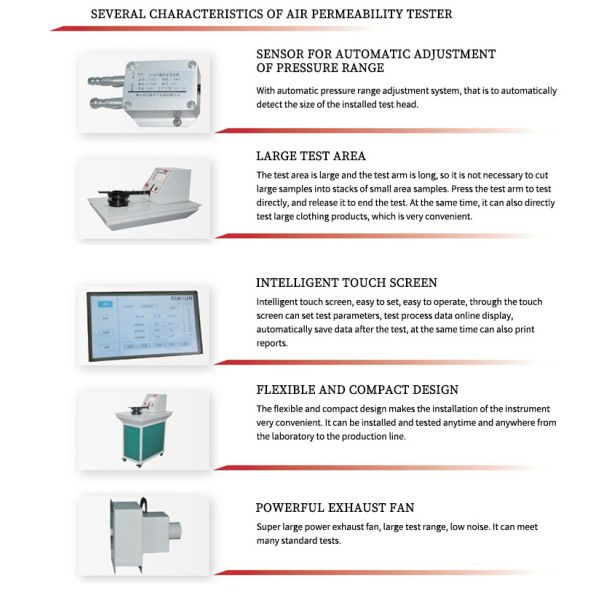

Features:

1. This machine is stick to international standard testing machines.
2. The test range is wider.
3. Fully automatic folder and nozzle changeable, easy to use
4. Efficient work, the test result would be given in a few seconds
5. A test result evaluation system is installed.
6. All the test indexes could be set, digital display.
7. It could connect with the computer and printer.
8. Its stability, repetition, dependability are all accord with international lever.
9. It is suit to lab using and manufacturer scene using.

Specification:

1. This machine is stick to international standard testing machines.

2. The test range is wider.

3. Fully automatic folder and nozzle changeable, easy to use

4. Efficient work, the test result would be given in a few seconds

5. A test result evaluation system is installed.

6. All the test indexes could be set, digital display.

7. It could connect with the computer and printer.

8. Its stability, repetition, dependability are all accord with international lever.

9. It is suit to lab using and manufacturer scene using.

Operation Display Big LCD display. Touch screen in English version

Measuring Unit mm/s, cfm, cm3/cm2/s, L/m2/s, L/dm2/min, m3/m2/min

Test Accuracy better than ±2%

Test Pressure 0-4000Pa

Air permeability: 1~40000mm/s

Measuring error:≤±2%

Fabric thickness could be:≤12mm

Test Area &Test Tip 20 and 38c ㎡(Standard) ; 5,25,50 and 100c ㎡ (choose to buy)

Collocation Micro Printer

Power Source 220V±10% , 50Hz.1100W

External Dimension 750x465x1050mm

Nozzle: 8 pcs, automatically changeable by machine

Gross weight / Net weight 120Kg/95Kg

Applicable standards: AFNOR G07-III, ASTMD737, ASTMD3.574, BS5, 636, DIN53,887,

EDANA140.1, ENISO7,231, JISL1,096-A, TAPPIT251. GB/T5,453

Plywood Package weight and size: 120kg; 130*80*85cm

HS CODE:9031809090, MADE IN CHINA

Parameters

Test Accuracy

±2%

Air Permeability

1~40000mm/s

Weight

120Kg

Certification

CE

Customized support

OEM, ODM, OBM

Power

Electronic

Test Pressure

0-4000Pa

Measuring Error

≤±2%

Dimensions

750x465x1050mm

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2018,sell to Southeast Asia(11.00%),Eastern Asia(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),Northern Europe(9.00%),South Asia(9.00%),North America(7.00%),South America(7.00%),Western Europe(7.00%),Eastern Europe(6.00%),Mid East(6.00%),Oceania(5.00%),Central America(3.00%),Africa(0.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Testing Equipment,Tensile Testing Machine,Environmental Test Chamber,Fire Testing Equipment,Induction Heating Machine

4. why should you buy from us not from other suppliers?
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
