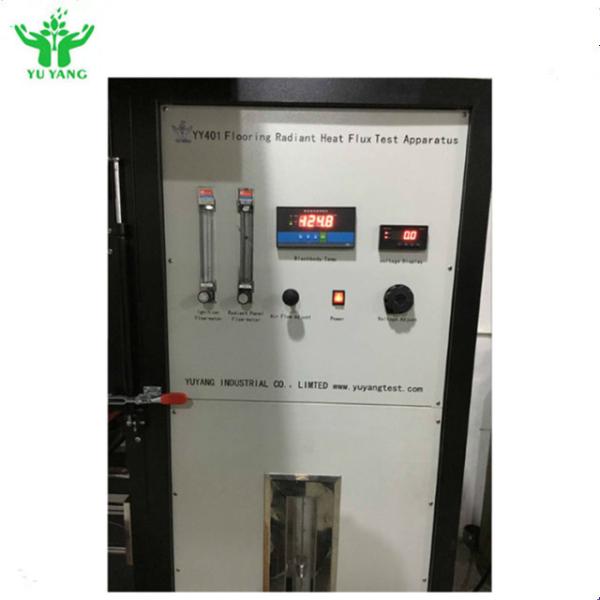

ISO 9239-1 Flooring Radiant Heat Flux Test Apparatus 60 ~ 120mm

Introduction:

Feature

• The resulting test chamber is insulated with calcium silicate insulation board and is provided with a temperature resistant observation window.

• The stainless steel sample support assembly is mounted on a sliding platform to allow safe and easy loading of the test sample.

• The radiant heat is applied by means of a gas-fuelled panel, inclined at 30º, and directed at a horizontally mounted floor covering system specimen.

• The radiant panel generates a radiant energy flux distribution ranging from a nominal maximum of 10.9 kW/m2 to a minimum of 1.1 kW/m2.

• Dummy calibration specimen with holder, calibrated heat flux meter and mounting.

• The distance burned until flame-out is reached and converted, by calibration, into an equivalent critical radiant flux, in kW/m2.

• Heat Flux Meter of ISO9239 flooring radiant panel tester: Range : 0 ~ 50 kw/m2; Surface emissivity :ε=0.95± 0.05

• A smoke measuring system, according to DIN 50055, is mounted on a separate frame at the exhaust stack.

• Control Rack for convenience in use, allowing observation of iso 9239 flooring panetl test apparatus and controls during equipment set-up and calibration.

• Automatic ignition of the radiant panel and safety cut-out.

• Automatic moving T type ignition burner

• Stainless steel hood with smoke measurement ports.

Installation requirements of EN ISO 9239-1 Flooring Radiant Panel Test Apparatus
