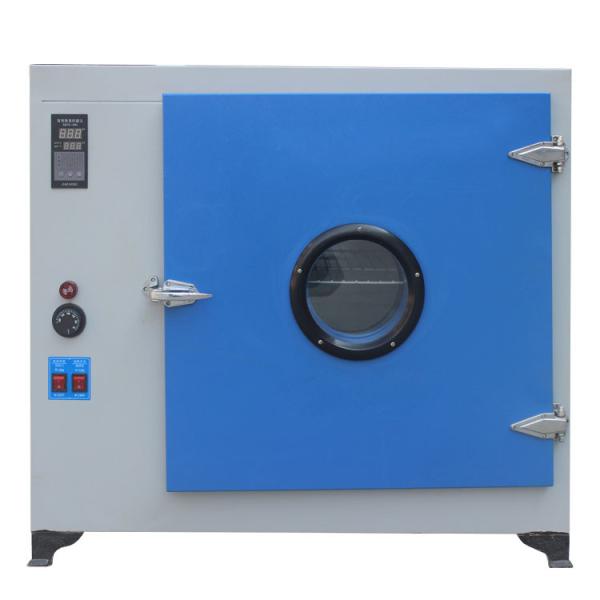

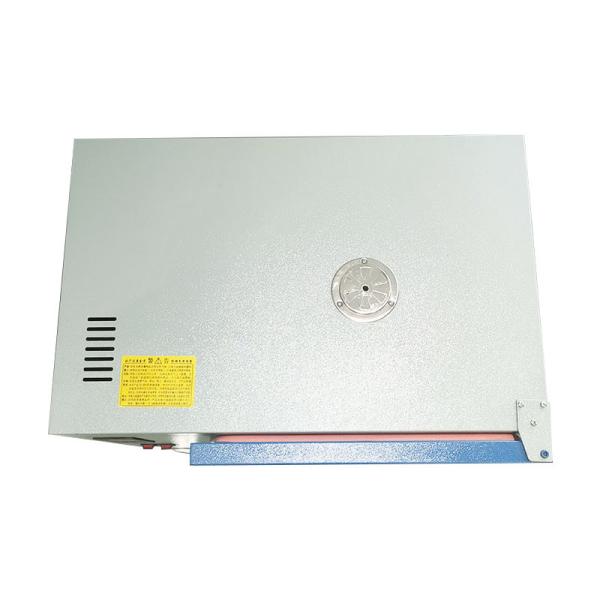

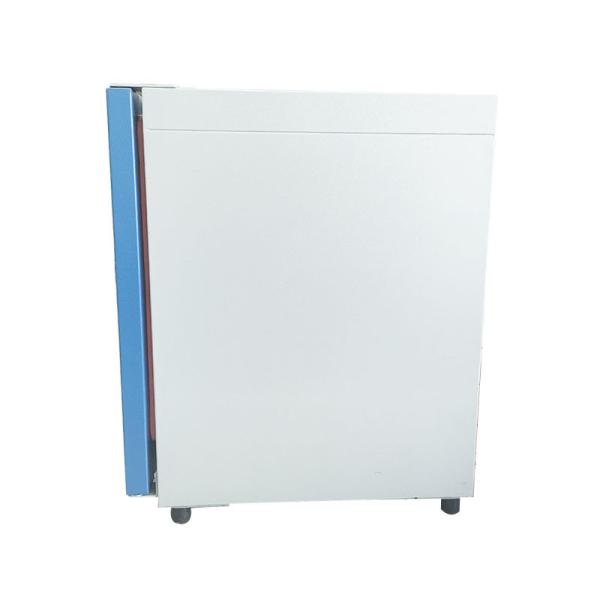

Small Laboratory Stainless Steel High Temp Drying Vacuum Dryer Oven With Vacuum Pump
Small Laboratory Stainless Steel High Temp Drying Vacuum Dryer Oven With Vacuum Pump
Small Laboratory Stainless Steel High Temp Drying Vacuum Dryer Oven With Vacuum Pump
Small Laboratory Stainless Steel High Temp Drying Vacuum Dryer Oven With Vacuum Pump
Small Laboratory Stainless Steel High Temp Drying Vacuum Dryer Oven With Vacuum Pump
Small Laboratory Stainless Steel High Temp Drying Vacuum Dryer Oven With Vacuum Pump
Small Laboratory Stainless Steel High Temp Drying Vacuum Dryer Oven With Vacuum Pump
Small Laboratory Stainless Steel High Temp Drying Vacuum Dryer Oven With Vacuum Pump
Specifications
Brand Name :
YUYANG
Model Number :
YYE003
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5 Pcs Per Month
Delivery Time :
7-30 Days
Packaging Details :
Wooden Box
Product name :
Drying Oven
Gross Weight :
100kg
Power supply source: :
single-phase, 220V, 50Hz
Packaging Dimensions: (WxDxH) :
900*760*830mm
Temperature fluctuation :
0.1℃/±0.5℃
Insulation layer :
High quality rock wool board(with CE)
Temp. control mode :
Two temperature section PID intellegent
Description

Small Laboratory Stainless Steel High Temp Drying Vacuum Dryer Oven With Vacuum Pump

Product Description

1. Horizontal forced air type, high space utilization and good temperature uniformity

2. 101: The fan heat dissipation structure makes the working temperature of the fan less than 50C, so that the fan can run for a long time

3. 202: Classical natural convection drying method

4. New anti-hot handle

Features
1. Multiple centrifugal fan with air circulation system for uniform temperature distribution.
2. Intelligent temperature control system with digital display and PID control function.
3. With safety exhaust hole on the back side of the chamber, which can auto release pressure when has gas expansion in the internal chamber.
4. Control system has independent digital power offer protection system when over temperature.
5. High temperature resistant silicone sealing strip for safety and environmental protection
Parameters
Model Vacuum Drying Oven YYE005
Source voltage AC220V 50HZ
Power 1000W
Warranty One Year Limited Manufacture Warranty with Life Time Sup
Temperature range RT+10-200℃
Temperature fluctuation 0.1℃/±0.5℃
Vacuum degree -0.1MPa
Inner box size(L*W*H 415*370*345mm
Dimension(L*W*H) 720*525*535mm
Temperature controller

1 High precision microcomputer temperature controller, accurate temperature control 2 Working temperature can be set and working time can be set for 0-9999min.

3 When time reach, sound alarm, and when any error, also alarm. function
Inner box materia galvanized steel
Outside shell material High quality cold-rolled steel plate spray
Box door Toughened bulletproof double glass door
Safety device With over temperature protection, grounding etc
Shelf

2pcs

1 Solid stainless steel shelf, guarantee the oven temperature

2 Mesh stainless steel shelf can be also chose
Ambient temperature +5~40℃

Product characteristic:

1.4-sides Heating method, Temperature conduction by shelves, more efficiency.

2.With inflatable port, once-forming thermostability Silica gel Sealant strip, with good tightness

3.Double Observation glass window, inner is explosion – proof glass, outsite is resin protection plate, more safety.

4.Fastening handle, convenient for opening and closing.

Honor wall
1.What are lab drying ovens used for?
2.What is a drying oven?
3.What is the temperature of an oven in a laboratory?
4.Where are your lab ovens made?
