Screen Size 300mm Vertical Series Optical Measuring Profile Projector With Dro Dc3000

Description:

This profile projector is a set of optical, mechanical, electrical, computer integration, high precision optical measuring instruments. It can efficiently detect a variety of complex shape the contours of the workpiece size and surface status, such as templates, punching pieces, cams, threads, gears, form cutter and other tools, cutting tools and parts.

1. Vertical profile projector is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape.

2. Rotation 360 optical measuring vertical profile projector can inspect all kinds of surface and outline of complicated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.

3. Optical measuring vertical profile projector widely used in the trade of mechanism, meter, electricity, light industry, college, research institute and measurement-inspecting department.

4. Measurement data can output and connect printer and computer.

Product Features:

• Top quality profile projector highly versatile and easy to operate;

• Large travel range 200mm x 100mm as standard;

• Linear scale stage with 0.0005mm resolution;

• Fine ground glass screen for clear image;

• Built-in profile and surface illumination;

• 10x, 20x, 50x, 100x projection lenses available.

Parameter:

Specification:

Characteristics:

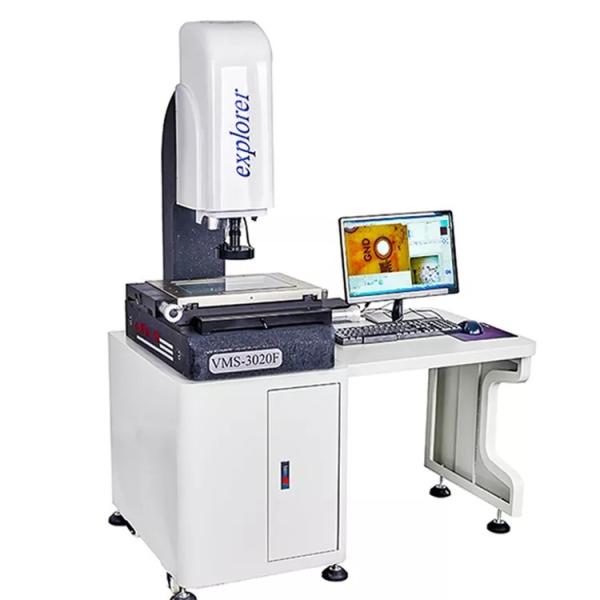

1) Solid framework, large LCD touch screen and advanced QM2.0 software;

2) High quality optics for crisp and clear images;

3) Adjustable LED surface and contour illumination;

4) High resolution industrial CCD camera;

5) 6.5X Detente zoom lens changeable within the range of 30-190x magnification;

6) Easy to operate user interface;

7) Extended function of printing, saving and exporting data;

8) Excel, word or txt multi-format report output, and DXF input and output;

9) Non-contact optical height measurement;

10) Automatic edge-detecting function;

11) Make Save and input the program;

12) Map photo and measurement;

13) Dimension label function;

14) SPC statistical function;

Features:

1. It is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape.

2. 400mm Measurement Profile Projector can inpect all kinds of surface and outline of compli-cated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.

3. 400mm Measurement Profile Projector Used Profile Projector widely used in the trade of mechanism, meter, electricity, ligt industry, college, research institute and measurement-inslecting department.

4. Measurement data can output and connect printer and computer.

It has good quality optical system, imaging lens clear and accurate magnification. In the transmission of the illumination, the profile measurement error is less than 0.08%.Coordinate measurement deviation is ≤(3 + L/200) um, L be regarded as the length of measured parts (mm). Instrument equipped with a dedicated mini-printer and foot switch, DC-3000 Digital Readout, which makes display and measuring very handy.

Usages:

1. Profile projector is mainly used for the measurement of the mechanical parts of the length,

angle, contour and surface shape.

2. It is widely used in meter, electron, aerospace machinery, light industry, college, research institute and measurement-inspecting department.

3. This instrument can inspect all kinds of surface and outline of complicated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.
