Specifications
Brand Name :
YUYANG
Model Number :
YYX162
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5000/set
Delivery Time :
30 days
Packaging Details :
Wooden box package
Operating language :
English
The height of the belt from the ground :
680mm ~ 750mm (height customizable)
Minimum scale :
0.1g
Weighing Speed: :
0~180pieces/min
Sharpness of separation :
±0.1g～± 0.2g,± 0.2g～±1g,± 1g～±5g,± 5g～±10g
Power :
110/220V 50-60HZ
Description

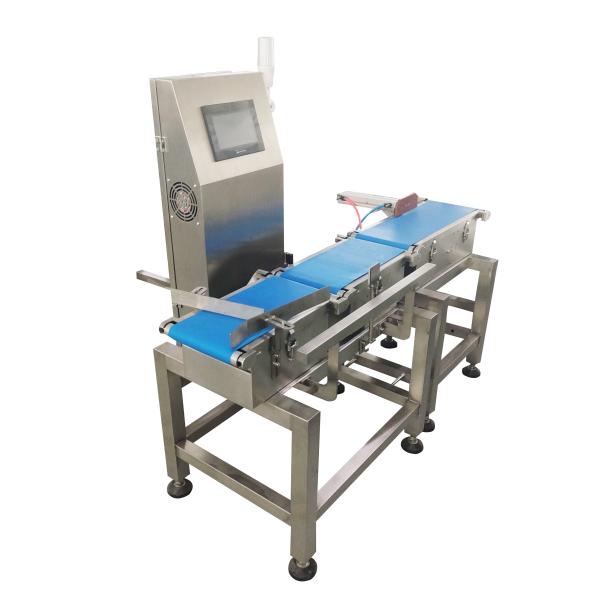

Automatic Check Weigher Belt Conveyor Sorting Machine Weight Bend Check Weigher

Description:

By the type of intelligent weighing scale is a kind of high speed, high precision of online inspection equipment, with a variety of packaging production line and conveying system integration, can real-time detect pipeline overweight, owe the unqualified products, can be widely used in pharmaceutical, foodstuff and chemical industry production line automatic inspection, whether the lack of parts inside the packaging or instruction, etc., after excluding device can automatically weed out bad product.

Apply to industry:

1. Food and oil

2.Pastries and Drinks:

Pharmaceuticals and Cosmetics:

Plastic and Hardware:

Feature:

1. Precison accuracy

Put to use high speed weighting module of importation and weight sensor in order to ensure checking accuracy

2. Simple structure

Full stainless steel manufacture, simply structure, easy maintain & maintenrance, according with GMP & HACCP standard.

3. Covenient operation

Adopting Schneider touch screen, operating simply, displaying intuitively, supporting multi-language (acquiesce in Chinese & English ).

4. Extenal connecting conveniently

Can be connected with other equipment in production line,such as printer, labeller & inkjet printer and so on (client customization).

5. Wide application

Application for bag, filling pack weight checking, there are various rejection way to select (pulling, blowing,pushing jar type and so on ).

6. Function of utomatic feedback

Providing the signal to frontend, feedback packing accuracy in time in order to adjust the feeding status of connected equipment.

Parameter:

weight 200g 2000g 5000g 20000g
man-machine interface 10.1-inch color TFT touch screen
Manipulation language English
Size L1400mm* W685mm * H1335mm L1700mm* W785mm * H1335mm L2060mm* W800mm * H1360mm
Detection size

Length (mm):1～200

width(mm):1～140

height(mm):1～150

Length (mm):5～300

width(mm):5～220

height(mm):5～150

Length (mm):10～400

width(mm):1～300

height(mm):10～150

Length (mm):10～500

width(mm):1～400

height(mm):10～300
Weighing section size(L*W) 400mm*150mm 400mm*220mm 500mm*300mm

600mm*400
Height of belt surface from the ground : 680mm ~ 750mm (height can be customized)
Minimum scale 0.1g
Sorting accuracy ±0.1g～± 0.2g ± 0.2g～±1g ± 1g～±5g ± 5g～±10g
Weighing scale 2～200g 5～1000g 10～5000g 20～20000g
Weed out way Pneumatic blowing type, swinging arm type, flat push rod type, lifting type (optional) Pneumatic swing arm type, flat push rod type Pneumatic flat push-rod type
Material and surface treatment 304 stainless steel, surface polished
Input voltage/power Single-phase AC220V 50Hz / 150w Single-phase AC220V50Hz / 200 w Single-phase AC220V50Hz / 400 w Single-phase AC220V50Hz / 500 w

DONGGUAN YUYANG INSTRUMENT CO.,LTD is Located in Wanjiang District (Dongguan City, Guangdong Province,China),a famous historical town with prosperous industry and convenient transportation.

We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.

Decades of research and development strengthen the leading edge of YUYANG in this field, and established as an crucial role in R&D on high quality and high-cost performance of testing equipment.

YUYANG's testing equipment are widely used in various field: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, lithium battery, LED, photoelectricity, mobile, plastic and rubber, display, telecommunication, chemical industry, aerospace, building material and product, wire and cable, toys, furniture, textile and fabrix, etc.

All YUYANG testing equipment are designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA,CEN and so on. DONGGUAN YUYANG INSTRUMENT CO.,LTD looks forward to cooperating with customer all over the world.

If you are interested in any of our products or would like to discuss a custom order. Please feel free to contact us. We are looking forward to forming succesful business with new clients around the world in the near future.
