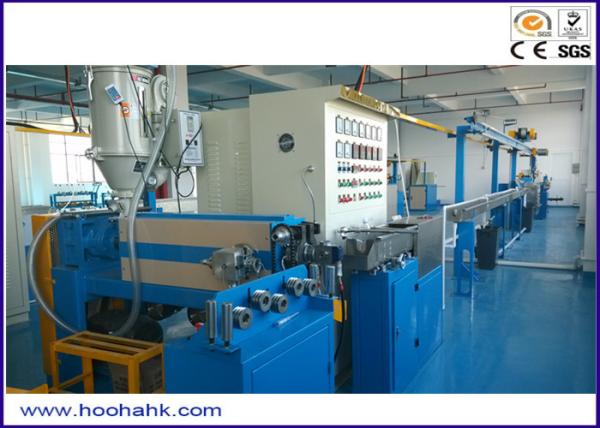

Aluminium And Copper Wire And Cable Making Machine 300-400m / Min Speed
Aluminium And Copper Wire And Cable Making Machine 300-400m / Min Speed
Aluminium And Copper Wire And Cable Making Machine 300-400m / Min Speed
Aluminium And Copper Wire And Cable Making Machine 300-400m / Min Speed
Aluminium And Copper Wire And Cable Making Machine 300-400m / Min Speed
Aluminium And Copper Wire And Cable Making Machine 300-400m / Min Speed
Specifications
Brand Name :
HOOHA
Model Number :
HH-35/45/50/70/80/90/100/110/120/150/180
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10pcs/month
Delivery Time :
25 working days
Packaging Details :
Plastic PE foam
Motor :
Siemens
Inveter :
YASKAWA
speed :
300-400m/min
Power :
50KW/H
Voltage :
380V or customized
Direction :
left or right
weight :
15 ton
Material :
PVC/PE
HS Code :
8479400000
Description

Aluminium and Copper Cable Wire Making Equipment

We make solutions and machines
help installating and operating
keep maintaining and training

YouTube Link:https://www.youtube.com/results?search_query=www.hoohahk.com&spfreload=10



1.cable extrusion machine APPLICATION:
This is designed for insulating low-voltage building wire with various plastic materials including PVC, HFFR, LSHZ.etc. Also it is suit for making power cable, building wire, communcation cable, and so on.


HOOHA-50MM extrusion machine
NO. Condctor conductor section Max.Wire Insulation material Max.Speed
1 Solid 0.5-10mm² 10mm PVC,PE,XLPE,HFFR,LSHZ 460M/MIN
2 stranded 1.0-16mm²
3 Bunched 0.5-25mm²

Aluminium And Copper Wire And Cable Making Machine 300-400m / Min Speed


HOOHA extrusion machine
NO. Pay off Tension controller Main estrusion Cooling trough Traction Take up
1 630MM 500KG 50+35MM Single layer Double layer 600KG 800MM
2 800MM 60+35MM 1000MM
3 1000MM 70+35MM 1250MM
4 1250MM 80+35MM 1600MM



90+35MM




2. CONSISTING COMPONENTS
1. Double shaft type Pay off stand
2. Dancer
3. Main extruder
4. Automated loader & dryer
5. Crosshead
6. Double layer Moving trough
7. Main cooling trough
8. Water wiper
9. Digital Diameter controller
10. Mark printer
11. Accumulator
12. Capstan
13. 15KV Spark tester
14. Meter counter
15. Dual shaft type Take up
16. Master control Control box



HOOHA extrusion machine
NO. Model 50+35MM 60+35MM 70+35MM 80+40MM 90+50MM
1 Pay off type initiatire type initiatire type No-axis magnetic No-axis magnetic No-axis magnetic
2 Screw L/D



3 Out put 110KG 170KG 210KG 270KG 390KG
4 Main motor 15HP 30HP 30HP 40HP 50HP
5 Wire diameter 1-4MM 1.5-8MM 2-10MM 3-20MM 4-45MM
6 Temperature control 7 zones 8 zones 8 zones 9 zones 9 zones
7 Cooling device Folds W type/U type Folds W type/U type Single layer/double Single layer/double Single layer/double
8 Capstan motor 3HP 4HP 5HP 7.5HP 7.5HP
9 Take up Double axis Double axis No-axis magnetic No-axis double No-axis doublec

Aluminium And Copper Wire And Cable Making Machine 300-400m / Min Speed
6.Contact information:
Phone: +8613763134250
Http//:www.hoohahk.com
Add:Huifu industry park,Houhu road No38. Humen Town,
Dongguan City, Guangdong Province,China


Why us?

We are the cable equipment manufacturer
Professional engineer,long term to research and development for to cable equipment .
High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .
Our machine use the international qualified brand,like Siemens ,Omron,NSK,LG etc.
Install and training service.Guarantee overseas install and cable manufacture training experience.
Technical support and spare parts service.


Professional and Strong Manufacture and Sells Team

Team of HOOHA service 　 　 　 　 　
Name education Position Mainly responsible for project Specializing in project Industry working history ( year )
zanyang Xie college General Engineer The total project design and planning power cable 15
xioahua Hu college Vis general engineer The total project design and planning Comunication cable 10
Chnaghong Cheng college Engineer Drawings and after-sales service Teflon,Optical fiber cable machine 25
xiuwu Chen college General Engineer The total project design and planning copper drawing machine 15
lixin Yuan college Engineer The project design and planning coppwer wire making technical 16
zhenghai Qiu college cable engineer After service cable making and cable factory management servie 15
jinxin Liu college Marketing engineer After service electrical engineer 7
xingguo Tang High school Electrical engineer After service electrical engineer 10
changqiang Li High school Maintain engineer After service machina maintain and install service 10
haipin Li University Engineering director Marketing and sales project consulting 8
sen Yang University Engineering translator Marketing and sales project consulting 5
Chitiezhong University Engineering translator Project engineer project consulting 8
Hexueqing University Engineering translator Project assistance project consulting 2
fengmin University Engineering translator Project assistance project consulting 2
Cable Test and fireproofing material test machine project
Suming University fireproofing materialtest machine engineer fireproofing materialtest machine project manager 12
Denxinda University Cable Test machine engineer Cable Test machine engineer project manager 10
lixianwen High school Electrical engineer After service machine install and manufacture 8
zhangdayou High school System engineer After service machine install and manufacture 6
Lutianhai High school Electrical engineer After service machine install and manufacture 4

Aluminium And Copper Wire And Cable Making Machine 300-400m / Min Speed

More about our cable project to support customer is at https://www.youtube.com/watch?v=IlszCJAf52o&t=257s
