Water Pressure Blasting Fire Testing Equipment 0-20mpa Pressure AC 380V

Scope of application:

Applicable to portable fire extinguisher, stroller type fire extinguisher water pressure multi-purpose test. Hand dry powder, mechanical foam, water forming film, etc. 1, 2, 3, 4, 5, 8, 35, 50 kg fire extinguisher, water pressure test, cleaning and barrel bomb test.

Meet the standard:

1. Reference standard GB4351-2005 "portable fire extinguisher";

2. GB/t4351.3-2005 "part 3: inspection rules"

3. GB8109-2005 "wheeled fire extinguisher" requires the research and development of the cylinder body hydraulic testing machine.

Main features:

1. Automatic control of computer, automatic collection of test data, accurate pressure control, automatic generation of formatted report.

2. Safety measures: the high pressure system adopts double insurance preventive measures, i.e. pressure transmitter controls the water pressure, and the electric contact pressure gauge controls the maximum water pressure. It is possible that the water part is made of stainless steel and the surface is sprayed with plastic.

3. The overall design is reasonable and the maintenance is convenient and fast. Automatic constant pressure, slight leakage automatically adds constant pressure. The high pressure pipeline is multifold and durable.

Main parameters:

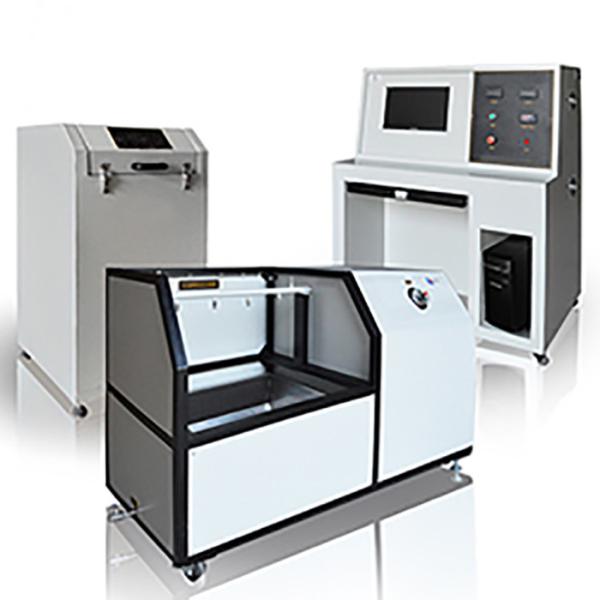

1. Main configuration: it is composed of three parts, which can be used to clean water pressure one body, fire extinguisher cartridge blasting test box and computer integrated control cabinet.

2. Pressure control range: 0-20mpa

3. High-pressure pump pressure: 0~25Mpa

4. High pressure water output: 20L/min

5. Pressure acquisition accuracy: plus or minus 0.005MPa

6. Pressure sensing mode: current transmitter mode

7. Pressure stabilizing device: 30Mpa

8. Pressure sampling interval: 0.1s

9. Frequency conversion range: 0-50hz

10. Power: AC380V, power: 7.5KW

11. Host volume: 1950x wide 850mmx height 1300mm (for reference only).

12. Explosion test box: 1200x wide 800mmx height 1300mm (for reference only).

13. Computer control cabinet: 1200x wide 800mmx height 1300mm (for reference only).

14. The entire weight of the instrument: 650kg.

Technical services:

1. 20 years of brand commitment, patent quality, quality assurance, superior performance, excellent quality and full service;

2. 20 years of brand communication, professional team, professional technical and technical consultant, and the cooperation of various quality inspection institutes and schools;

3. Provide free service for the whole year, five quality control procedures, from material input to product handover control quality, ensure that the user is absolutely authentic;

4. The brand effect absolutely guarantees the quality of the products, and we provide high quality products with high quality products and the highest cost performance to ensure the testing data, and the guarantee of the company;

5. 18 professional technicals will solve any problem in your products. Professional after-sales team will provide you with the most beautiful service;

6. Free teaching research, equipment maintenance and free upgrade of equipment server;
