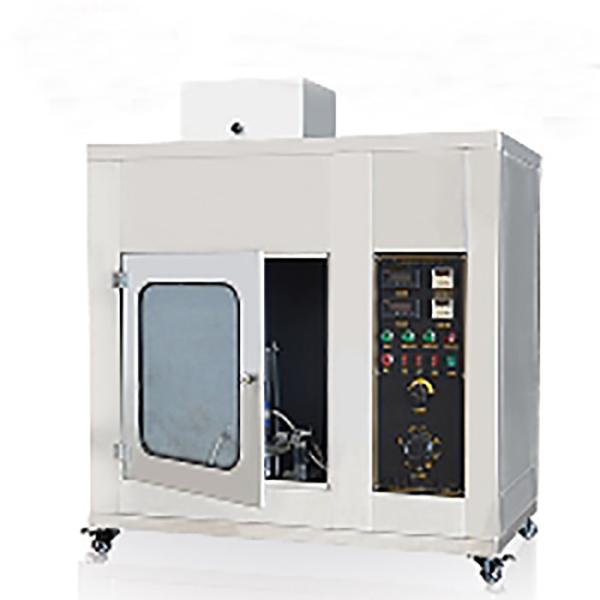

GB / T4207 - 2003 ZY6058 Electronic Testing Machine Leakage Surface Force 1.0N + 0.05 N

Scope of application:

Is suitable for lighting equipment, low-voltage electrical appliances, household appliances, machine tool electrical appliances, motor, electric tools, electronic instruments, electrical instrumentation, information technology and equipment of the production, research and quality inspection departments, can also be applied to insulation materials, engineering plastics, electrical fittings, accessories industry.

Using rectangular platinum electrode, the force of the two poles was 1.0n plus or minus 0.05. Voltage in 100 ~ 600 v (48 ~ 60 Hz) between the adjustable, short circuit current at 1.0 + / - 0.1 A when voltage drop should be no more than 10%, when the test loop, the short circuit when the leakage current is equal to or greater than 0.5 time keep 2 seconds, relay action, to cut off the current, the sample (s) indicating the unqualified.

Meet the standard:

Comply with GB/t4207-2003 test standard.

Main features:

It has the characteristics of reasonable structure, beautiful appearance, corrosion resistance, simple operation and accurate control.

Main parameters:

1, the electrode: two cross-sectional area is 2 mm x 5 mm rectangular platinum electrodes, side edge to 30 ° incline.

2. Surface force: 1.0N + 0.05 N.

3. Test voltage: adjustable between 100 V ~600V (48 ~ 60HZ).

4. Maximum test current: 3A.

5. Two electrode distance: 4.0mm.

6. Short circuit current is less than 10% when the current is 1A + 0.1a.

7. Drip device: the drop time interval can be arbitrarily set, the drop height is 30mm- 40mm.

8. The distance between electrodes and pallet height can be adjusted.

9. Electrode material: copper + platinum (the platinum purity meets the standard requirement 99%).

10. Test case volume: 0.5 m3, the machine box is made of high quality stainless steel.

11. Dimensions: L1130 mm * 630 mm x H1305mm.

12. Work power: AC220V, 50HZ; the total power is 2KW.

Technical services:

The equipment is guaranteed free for one year, the maintenance project is maintenance for the whole machine.

Free technical consultation, software upgrade and other services.

Provide regular inspection service to deal with abnormal conditions of machines.

Customer service response time is within 24 hours.

The warranty period still provides extensive software and hardware support and services.
