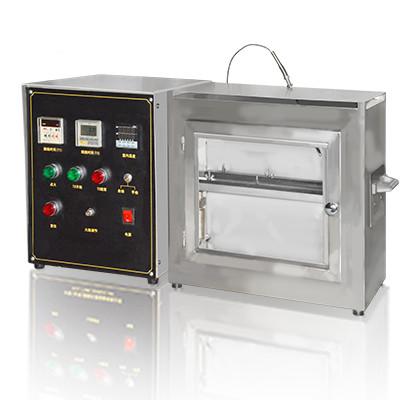

High Degree Of Automation Automobile Interior Decoration Material Combustion Testing Machine

Scope of application:

The combustion testing machine for automobile interior decoration is suitable for the combustion characteristics of the interior material of the car (passenger car, multi-purpose passenger car, passenger car and passenger car).

Meet the standard:

1. Meet the combustion characteristics of GB8410-2006 automotive interior materials;

2. FMVSS302 FMVSS302 federal transport vehicle interior decoration material combustion performance.

In line with the FMVSS302 Fedaral Motor Vehicle Safety Standard of No. 302, Flammability of interrior materials;

3. Meet the combustion performance and material technical requirements of TL1010 interior decoration materials;

4. Accord with TL1010Materialsforvehicleinteriors - Burningbehaviour MaterialRequirements; The interior decoration of GM6090M is consistent with the combustion.

5. It conforms to the combustion characteristics of DIN7520 automobile interior materials;

6. Meets the GM9070P standard requirements.

Main parameters:

1. Test station: 1 station, each time a sample is tested.

2. Instrument size: combustion box L385mm*W204mm*H360mm; Control box: L305X320X280mm.

3. Fixture: the machine has a u-shaped fixture 2 sets. A set of sample clamps for the standard sample (100MM) and another set for non-conforming samples (< 80mm).

4. Metal comb: L110*W40*H5 (mm) 1

5. Collection plate: 1 piece of stainless steel collector plate.

6. Ignition: high - voltage electronic ignition.

7. Flame time: 0 ~ 99s/min is optional.

8. Burning time: 0 ~ 99s/min can be set at will.

9. Burning Angle: 90 °.

10. Burner: internal diameter of nozzle is 9.5 mm.

11. Nozzle length: 100mm, with air conditioning hole.

12. Flame height: 38mm adjustable.

13. Digital display thermometer: 0 ~ 200 ℃, resolution: 0.1 ℃. (use thermometer + thermoelectric coupling instead of regular mercury glass scale thermometers, and resolve the shortcomings of glass thermometers easily broken, and the reading is intuitive, simple and accurate)

14. Temperature probe: K thermocouple.

15. Combustion gases: high purity liquefied gases. (Customer prepared)

16. Power: AC220V, 50Hz.
