50 Simplex And Duplex Soft Optical Fiber Cable Manufacturing Machinery Production Line
50 Simplex And Duplex Soft Optical Fiber Cable Manufacturing Machinery Production Line
50 Simplex And Duplex Soft Optical Fiber Cable Manufacturing Machinery Production Line
50 Simplex And Duplex Soft Optical Fiber Cable Manufacturing Machinery Production Line
50 Simplex And Duplex Soft Optical Fiber Cable Manufacturing Machinery Production Line
50 Simplex And Duplex Soft Optical Fiber Cable Manufacturing Machinery Production Line
50 Simplex And Duplex Soft Optical Fiber Cable Manufacturing Machinery Production Line
50 Simplex And Duplex Soft Optical Fiber Cable Manufacturing Machinery Production Line
Specifications
Brand Name :
HOOHA
Model Number :
50
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5 units per month
Delivery Time :
25 working days
Packaging Details :
PE foam ,wooden package
Single wire :
1 layers
material :
PVC,LSZH
finished diameter :
1.6mm-7.2mm
application :
optic fiber cable
market :
Brasil , spain , russia , Ukraine , Vietnam etc
voltage :
380v
electricity brand :
Siemens
technical support :
yes
workers for the production line :
2
machine weight :
4200 KG
technician :
flexible passport to oversea
line speed :
120-200 m/min
line length :
35 m
Description

Wire And Cable Machinery 50 Simplex And Duplex Soft Fiber Cable Production Line

Features

1; Automatic diameter feedback, wire diameter curve records traceable inquiries;

2; Vacuum pumping system is adjustable, and can be linked to the linear speed;

3; Active pay off, the tension is precisely constant with little additional loss;

4; Adopts OMRON temperature control meter, high accurate temperature control;

5; Doule bobbin automatic take-up, moving type take-up, stable and reliable operation;

6; Adopts the world famous automatic industrial computer control technology;

7; The device can be linked MES, ERP system, On-line tracking production management;

8; All facilities take high quality components, stability and reliability is high

Application:

1；Mainly used to produce 1.2mm--7.0mm simplex or duplex indoor fiber optic cable;

2；1--24F micro-breakout cable(MPO/MTP Patchcord used);

3；4--8F mini-breakout indoor fiber optic cable;

50 Simplex And Duplex Soft Optical Fiber Cable Manufacturing Machinery Production Line

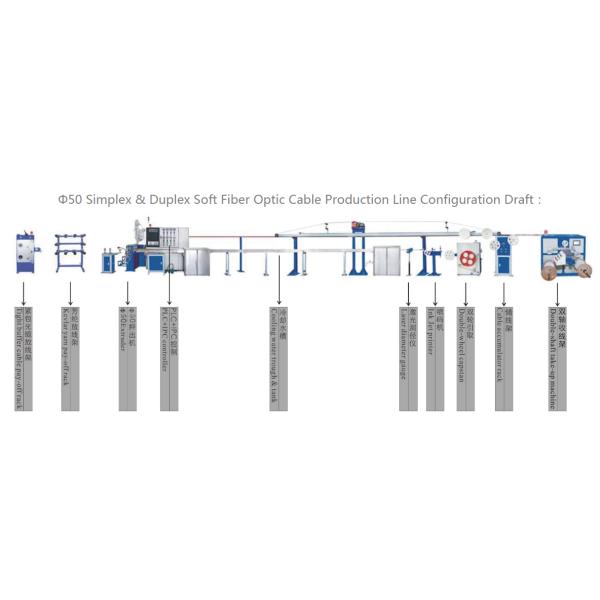

Technical parameters of soft cable production line :

Extruder type 50×26 Extruder
The extrusion material LSZH, PVC
Tight fiber diameter φ0.6mm φ0.9mm
Design speed 200m/min
Actual speed ≤120m/min
(according to cable diameter)
Specification of optical fiber pay-off reels 25km and 50km standard optical fiber reels
Tight fiber reel size φ300-400mm
Tight fiber pay off tension 1~3N
Heads no of aramid yarn 10heads
Pay- off tension of aramid yarn 3N~10N
Take up reel size φ400~630mm
(can adjust according to customer's demand)
Take-up tension 5-20N(can adjustable)
Center height of machine 1000mm from the background

Machine main electric brand


Motor: Siemens
Transducer: American Emerson transducer
Temperature controller: Omron Brand PID Smart type
Man-Machine interface: 10.2 inch color
PLC and Control Module: Siemens
Screw and Barrel: Made In China
Bearing: Japan NSK or other same quality brand
Low voltage electrical parts: Adopts SIEMENS, OMRON, SCHNEIDER brands,etc.

1.did you want but feel difficult to invest a cable plants ?

2.did you feel that it is too long to payback what you invest ?

3.did you feel that the project take too long time and not finish since lacking and difficult to get locally ?

4.did you feel that there is much waste during the project working since the not good plant from the beginning ?

if our experiences and technical can help you , please free to contact with us

50 Simplex And Duplex Soft Optical Fiber Cable Manufacturing Machinery Production Line

50 Simplex And Duplex Soft Optical Fiber Cable Manufacturing Machinery Production Line
