Specifications
Brand Name :
HOOHA
Model Number :
50
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 units per month
Delivery Time :
25 working days
Packaging Details :
PE foam ,wooden package
material :
PVC
copper wire :
1.5,2.5,4,6mm2
application :
house wire , power cord
market :
Algeria , Middle east , India
voltage :
380v
electricity brand :
Siemens
technical support :
yes
workers for the production line :
2
machine weight :
3350 KG
technician :
flexible passport to oversea
Description

USB Cable Making Wire And Cable Machinery With Great - Performance

Algeria USB cable process

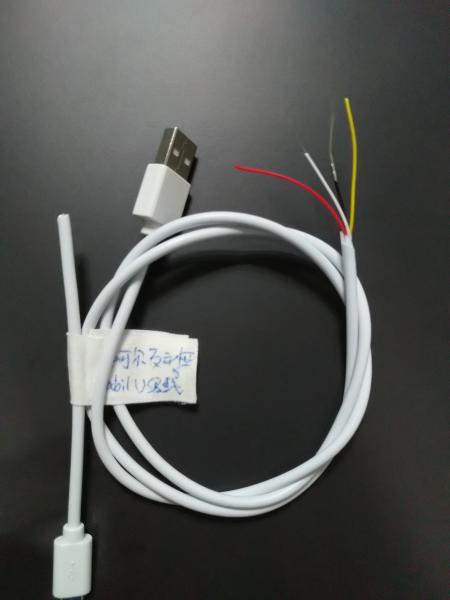

1.Construction : 7 x 0.10mm copper wire /tin-plated wire stranded , PVC insulated , 4 wires twist , PVC sheath .

A. bare copper conductor stranded :

Suitable for above seven strand of the silver jacketed wire, tinned wire, enameled wire, bare copper wire, copper-clad steel, copper cladding aluminum .

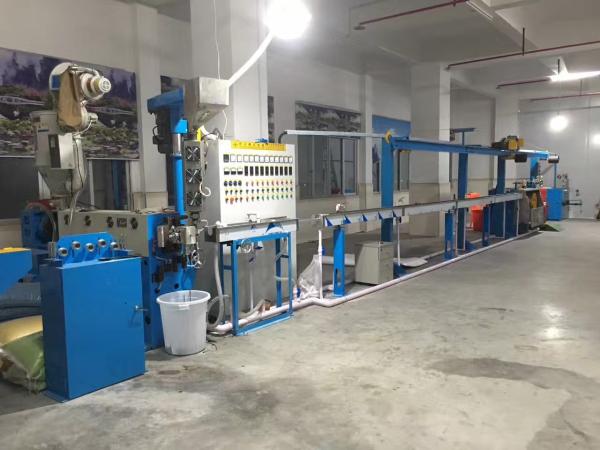

B. PVC insulated --- 50 cable extrusion machine

Application : Suit for PVC /PE plastic extrusion , maily used in fire alam cable , electrical wire , house wire , data cable , network cable etc insulation

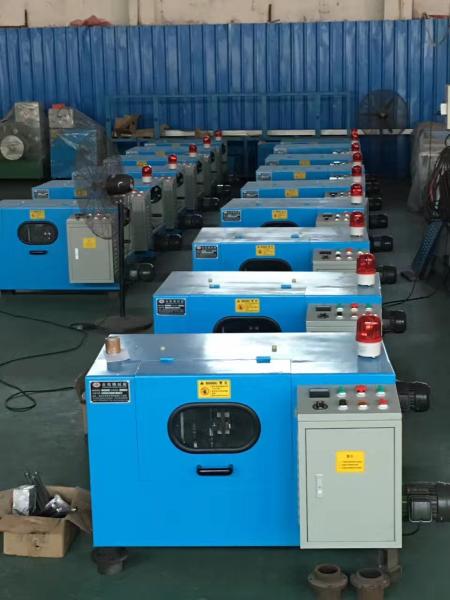

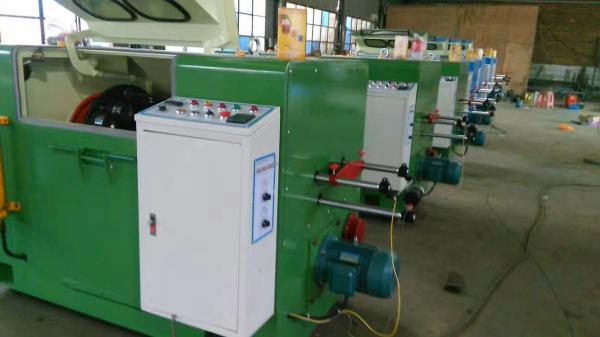

C . 4 wires twist machine -- Model 500mm high speed bunching machine , it is for 4 insulation wire twist .

D. PVC sheath --- 50 cable extrusion machine

Application : Suit for PVC /PE plastic extrusion , maily used in fire alam cable , electrical wire , house wire , data cable , network cable etc insulation

HOOHA -extrusion line
NO Model Screw Main Extruder Output Main extruder Motor Power Co-Extruder Output Co -extruder
Motor Power
Dia L/D Rotation
(mm) Ratio Speed
(r/min) (kg/h) (kw) (kg/h) (kw)
1 30 30 25 40~100 10~12 7.5 0 0
2 50 50 26 40~100 60~70 15 0 0
3 50+ 50 26 40~100 60~70 15 10~12 3.7
4 65 65 26 40~100 80~100 22 0 0
5 70+35 70 26 40~100 110~130 30 10~12 3.7
6 70+40 70 26 40~100 110~130 30 30~40 11
7 80 80 26 40~100 180~200 37 0 0
8 80+40 80 26 40~100 180~200 37 30~40 7.5
9 80+50 80 26 40~100 180~200 37 60~70 11.25
10 90 90 26 30~90 240~260 55 0 0
11 90+50 90 26 30~90 240~260 55 30~40 7.5
12 100 100 26 30~90 390 55 0 0
13 120 120 26 30~90 640 90 0 0
14 150 150 26 30~90 860 110 0 0
NO Product size Crosshead Heating Zones of cylinder
Line Speed
(mm) (m/min) (kw)
1 0.15~0.80 0.2~1.0 10~600 Fixed Single 4/6(U7) 4 zone 2.4kw
2 0.5~4.0 0.8~5.0 10~600 Fixed Single 4/6(U7) 4 z * 2.4kw
3 0.5~4.0 0.8~5.0 10~600 Fixed Single+ stripe 4/6(U7) 4 z * 2.4kw
4 1.0~10 2.0~12 10~600 Fixed /manual Single U7~U14 4 z * 3.0kw
5 1.6~12 2.0~15 10~700 Fixed /manual Single+ stripe U7~U14 5 z * 4.0kw
6 1.6~12 2.0~15 10~700 Fixed /manual Single+ stripe/skin U7~U14 5 z * 4.0kw
7 2.0~20 3.0~25 10~700 Fixed /manual Single Manual centering 5 z * 3.6kw
8 2.0~20 3.0~25 10~700 Fixed /manual Single+ stripe/skin Manual centering 5 z * 3.6kw
9 2.0~20 3.0~25 10~700 Fixed /manual Single+ stripe/skin Manual centering 5 z * 3.6kw
10 5.0~35 9~30 10~700 Fixed /manual Single Manual centering 5 z * 4.5kw
11 5.0~35 10~33 10~700 Fixed /manual Single+skin Manual centering 5 z * 4.5kw
12 4.0~30 5.0~50 10~220 manual Single Manual centering 5 z * 4.5kw
13 4.0~30 10~80 10~150 manual Single Manual centering 5 z * 4.5kw
14 4.0~30 15~120 10~100 manual Single Manual centering 5 z * 4.5kw

HOOHA -extrusion line
NO Model Pay off Tension Controller Cooling trough Capstan / Caterpillar
1st Cooling 2nd Cooling
Bobbin Power wheel Power
Dia. Dia.
(mm) (kw) (mm) (kw) (m) (m)
1 30 300~400 4 300 2.5kg.m 1.5 4m single Capstan
2 50 400~630 7.5 400 5.0kg.m 1.5 4m*2 double Capstan
3 50+ 400~630 7.5 400 5.0kg.m 1.5 4m*2 double Capstan
4 65 500~630 7.5 400 5.0kg.m 1.5 6m*2 double Capstan
5 70+35 500~630 7.5 400 5.0kg.m 1.5 6m*2 double Capstan
6 70+40 500~630 7.5 400 5.0kg.m 1.5 6m*2 double Capstan
7 80 630~800 7.5 500 10kg.m 1.5 6m*2 double Capstan
8 80+40 630~800 7.5 500 10kg.m 2 6m*2 double Capstan
9 80+50 630~800 7.5 500 10kg.m 2 6m*2 double Capstan
10 90 630~1000 7.5 800 10kg.m 2 6m*2 double Capstan/ Caterpillar
11 90+50 630~1000 7.5 800 10kg.m 2 6m*2 double Capstan/ Caterpillar
12 100 1250~1600 7.5 800 10kg.m 4 12m single Caterpillar
13 120 1600~2200 7.5 1250 10kg.m 4 12m single Caterpillar
14 150 2200~3150 7.5 1600 10kg.m 4 12m single Caterpillar
NO Capstan / Caterpillar Accumulator Take up Line Length
Power Power Bobbin Power
(KW) (kg.f) Dia. (kw)
(mm) (m)
1 Capstan 2.2 Φ375 Φ180 0.75 300~400 2.2 12~15m
2 Capstan 4 Φ375 Φ180~300 0.75~1.5 400~630 4 20~28m
3 Capstan 4 Φ375 Φ180~300 0.75~1.5 400~630 4 20~28m
4 Capstan 4 Φ500 Φ300 1.5 630~800 4 20~35m
5 Capstan 4 Φ500 Φ300~420 1.5 630~800 4 20~35m
6 Capstan 4 Φ500 Φ300~420 1.5 630~800 4 20~35m
7 Capstan 4 Φ630 Φ420 1.5 630~1000 4 25~38m
8 Capstan 4 Φ630 Φ420 1.5 630~1000 4 25~38m
9 Capstan 4 Φ630 Φ420 1.5 630~1000 4 25~38m
10 Capstan/ Caterpillar 5.6 Φ630 Φ420~800 1.5/3.7 800~1250 5.5 28~40m
11 Capstan/ Caterpillar 5.6 Φ630 Φ420~800 1.5/3.7 800~1250 5.5 28~40m
12 Caterpillar 5.6 1250~2200 5.5 32~55m
13 Caterpillar 5.6 1600~2500 5.5 32~55m
14 Caterpillar 5.6 2200~3150 5.5 32~55m
