Specifications
Brand Name :
HOOHA
Model Number :
HOOHA
Certification :
Ios Ce SGS
Place of Origin :
China
MOQ :
1
Price :
USD+40000-60000
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10/MONTH
Delivery Time :
35 WOEKING DAYS
Packaging Details :
WOODEN
Motor :
Germany-Siemens
Bearing :
Japan-NSK
Available Material :
PVC PE LSZH
Certificate :
Ios Ce SGS
Line Speed :
450/Min
Description

HDMI cable L.C.D HDTV cable DVD Cable wire extrusion machine


Application:

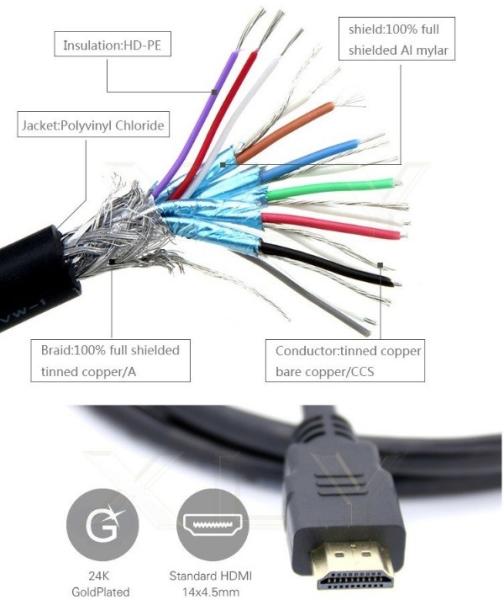

HDMI wire and cable production line. HDMI 1.3/HDMI 1.4. Apply to L.C.D HDTV DVD etc.


Low Noise Wire Extrusion Machine of LSZH Material HDMI Cable DVD Cable Maker


Low Noise Wire Extrusion Machine of LSZH Material HDMI Cable DVD Cable Maker
Producing Process:

1. Conductor bunching ( stranded) ---500mm High Speed Wire Twisting /Bunching Machine

2. Extruded core wire---φ50+35 Foaming (Chemical foam) extrusion production line

3. Taping ---Single-layer taping machine

4. Cabling --- φ630 Cantilever single twisting machine

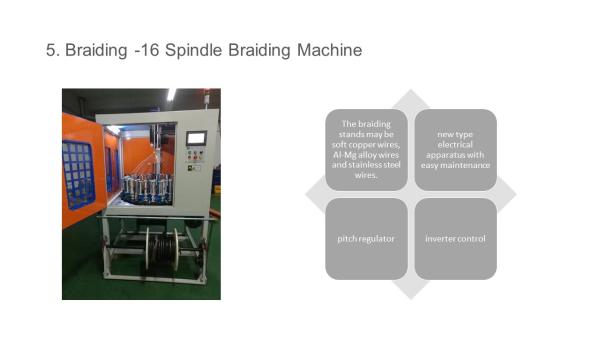

5. Braiding ---16 Spindle Braiding Machine

6. Extrude jacket--- 70mm extrusion machine

Please contact me to get all the specifications of this production line.


Extrusion Line Consisting Components
1. Double head /magnetic powder tension Pay off stand
2. Dancer
3. Main extruder
4. Automated loader & dryer
5. Color dozer
6. Auto centering Crosshead
7. Single layer Moving trough
8. Main cooling trough
9. Water wiper
10. Diameter controller
11. Online Mark printer
12. Accumulator
13. Capstan
14. Spark tester
15. Meter counter
16. Dual bobbin type Take up
17. Master control possible Control box


Technical Parameter

Machine type 35 50 60 70 80 90 100 120
Pay off mode Pay off

Jananese

Type

Jananese

Type

 Jananese type Jananese type Jananese type

None spindle

Pay off

None spindle

Pay off
Pay off bobbin Φ300-Φ400 Φ400- Φ630 Φ 400- Φ630 Φ400- Φ630 Φ500- Φ630 Φ500- Φ800 Φ800- Φ1000 Φ800-Φ1250
Screw dia. Φ 35 Φ 50 Φ60 Φ70 Φ80 Φ 90 Φ100 Φ 120
Screw length-dia. Ratio 1/26 1/26 1/26 1/26 1/26 1/26 1/26 1/26
Temperature control 6 6 6 7 7 7 8 10
Extrusion capacity 50kg/h 90kg/h 120kg/h 150kg/h 180kg/h 250kg/h 300kg/h 400kg/h
Main unit power 10HP 15HP 25HP 30HP 40HP 50HP 75HP 100HP
Fan section 2 3 3 4 4 5 6 7
Wire storage lenght 250m 250m 250m 250m 250m 250m 300m 300m
Capstan motor 3HP 3HP 5HP 5HP 7.5HP 7.5HP 10HP 10HP
Take up motor 3HP 3HP 5HP 5HP 7.5HP 7.5HP 7.5HP 10HP/15HP
Take up mode Double bobbiion tke up Double bobbiion tke up Double bobbiion tke up Double bobbiion tke up Double bobbiion tke up Double bobbiion tke up Double bobbiion tke up

Double

Bobbiion tke up
Take up speed 600m/min Max. 500m/min Max. 500m/min

500m

/min

400m

/min

400m

/min

250m/

min

 200m/min

Our Service

Pre-sale Services

1. Sport expedition and Professional feasibility proposal;

2. Equipment configuration, Model Reference and Equipment technical advice.

3. For customers invest, Matching, Material selection, Development personnel and Training full-service.

After-sales Service

1. Regular maintenance and product tracking service;

2. Cost price for required parts in life;

3. Provide high quality and fastest efficient after service.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
