380V 50HZ Copper Wire Twisting Machine , Aluminum Wire Stranding Machine
380V 50HZ Copper Wire Twisting Machine , Aluminum Wire Stranding Machine
380V 50HZ Copper Wire Twisting Machine , Aluminum Wire Stranding Machine
380V 50HZ Copper Wire Twisting Machine , Aluminum Wire Stranding Machine
380V 50HZ Copper Wire Twisting Machine , Aluminum Wire Stranding Machine
380V 50HZ Copper Wire Twisting Machine , Aluminum Wire Stranding Machine
Specifications
Brand Name :
HOOHA
Model Number :
HOOHA-1000/1250
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5 sets/month
Delivery Time :
35 working days
Packaging Details :
plastic pe packing
Usage :
Twisting
Cooper Wire Individual :
1.5-4.8mm
Weight :
12500kg
copper wire :
35sqmm
speed :
600-700RPM
power :
380V 50HZ
Motor :
Siemens
Inveter :
YASKAWA
Description

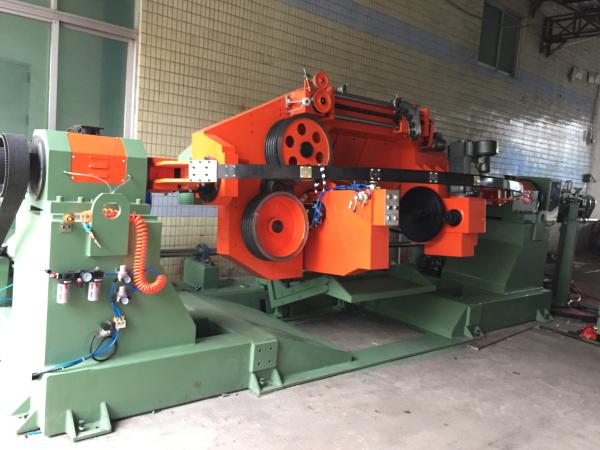

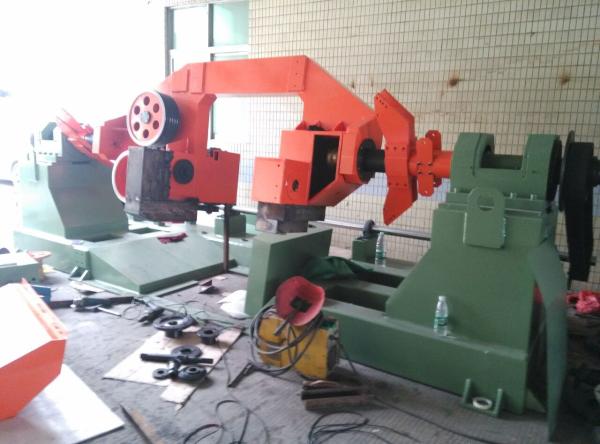

380V 50HZ Copper Wire Twisting Machine , Aluminum Wire Stranding Machine


The specifications of the bow type bunching machine


Machine type


Machine type
HOOHA-φ1250D

Wire product of stand
Special use twist aluminum and copper round press dowm the conductor

Cooper wire individual
Φ1.5-4.8

Finish standed wire/max.
10 mm φ/max

Finish standed wire/Max.
15mm φ/max

Section of strand-twisting(Flexible strand)
3.5÷70mm2(6AWG÷450MCM)

Section of strand-twisting(Semi-frametwisting1+6)
3.5÷50mm2(6÷1/0AWG)

Section of compaction Cu
3.5÷50mm2(6AWG÷300MCM)

Section of compaction Al
3.5÷70mm2(6AWG÷301MCM)

Line speed/Max.
150mpm/max

Stand pitch(mm)
40-350mm

60
8000rpm/max.(1600TPM)

Load weight/Max.
3000KG

Max.compaction angle
13%

Traction pulley
2×φ600mm

Standing Direction
S,Z Direction

Main motor(DC/AC/HP)
55kw D.C. motor

Drive of Capstan(DC/AC/HP)
30kw D.C. motor

Drive of take-up unit(DC/AC/HP)
7.5kw D.C. motor

Drive of traverser
0.75kw Inverter motor

Drive of liading&unloading
1.5kw Inverter motor

Power control
Digital type DC control

Revise system
Line speed synchronous auto control

Spool bobbin size OD
OD:φ1250 mm/Max

Spooler size OW
950×800×80(mm)

Control system
PLC man-machine interface

Tension control
Coiling motor indicates tension control

Lay stranding pitch
PLC digitization setting

Operating direction
Left/ right hand machine

Traversing width
1000mm/Max

Traversing unit
Wire diameter setting by digital type

Take-up type
Reel taken between pneumatic pintles

Reel loading & unloading
Liquefaction automatic positioning

Brake system
Disc brake

Bearing lubricative type
Oiling regularly

Air pressure
6kg/cm2

Vogtage
380V 50Hz

Noise level
80db

Machine size
(L)6030×(W)2280×(H)2280mm

Weight
12500kg


380V 50HZ Copper Wire Twisting Machine , Aluminum Wire Stranding Machine
