Specifications
Brand Name :
HOOHA
Model Number :
GEM-OF SZ
Certification :
CE\ISO\SGS
Place of Origin :
Dongguan
MOQ :
1 set
Price :
US$63211/1set
Payment Terms :
L/C, T/T
Delivery Time :
35 working days
Packaging Details :
PE film Package
warranty :
12 months
screw :
single-screw
Condition: :
New
Pay-off Reel Specification: :
Pn800-Pn1250mm
Production Capacity: :
5 Sets/Month
Production Speed :
80m/Min
Description

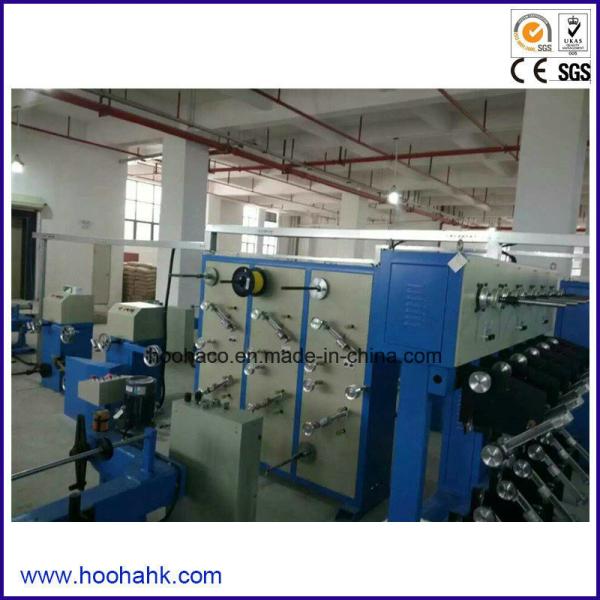

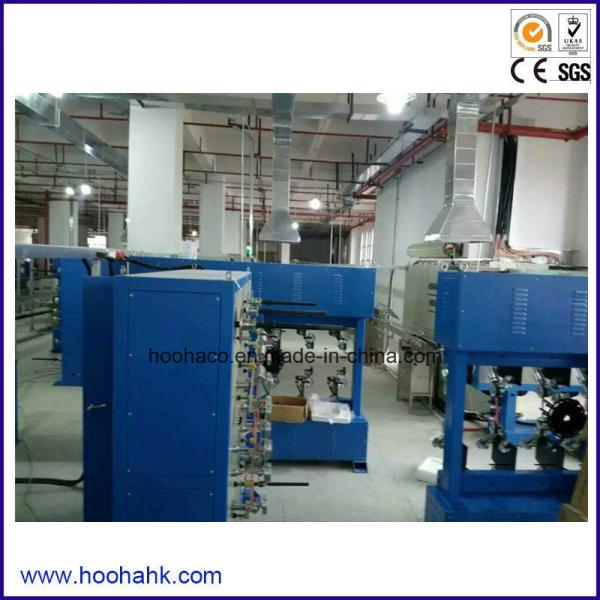

Outdoor Optical Cable Extruder Production Line

Video link on Youtube:https://www.youtube.com/results?search_query=hoohahk.com


CE ISO SGS Outdoor Optical Cable Extruder Production Line With Single-Screw
Professional and Strong Manufacture and Sells Team:

CE ISO SGS Outdoor Optical Cable Extruder Production Line With Single-Screw

Specifications

1,SZ stranding machine
2,production speed:80m/min
3,Automatic high-speed
4,double wheels
5,single screw

CE ISO SGS Outdoor Optical Cable Extruder Production Line With Single-Screw

1,Equipment application :
SZ stranding machine mainly used for SZ stranding and laying-up of ¢ 2.0-¢4.5mm loose tube oil-filled optic-fiber.

2,Technical parameters of SZ stranding equipment:

reinforcement core pay-off reel specification PN800-PN1250MM
tension wheel diameter ø800mm(double wheels)
pay-off reels no of optical-fiber bundle tube 12reels(according to clients' requirement)
Max laying-up outer diameter ø32mm
production speed max.80m/min
laying-up pitch(single screw ) (80-1500mm)±5-10mm
SZ stranding angle ±(4-24)π
max revolution speed of cotton wrapping head 3000rpm
max revolution speed of SZ stranding heads 850rpm
cotton wrapping pitch 20mm-50mm
reinforcement core pay-off tension 50N-300N
take-up tension 50-150N
take-up reel specification PN1000-PN1800
excess loss of laying-up 0.02db/km


3,Main composition are as follows:

NO All parts' name and specification QTY
1 Single shaft strengthen core pay-off rack 1SET
2 tension dancer 1SET
3 Optical fiber tube drive pay-off rack 12set
4 SZ stranding device 1set
5 double-deck concentric with the points yarn device 1set
6 single-deck yarn and strip longitudinal device 1set
7 800KG pedrail type haul-off machine 1set
8 Roller holder 1set
9 Single shaft cantilever take-up line machine 1set
10 Electric apparatus, main temperature control cabinet(PC+PLC Computer process control) 1set



4.GEM Spare Parts Brands:
Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF

5.Afetr service
1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online

6.Contact information:

Phone: +8613763134250
Http//:www.hoohahk.com
http://hoohaco.en.made-in-china.com/
Add:No. Beice District, Humen Town,
Dongguan City, Guangdong Province,China

7.Where are we:
Hongkong airport to Humen by boat 2 hours
Guangzhou airport to Humen by car 2 hours
Shenzhen airport to Humen by car 1 hour
Guangzhou South high speed train station to Humen 20 minutes
Shenzhen North high speed train station to Humen 20 minutes
