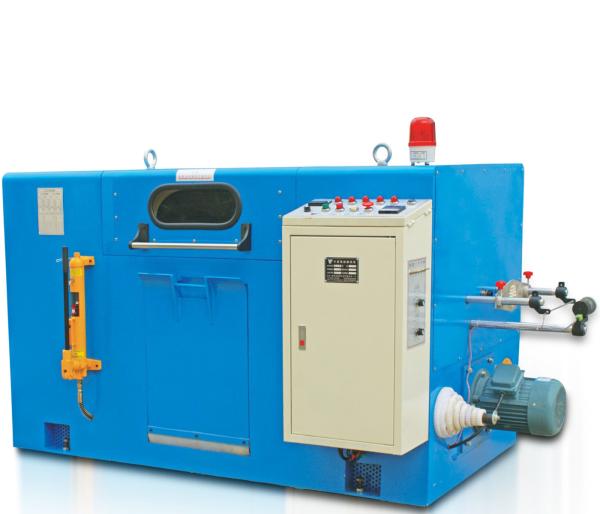

300mm 500mm 650mm Electronic Wire Twisting Machine , Twist Wire Machine
300mm 500mm 650mm Electronic Wire Twisting Machine , Twist Wire Machine
300mm 500mm 650mm Electronic Wire Twisting Machine , Twist Wire Machine
300mm 500mm 650mm Electronic Wire Twisting Machine , Twist Wire Machine
300mm 500mm 650mm Electronic Wire Twisting Machine , Twist Wire Machine
300mm 500mm 650mm Electronic Wire Twisting Machine , Twist Wire Machine
300mm 500mm 650mm Electronic Wire Twisting Machine , Twist Wire Machine
300mm 500mm 650mm Electronic Wire Twisting Machine , Twist Wire Machine
Specifications
Brand Name :
HOOHA
Model Number :
HOOHA-300-650
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets/month
Delivery Time :
35 working days
Packaging Details :
plastic or wooden packing
Usage :
Twisting
Cooper Wire Individual :
0.05-0.64mm
Weight :
800-2000kg
copper wire :
0.0317-6sqmm
speed :
1800-3000RPM
power :
5-10HP
Motor :
Siemens
Inveter :
YASKAWA
Description

300mm 500mm 650mm Electronic Wire Twisting Machine , Twist Wire Machine

Application of the equipment: It is suitable for stranding of the copper wires with more than seven strands, such as electronic wires, power wires, bare copper wires, network wires, etc.

1.The specifications of 300-650 bunching machine

Model No. 300 500 650
Copper wire Dia. 0.05-0.25mm 0.10-0.45mm 0.18-1.00mm
Twisting sectional area 0.035-0.45mm2 0.05-2.50mm2 0.18-6.00mm2
Max. main shaft speed 3000rpm 3000rpm 2000rpm
Twisting pitch range 2.00-17.17mm 6.30-50.40mm 11.61-99.04mm
Traversing type transverse and distance can be adjusted by bearing bransverse
Bobbin loading & unloading type hydraulic type
Bobbin Dia. 300mm 500mm 630mm
Brake system magnetic brake
Motor power 4kw 5.5kw 7.5kw
Main shaft center height 630mm 700mm 850mm
Auto stop unit auto stop when reach setting length, and wire broken inside and outside
Operating direction left/right hand machine

300mm 500mm 650mm Electronic Wire Twisting Machine , Twist Wire Machine
300mm 500mm 650mm Electronic Wire Twisting Machine , Twist Wire Machine

300mm 500mm 650mm Electronic Wire Twisting Machine , Twist Wire Machine
