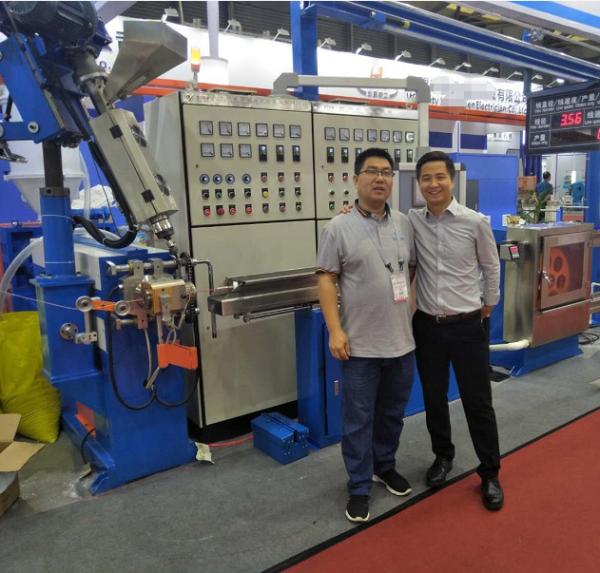

Siemens Motor High Speed Wire Extrusion Machine For Power Cable Manufacturing


1. Professional and Strong Manufacture and Sells Team

2. General Description
Extruders are mostly used for various wire & cable insulation sheathing stripping & skinning with single, double or triple extrusion layers available by using different cross heads. The changed screw is suitable for extrusion of low smoke halogen free, nylon ,PVC, PE and other plastic material. Based on the needs of our clients we have custom-made wire and cable extruders to meet their specific applications.


Feature
1. High configuration,main electric parts are importing,
2. The screw surface is carbonized and quenched, electroplated with hard cr. ,Gear tooth surface abrasion resistance.
3. big quantity of extrusion,Low energy consumption of the equipment,
4. high production efficiency than other supplier, high gloss surface,
5. small temperature difference good stability,
6. strong continuity of working, convenient operation, long service life.


Technique Specifications:
Line data:
- Process material: PVC/XLPE
- Process solution: single layer/ color stripping
- Conductor section: 0.75mm2to 10mm2 (single core)
Or up to 4 X 6 mm2multi core cable
- Insulation thickness: 0.5mm---1.5mm
- Size after insulation: 1.5mm---15mm
- Linear speed: Max. 450m/min (based on the cable diameter)
- Line axis height: 1000mm
- Machine color: Based on customer's requirement
- Machine direction: Based on customer's requirement
- Power: 3P/ 380V / 50Hz
- Total line length: about 30 m
Consisting Components:
1, double-shaft pay-off rack
2, straightener platform
3, main extruder (70+50+50)
4, automatic dryer and hopper
5, plc electric apparatus main control cabinet
6, Double layer movable trough
7, laser diameter gauge or Digital Diameter controller
8, high speed printing machine
9, double-wheels capstan
10, Meter counter
11, horizontal type wire-accumulator
12, power frequency sparker
13, double-shaft take-up machine

3. HOOHA Spare Parts Brands:
Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF
4. Afetr service
1). Delivery dates: 45 days
2). Payment: TT or L/C
3). Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online
Contact information
Add: No.Beice District, Humen Town, Dongguan City, Guangdong Province,China
If the machine is not suitable for your wire spec., please contact me.

We do not sell single products, but we offer high-quality solutions in order to maximize your profit. we have always invested in technology and training in order to build stable and high-skilled teams of engineers who are able to offer clients the best possible solution. Our range of solutions stretches from the wire drawing to the extrusion and bunching.
