Specifications
Brand Name :
HOOHA
Model Number :
70+40
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5 units per month
Delivery Time :
25 working days
Packaging Details :
PE foam ,wooden package
Single wire :
2 layers
material :
PVC
copper wire :
1.5,2.5,4,6,10 mm2
application :
signal, power cord
market :
India
voltage :
380v
electricity brand :
Siemens
technical support :
yes
workers for the production line :
2
machine weight :
4000 KG
technician :
flexible passport to oversea
Description

Wire And Cable Machinery India 70+40 Jacket Sheat Extrusion Line Wire Making Machinery

Machine technical feature

1.Concentricity: 93-97% OD tolerance: Solid +/-0.005
2.Wire specification: Φ1.5mm-12mm
3.The highest output: 140KG/hr The highest wire speed: 400M/MIN
4.Body temperature will be controlled within ±1ºC
5.Extrusion material: PVC, SR-PVC, PE etc.
6.Screw parameters:L/D ratio:26;1,compression ratio:2.7-3.2,screw material:38CrMoAIA,vacuum heating treatment,surface grinding polishing chromium plating.

Machine parts

No. Parts name&Specs. Qty
1 ø500-630mm dual-heads passive pay off with magnetic powder 1set
2 ø300mm bumper bracket 1set

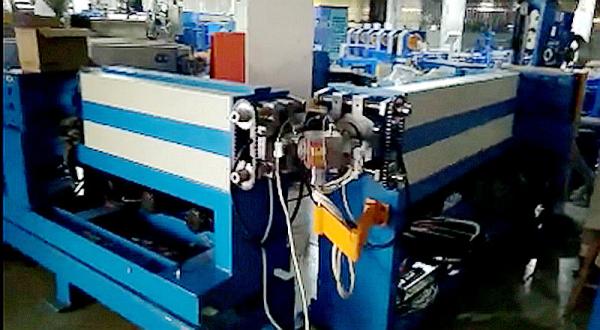

3 ø70mm main extruder +40/50 horizontal extruder 1set

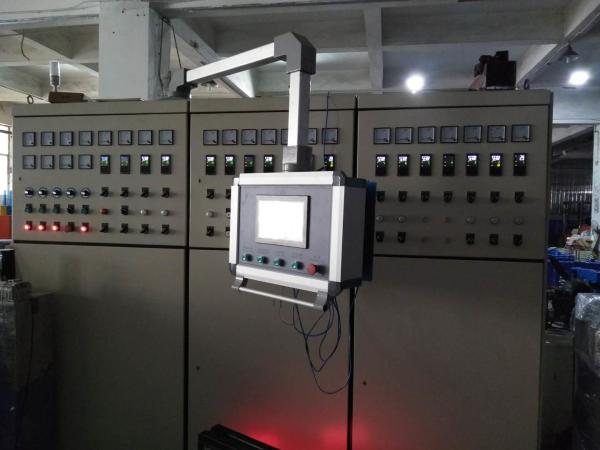

4 PLC SIEMENS Electrical control cabinet 1set
5 Centering free of adjustable crosshead 1set
6 1.5M movable cooling water tank 1set
7 Laser diameter tester (Eectrl) 1set
8 7.5M single layer cooling water tank 1set
9 10M high precision horizontal wire accumulator 1set
10 ø570mm dual-wheels capstan 1set
11 High frequency spark tester 1set
12 ø500-630mm dual-axis take up 1set

HOOHA-extrusion line
NO Model Screw Main Extruder Output Main extruder Motor Power Co-Extruder Output Co -extruder
Motor Power
Dia L/D Rotation
(mm) Ratio Speed
(r/min) (kg/h) (kw) (kg/h) (kw)
1 30 30 25 40~100 10~12 7.5 0 0
2 50 50 26 40~100 60~70 15 0 0
3 50+ 50 26 40~100 60~70 15 10~12 3.7
4 65 65 26 40~100 80~100 22 0 0
5 70+35 70 26 40~100 110~130 30 10~12 3.7
6 70+40 70 26 40~100 110~130 30 30~40 11
7 80 80 26 40~100 180~200 37 0 0
8 80+40 80 26 40~100 180~200 37 30~40 7.5
9 80+50 80 26 40~100 180~200 37 60~70 11.25
10 90 90 26 30~90 240~260 55 0 0
11 90+50 90 26 30~90 240~260 55 30~40 7.5
12 100 100 26 30~90 390 55 0 0
13 120 120 26 30~90 640 90 0 0
14 150 150 26 30~90 860 110 0 0
NO Product size Crosshead Heating Zones of cylinder
Line Speed
(mm) (m/min) (kw)
1 0.15~0.80 0.2~1.0 10~600 Fixed Single 4/6(U7) 4 zone 2.4kw
2 0.5~4.0 0.8~5.0 10~600 Fixed Single 4/6(U7) 4 z * 2.4kw
3 0.5~4.0 0.8~5.0 10~600 Fixed Single+ stripe 4/6(U7) 4 z * 2.4kw
4 1.0~10 2.0~12 10~600 Fixed /manual Single U7~U14 4 z * 3.0kw
5 1.6~12 2.0~15 10~700 Fixed /manual Single+ stripe U7~U14 5 z * 4.0kw
6 1.6~12 2.0~15 10~700 Fixed /manual Single+ stripe/skin U7~U14 5 z * 4.0kw
7 2.0~20 3.0~25 10~700 Fixed /manual Single Manual centering 5 z * 3.6kw
8 2.0~20 3.0~25 10~700 Fixed /manual Single+ stripe/skin Manual centering 5 z * 3.6kw
9 2.0~20 3.0~25 10~700 Fixed /manual Single+ stripe/skin Manual centering 5 z * 3.6kw
10 5.0~35 9~30 10~700 Fixed /manual Single Manual centering 5 z * 4.5kw
11 5.0~35 10~33 10~700 Fixed /manual Single+skin Manual centering 5 z * 4.5kw
12 4.0~30 5.0~50 10~220 manual Single Manual centering 5 z * 4.5kw
13 4.0~30 10~80 10~150 manual Single Manual centering 5 z * 4.5kw
14 4.0~30 15~120 10~100 manual Single Manual centering 5 z * 4.5kw

Main parts brand
1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens


Our Service


Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install and how to use the machine
* Customized design support. * Engineers available to service machinery overseas.

70+40 Jacket Sheat Extrusion Line , Low Noise Wire Making Machine For Power Cord

70+40 Jacket Sheat Extrusion Line , Low Noise Wire Making Machine For Power Cord

How to start wire and cable business ?

1.did you want but feel difficult to invest a cable plants ?

2.did you feel that it is too long to payback what you invest ?

3.did you feel that the project take too long time and not finish since lacking and difficult to get locally ?

4.did you feel that there is much waste during the project working since the not good plant from the beginning ?

if our experiences and technical can help you , please free to contact with us

70+40 Jacket Sheat Extrusion Line , Low Noise Wire Making Machine For Power Cord
