Specifications
Brand Name :
HOOHA
Model Number :
80+35
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 units per month
Delivery Time :
25 working days
Packaging Details :
PE foam ,wooden package
material :
PVC
copper wire :
0.5 , 0.75 , 1.5 , 2.5
flexible wire :
1,2,3 4 cores
application :
power cable
market :
Algeria
voltage :
380v
electricity brand :
Siemens
workers for the production line :
2
technician :
install , training , debug , manufacturing
engineer teams :
30 years , 35 years , 20 years
sales can operate machine :
yes
export experiences :
10 years
Description

Wire And Cable Machinery, Algeria Power Cable Making Equipment , Wire And Cable Extrusion Machine

Application :

Suit for PVC /PE plastic extrusion , maily used in fire alam cable , electrical wire , house wire , data cable , network cable , building cable etc insulation and sheath

Machine devices as reference

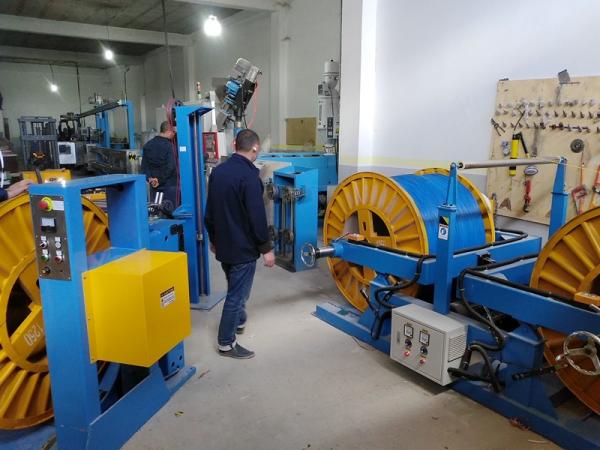

1. Pay off stand
2. Dancer / straigter
3. 80mm extrusion machine
4. Automated loader & dryer
5. Auto central Crosshead
6. Single /Double layer Moving trough
7. Main cooling trough
8. Water wiper
9. Digital diameter controller
10. Mark printer( selectable )
11. Accumulator
12. Capstan
13.15KV Spark tester
14. Meter counter
15. Dual shaft type Take up
16. Master control cabinet OF PLC

18.35mm strip extruder machine / 50 extrusion machine (co-extrude)

3. MAIN PARTS BRAND


1. Motor: Siemens
2. Inverter: Germany-Siemens or YASKAWA Japan
3. Electric equipment: Siemens and Omron
4. Bearing: NSK from Japan
5. Belt: Mitsubishi

HOOHA-extrusion line
NO Model Screw Main Extruder Output Main extruder Motor Power Co-Extruder Output Co -extruder
Motor Power
Dia L/D Rotation
(mm) Ratio Speed
(r/min) (kg/h) (kw) (kg/h) (kw)
1 30 30 25 40~100 10~12 7.5 0 0
2 50 50 26 40~100 60~70 15 0 0
3 50+ 50 26 40~100 60~70 15 10~12 3.7
4 65 65 26 40~100 80~100 22 0 0
5 70+35 70 26 40~100 110~130 30 10~12 3.7
6 70+40 70 26 40~100 110~130 30 30~40 11
7 80 80 26 40~100 180~200 37 0 0
8 80+40 80 26 40~100 180~200 37 30~40 7.5
9 80+50 80 26 40~100 180~200 37 60~70 11.25
10 90 90 26 30~90 240~260 55 0 0
11 90+50 90 26 30~90 240~260 55 30~40 7.5
12 100 100 26 30~90 390 55 0 0
13 120 120 26 30~90 640 90 0 0
14 150 150 26 30~90 860 110 0 0
NO Product size Crosshead Heating Zones of cylinder
Line Speed
(mm) (m/min) (kw)
1 0.15~0.80 0.2~1.0 10~600 Fixed Single 4/6(U7) 4 zone 2.4kw
2 0.5~4.0 0.8~5.0 10~600 Fixed Single 4/6(U7) 4 z * 2.4kw
3 0.5~4.0 0.8~5.0 10~600 Fixed Single+ stripe 4/6(U7) 4 z * 2.4kw
4 1.0~10 2.0~12 10~600 Fixed /manual Single U7~U14 4 z * 3.0kw
5 1.6~12 2.0~15 10~700 Fixed /manual Single+ stripe U7~U14 5 z * 4.0kw
6 1.6~12 2.0~15 10~700 Fixed /manual Single+ stripe/skin U7~U14 5 z * 4.0kw
7 2.0~20 3.0~25 10~700 Fixed /manual Single Manual centering 5 z * 3.6kw
8 2.0~20 3.0~25 10~700 Fixed /manual Single+ stripe/skin Manual centering 5 z * 3.6kw
9 2.0~20 3.0~25 10~700 Fixed /manual Single+ stripe/skin Manual centering 5 z * 3.6kw
10 5.0~35 9~30 10~700 Fixed /manual Single Manual centering 5 z * 4.5kw
11 5.0~35 10~33 10~700 Fixed /manual Single+skin Manual centering 5 z * 4.5kw
12 4.0~30 5.0~50 10~220 manual Single Manual centering 5 z * 4.5kw
13 4.0~30 10~80 10~150 manual Single Manual centering 5 z * 4.5kw
14 4.0~30 15~120 10~100 manual Single Manual centering 5 z * 4.5kw
