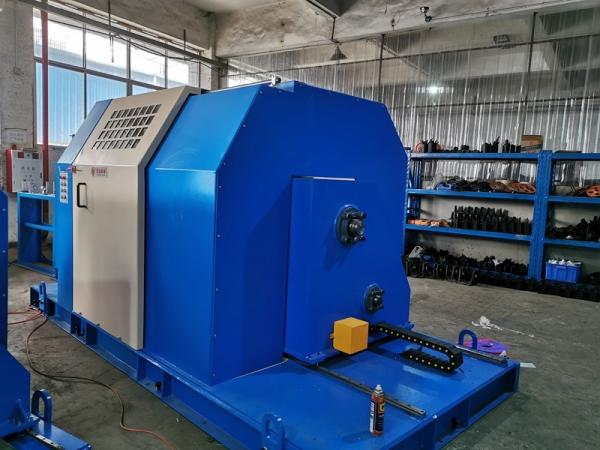

Cat6 CAT6A CAT7 Cable Making Machine , Cantilever Cable Twist Machine
Cat6 CAT6A CAT7 Cable Making Machine , Cantilever Cable Twist Machine
Cat6 CAT6A CAT7 Cable Making Machine , Cantilever Cable Twist Machine
Cat6 CAT6A CAT7 Cable Making Machine , Cantilever Cable Twist Machine
Cat6 CAT6A CAT7 Cable Making Machine , Cantilever Cable Twist Machine
Cat6 CAT6A CAT7 Cable Making Machine , Cantilever Cable Twist Machine
Specifications
Brand Name :
HOOHA
Model Number :
800-1250
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets/month
Delivery Time :
35 working days
Packaging Details :
plastic or wooden packing
Usage :
Twisting
Suited for cable :
CAT6/CAT6A,CAT7,CAT5
Single inlet diameter :
1mm-5mm(max)
Motor :
Siemens
Inveter :
YASKAWA
cable machine designer :
25 years
wire and cable analyst :
20 years experience on wire and cable manufacturing
market :
Syria, Algeria,Indonesia,Thailand etc
Description

Cat6,CAT6A,CAT7 Cable Making Machine , Cantilever Cable Twist Machine

Application

The machine manly apply to multiple cable of data cable,HDMI wire cable,,power cable, naked copper wire(fine wire),

shielding layer cable, control cable etc.

Configuration

Singles stranding main unit, electric control system,Centre wrapping machine, side-way giving wrap & wire device.

cable twist machine traits

1.computer control pitch,non-tension traction wheel,motion wiring cable passing path,increase the traction wheel diameter to

reduce the wire cable curve.

2.Stranding main unit cantilever arm structure,revolving body with low rotating inertia,high rpm and stable speed.

3.Coiling box move trays left and right along the slide way,pitch stable with stepless adjusting,stranding wire cable ranking neat,

balance tension.

4.Compared with traditional single stranding machine,it has the advantage of avoiding screw rod breaking at high speed.

5.Tray loading and discharging easy with low labour consumption

Cantilever single cable twist machine
Model 630mm 800mm 1000mm
Feed wire shaft size 400-630mm 400-630mm 400-630mm
Take-up shaft size Outer diameter 630×
inner width 475 x Outer width 415 x Outer hole 56mm		 Outer diameter 800inner width 600 x Outer width500 x Outer hole 80mm Outer diameter 1000 x inner width750 x Outer width 630 x Outer hole 100mm
Suitable for wire diameter 0.6mm-3.0mm(Soft structure) 1.0mm-3.0mm(Soft structure) 1.2mm-5.0mm(Soft structure)
Max twisting outer diameter 15mm 20mm 25mm
Lay length 20mm-200mm 30mm-300mm 30mm-350mm
Rotate speed 1000rpm 800rpm 600rpm
Take-up tension Pneumatic tension freely adjust
Method of traverse According to the wire bobbin self speed and moving step-less speed regulation
Traverse pitch 2mm-12mm 3mm-20mm 3mm-30mm
Stranded wire direction Direction S and Z freely selected
Taping method Center lapping or side lay straight packing
Upper and lower wire bobbin Hydraulic lifting
