Professional HH52161 Halogen PH And Conductivity Test Machine 12 Month Warranty
Professional HH52161 Halogen PH And Conductivity Test Machine 12 Month Warranty
Specifications
Brand Name :
HOOHA
Model Number :
HH52161
Certification :
ISO CE
Place of Origin :
DONGGUAN
MOQ :
1 set
Price :
10000-50000USD/PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5 pcs/month
Delivery Time :
30 working days
Packaging Details :
wood packing
standard 1 :
IEC 60754-1~2-1994
Standard 2 :
GB/T 17650.1~2-1998
Installation size :
2300 mm (W) × 600 mm (D)
Power supply :
AC 220V, 50/60Hz, 21A
Payment :
TT90% deposit, 10% before delivery
Delivery :
30 working days
warranty :
12 month
color :
white
Description

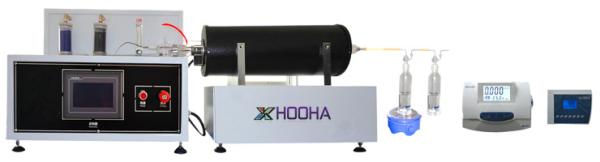

HH52161 Halogen, PH & Conductivity Tester

Product description:

Halogen, PH & conductivity tester is used to measure gas volume of Halogen Acid (IEC 60754-1), pH concentration (PH Meter, Hydrogen ions, IEC 60754-2), Conductivity (IEC 60754-2) and etc from a wire (cable) by radiant heat in the Tube Furnace (IEC 60754-1: 800℃, IEC 60754-2: 950℃)

Standards:

• IEC 60754-1~2-1994

• GB/T 17650.1~2-1998

Technical parameters:

• Activated carbon (air filtering): filter

for filtering the supplied air

• Silica gel (air drying): a device for

drying the supplied air

• Flowmeter: 0.1～1L/min, a device to control the flow of the air source

• Thermocouple: K type of high temperature resistant stainless thermocouple,

range: 0 ～ 1300℃

• Quartz tube: φ40×800

• Magnetic stirrer: an stirrer used for mixing combustion gas in distilled water

• PH meter: a device used for measuring the pH acidity (ray magnetic)

• Conductivity meter: a device for measuring conductivity of combustion gas

(ray magnetic)

• 7 "color touch screen and PLC and PID automatic calculation of the module

control heating furnace temperature

• Heating furnace: φ220×600; effective heating space: φ43×550; power: 4KW

• Washing bottle: 500ml straight pipe bottle, quantity: 2; 2L measuring cup,

quantity: 1

Specifications:

• Installation size: 2300 mm (W) × 600 mm (D)

• Power supply: AC 220V, 50/60Hz, 21A

• The reagent and air supply are prepared by users
