Single Wire And Cable Vertical Flame Propagation Test Machine HH52029 AC 220V 2A
Single Wire And Cable Vertical Flame Propagation Test Machine HH52029 AC 220V 2A
Single Wire And Cable Vertical Flame Propagation Test Machine HH52029 AC 220V 2A
Single Wire And Cable Vertical Flame Propagation Test Machine HH52029 AC 220V 2A
Specifications
Brand Name :
HOOHA
Model Number :
HH52029
Certification :
ISO CE
Place of Origin :
DONGGUAN
MOQ :
1 set
Price :
10000-50000USD/PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5 pcs/month
Delivery Time :
30 working days
Packaging Details :
wood packing
Payment :
TT90% deposit, 10% before delivery
Delivery :
30 working days
warranty :
12 month
Standard 1 :
GB/T18380.(11-12)—2008
standard 2 :
GB/T5169.14-2007
Overall dimensions :
630mm(W)×600mm(D)×2170mm(H)
Power supply :
AC 220V, 50/60Hz, 2A
Description

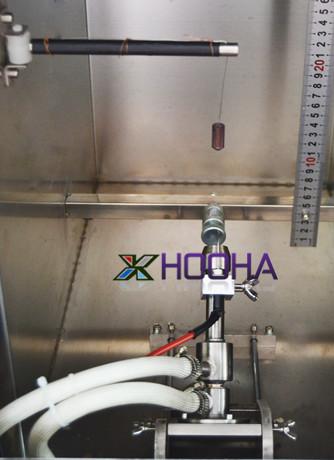

HH52029 Single Wire and Cable Vertical Flame Propagation Tester

Product description:

Single wire and cable vertical flame propagation tester is in accordance with IEC 60332-1-2:2004 <Test on electric and optical fiber cables under fire conditions-Part 1-2: Test for vertical flame propagation for a single insulated wire or cable>. Obtain and determine wire and cable’s capability of prevent the fire from spreading under fire condition

Standards:

• GB/T18380.(11-12)—2008

• GB/T5169.14-2007

Technical parameters:

• Stainless steel control cabinet, fume cupboard and metal cover is all-in-one type, which is easy to operate and good looking

• Metal cover: 1200mm (H)×300mm(W)×450mm(D). The front is open, the top and bottom are sealed

• Blowtorch: nominal power: 1kw

• Control mode: When the set burning time reaches the preset time, the

machine stops supplying the fire automatically

• Burning device: automatic high pressure ignition

• Flowmeter: air flowmeter: 1.5~15L/min, gas flowmeter, 0.1~1L/min

• The separately controlled exhaust fan is installed at the top

• Flame detection device: one imported thermocouple of φ0.5, K type,

one electrolytic copper billet φ9mm, one each weight is 10g±0.05g, a

suit of temperature and time display device

Specifications:

• Overall dimensions: 630mm(W)×600mm(D)×2170mm(H)

• Power supply: AC 220V, 50/60Hz, 2A

• Air source: propane and air( prepared by users)
