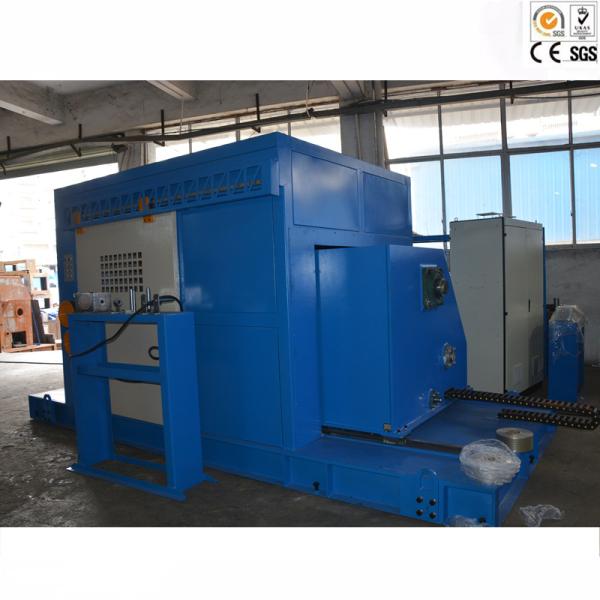

1250MM Cantilever Single Multi Cable Wire Twisting Machine for copper cable wire twisting bunching machine

1. Features:

The machine uses the cantilever cable twister, with the take-up tension = pay-off tension + wire resistance, free of traction; with the motor + ball screw to drive the take-up drum to make wire arrangement; the gap is controlled by the computer. The equipment is specially featured in quick speed, less take-up tension, stable twist gap and high twisting quality.

2. Purpose:

The machine suits for various power cables and electric cables, type 5, 6 and 7data cables, communication cables and other special high speed cables; by using this machine, it can simultaneously finish the center packing belt and side packing belt.

3. Size of take-up shaft: φ1250mm

4. Applicable wire diameter: φ2.0mm-φ8.0mm

5. Diameter of twisted wire: Maxφ30mm

6. Twist pitch: 30mm~450mm,PLC step less and adjustable; the twist pitch is controlled by computer;

7. Gap: 3mm~50mm,PLC step less and adjustable; the twist pitch is controlled by computer

8. Rotating speed of main body: Max 500RPM

9. Drive power: Host machine: 30HP; Take-up: 7.5HP, wiring: 2HP and packing belt 2HP motor Dongguan motor for driving,American Emerson converter

10. Brake: Pneumatic boosting oil-pressure disc brake for the take-up and the host machine……Taiwan Shiyi Brake

11. Take-up box: The planet-differential mechanism makes the take-up speed tract the speed change of host machine to ensure the stable twist pitch.

12. Electric paper-packing machine:

1) The packing direction “S” or “Z” can be changed randomly;

2) Rotating disc of belt: Diameter of disc 300mm; width: 10mm～50mm and hole diameter: 50mm

3) To brake by the braking motor.

13. Electric appliance’s control: It adopts the programmable controller (PLC) and man-machine interface to make automatic control, with the main operating parameters to be traced and displayed automatically; there is available the automatic stop and broken-wire stop selection.

Switch, button and indicator lamp………….Taiwan TEND

Intermediate relay……………………………Japan Omron

14. Color: Blue

Equipment’s integral part:

Single winch……………………………………. .1 set

Paper-packing machine………………………. . 1 set

Electric cabinet………………………………… .1 set

Feeding template………………………………..1 pair

Automatic paper loader……………………..1 set

15. Spare parts

Toolkit and tools…………………………….1 set

Operating instruction………………………1 copy

Factory & Workshop &Warehouse

Cooperating with German spare parts and production software and using best quality materials and intelligent machine, HOOHA's products maintain high quality with strongly competitive price.

Package

Two methods: RTA (Ready to assemble, Flat Pack) and fully assembled.

Plywood frames and Stretch film are used to avoid breakage in transit.
