customized High Efficiency Carbon Steel Pipe Making Equipment With Round Tube 10-38.1mm
customized High Efficiency Carbon Steel Pipe Making Equipment With Round Tube 10-38.1mm
customized High Efficiency Carbon Steel Pipe Making Equipment With Round Tube 10-38.1mm
customized High Efficiency Carbon Steel Pipe Making Equipment With Round Tube 10-38.1mm
customized High Efficiency Carbon Steel Pipe Making Equipment With Round Tube 10-38.1mm
customized High Efficiency Carbon Steel Pipe Making Equipment With Round Tube 10-38.1mm
customized High Efficiency Carbon Steel Pipe Making Equipment With Round Tube 10-38.1mm
customized High Efficiency Carbon Steel Pipe Making Equipment With Round Tube 10-38.1mm
Specifications
Brand Name :
HOOHA
Model Number :
HH-38
Certification :
ISO CE
Place of Origin :
DONGGUAN
MOQ :
1 set
Price :
70000-75000USD/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1 set/3 month
Delivery Time :
80 working days
Packaging Details :
PE plastic
Round tube O.D. :
min 10.0mm, max.38.1mm
Square tube :
min 8x8mm, max30x30 mm
Rectangle tube :
min 8x10mm, max20x24 mm
Wall thickness sq & rec. :
min.0.4mm, max.1.8mm
H.F. welder :
Solid state, 150 kW
Line Speed :
Max 120 m/min
Tube length :
5 – 12 m
Tube length accuracy :
±2mm per 6m length
Description

Hot sales and fast delivery date carbon steel pipe making equipment with round tube 10-38.1mm

customized High Efficiency Carbon Steel Pipe Making Equipment With Round Tube 10-38.1mm

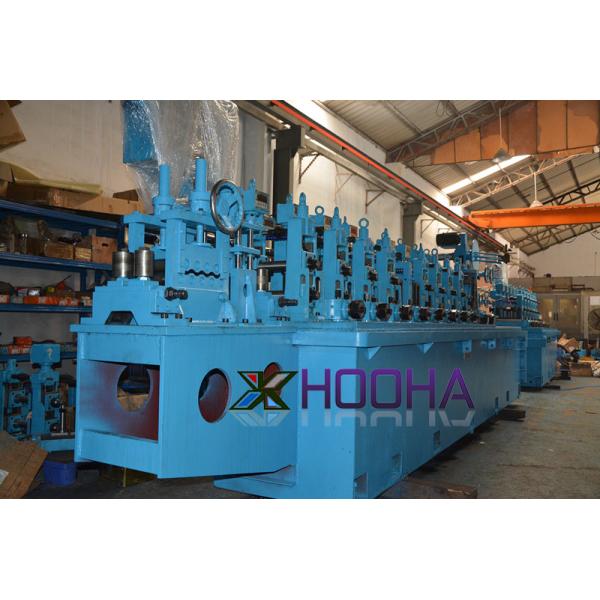

Φ38 Tube mil lLine

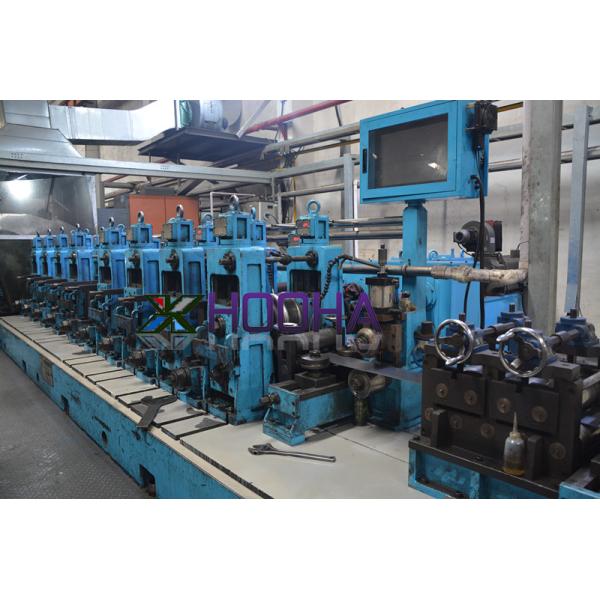

High‐frequency welded tube mill line is designed to produce round tube diameter of 10.0 – 38.1mm, and wall thickness of 0.4 ‐1.8mm.This line utilizes roll forming to process steel strip into various shapes. Using high frequency induction heating, this line is capable of producing section material of various diameters and sizes by squeezing weld seam together into closed shape. The application of advanced aperture technology, PLC automatic control system and British Eurasia Digital speed‐regulating unit ensure that the production line works reliably and operates and maintains easily.

customized High Efficiency Carbon Steel Pipe Making Equipment With Round Tube 10-38.1mm

HOOHA carbon steel pipe making machine
NO. Model Round tube Sq.Rec Tube speed m/min Major Motor power/KW High frequency power/KW
diameter/mm Thickness/mm Max.sq.size/mm Max.Rec.Size/mm Thickness/mm
1 HH12 8.0-16 0.3-1.0 12*12 10*14 0.3-0.8 20-100 30.0 100.0
2 HH16 8.0-25 0.3-1.0 20*20 15*25 0.3-0.8 20-100 30.0 100.0
3 HH25 8.0-32 0.4-1.3 25*25 20*30 0.4-1.0 20-100 45.0 100.0
4 HH28 10-40 0.5-1.5 30*30 20*40 0.5-1.2 20-90 75.0 150.0
5 HH32 13-50 0.6-2.0 40*40 30*50 0.6-1.5 20-90 110.0 150.0
6 HH32L 16-63 0.6-2.0 50*50 40*60 0.6-1.5 20-90 110.0 150.0
7 HH50 19-63 0.8-2.5 50*50 40*60 0.8-2.0 20-90 132.0 150.0
8 HH50L 19-76 0.8-2.5 60*60 40*80 0.8-2.0 20-90 160.0 200.0
9 HH60 21-76 1.0-3.2 60*60 40*60 1.0-2.5 20-80 185.0 200.0
10 HH60L 21-89 1.2-3.2 70*70 60*80 1.2-2.5 20-60 185.0 200.0

customized High Efficiency Carbon Steel Pipe Making Equipment With Round Tube 10-38.1mm

Specification
Raw material Carbon Steel, Cold or Hot Rolled pre slit strip coils of weld able grade with max. 0.2% carbon.
Round tube O.D. min 10.0mm, max.38.1mm
Square tube min 8x8mm, max30x30 mm
Rectangle tube min 8x10mm, max20x24 mm
Wall thickness sq & rec. min.0.4mm, max.1.8mm
H.F. welder Solid state, 150 kW
Line Speed Max 120 m/min
Tube length 5 – 12 m
Tube length accuracy ±2mm per 6m length

customized High Efficiency Carbon Steel Pipe Making Equipment With Round Tube 10-38.1mm
