Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm
Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm
Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm
Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm
Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm
Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm
Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm
Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm
Specifications
Brand Name :
HOOHA
Model Number :
HH-32
Certification :
ISO CE
Place of Origin :
DONGGUAN
MOQ :
1 set
Price :
70000-75000USD/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1 set/3 month
Delivery Time :
80 working days
Packaging Details :
PE plastic
Round tube O.D. :
Min 8.0mm, max.32.0mm
Square tube :
Min 8x8mm, max25x25 mm
Rectangle tube :
Min 8x10mm, max20x30 mm
Wall thickness sq & rec. :
Min.0.4mm, max.1.5mm
welder :
Solid state, 100 kW
Line Speed :
Max 120 m/min
Tube length :
5 – 12 m
Tube length accuracy :
±2mm per 6m length
Description

Φ32 carbon steel making machineTUBE MILL LINE

Siemens PLC control Carbon steel tube making machine HH32 TUBE MILL with Round tube O.D. 8-32mm

High‐frequency welded tube mill line is designed to produce round tube diameter of 8.0 – 32.0mm, and wall thickness of 0.4 ‐1.5mm.

Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm

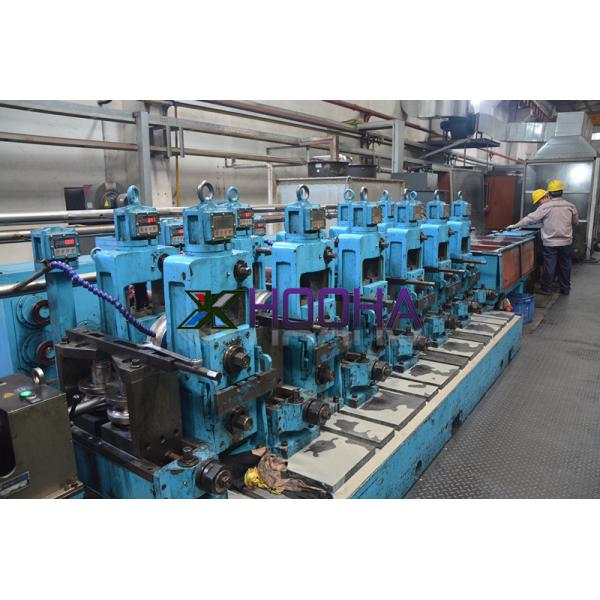

This line utilizes roll forming to process steel strip into various shapes. Using high frequency induction heating, this line is capable of producing section material of various diameters and sizes by squeezing weld seam together into closed shape.

Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm

The application of advanced aperture technology, PLC automatic control system and British Eurasia Digital speed‐regulating unit ensure that the production line works reliably and operates and maintains easily.

Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm

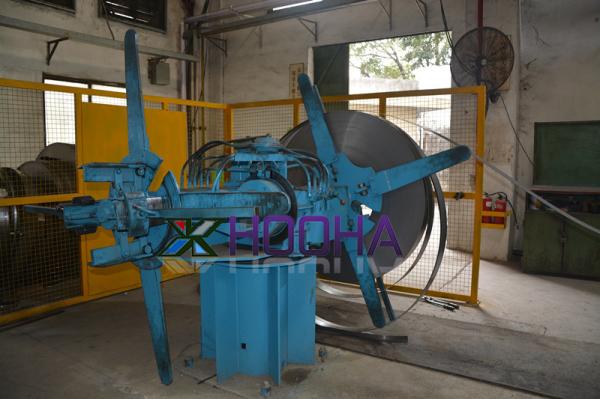

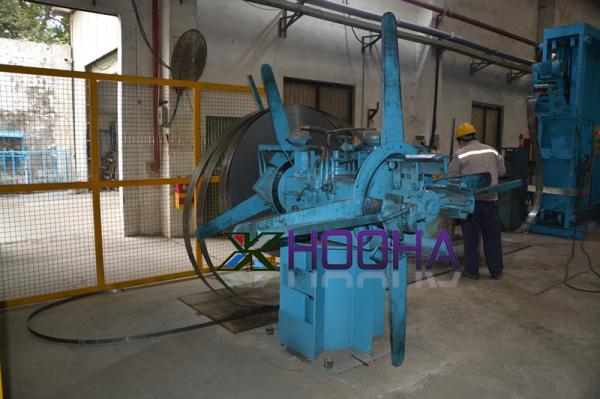

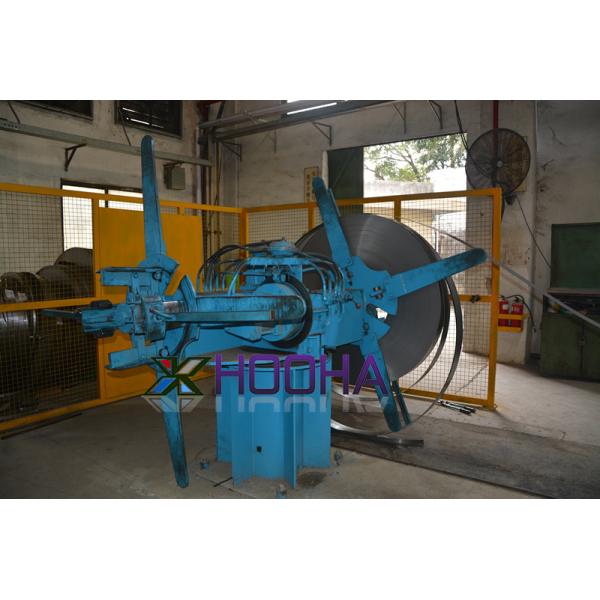

Coil loading—Uncoiling‐Strip joining—accumulator—Forming,‐HF Welding–Bead Remover ‐Cooling—Sizing & straightening‐Measuring roll—Flying saw cutting—Double dumps Run out conveyor

Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm

Specification
- Raw material Carbon Steel, Cold or Hot Rolled pre slit strip coils of weld able grade with max. 0.2% carbon.
- Round tube O.D. Min 8.0mm, max.32.0mm
- Square tube Min 8x8mm, max25x25 mm
- Rectangle tube Min 8x10mm, max20x30 mm
- Wall thickness sq & rec. Min.0.4mm, max.1.5mm
- welder Solid state, 100 kW
- Line Speed Max 120 m/min
- Tube length 5 – 12 m
- Tube length accuracy ±2mm per 6m length
Carbon steel pipe making laying out

Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm

Carbon steel finished products

Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm

carbon steel pipe making factory, Taiwan team already 30 years manufacture experience.

Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm
