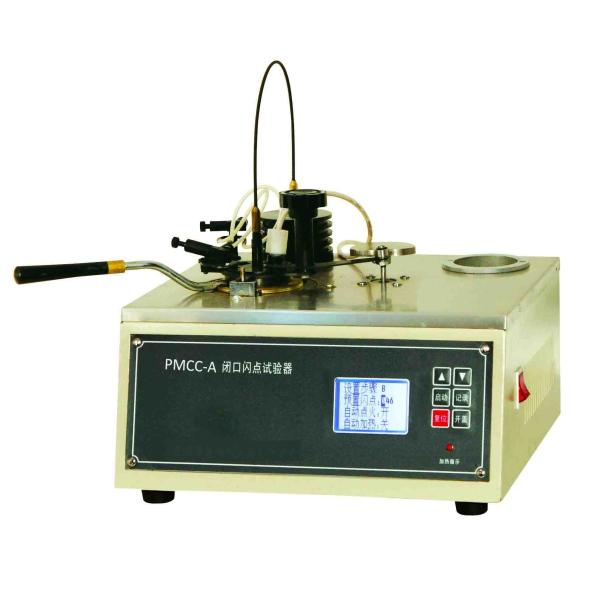

PMCC Flash Point Oil Analysis Equipment Semi - Automatic Pensky Martens Closed Cup
PMCC Flash Point Oil Analysis Equipment Semi - Automatic Pensky Martens Closed Cup
PMCC Flash Point Oil Analysis Equipment Semi - Automatic Pensky Martens Closed Cup
PMCC Flash Point Oil Analysis Equipment Semi - Automatic Pensky Martens Closed Cup
Specifications
Brand Name :
YUYANG
Model Number :
PMCC-A
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1SET
Price :
USD2000/SET
Supply Ability :
100 SET PER MONTH
Delivery Time :
15 DAYS
Packaging Details :
PLYWOOD CASE
Standard :
ASTM D93
Power supply :
AC( 220±10% )V, 50Hz.
Maximum power consumption :
650W
Display :
LCD
Warranty :
1 Year
Color :
Grey
Operation :
Semi-automatic
Product name :
PMCC Flash Point Test Equipment
Description
Semi-automatic Pensky-Martens Closed Cup PMCC Flash Point
Summary
PMCC-A Flash Point Test Equipment is designed and manufactured as per standards GB/T 261-2008 Determination of Flash Point - Pensky-Martens closed cup method and ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester. It is used to make determination of the closed cup flash point of the petroleum products.
I. Main technical features
1. Single chip microcomputer control technique.LCD screen displays.English man-machine interaction interface.The heating power is continuously step-less adjustable.The rate of heating up is exact.Easy setting for parameters.
2. The LCD screen has prompting menu,prompting input operation interface.It shows the setted parameters,real-time temperatures and other test parameters.Press the “record”button when the flash point appears.The screen will show and reserve the flash point.
3. The structure is newly design and small.Stainless steel table-board looks clean and beautiful.PMCC-A flash point test equipment can be used as long as equipped with gas or other civilian fuels.It is easy to use and test results exact.
II. Main technical specifications

1

 Power supply AC( 220±10% )V, 50Hz.
2 Heating device
(1) The furnace is silicon carbide material. Power is 600W.
(2) The heating power is adjustable from 0 W to 600W.
3 Heating rate
Procedure A: (5～6)℃/min, Procedure B:(1～1.6)℃/min.
Automatically controlled
4
Stirring device
(1)Stirring motor: BYGH101 stepping motor
(2) Driving mode: flexible shaft
(3) Shaft size: 8mm×40mm
5 Stirring rate Procedure A: (90～120)RPM, Procedure B: (250±10)RPM
6 Igniting device
(1) Igniting source: gas(or other civilian fuels,the same below)
(2) Electric ignition. Gas flame diameter:3.2mm～4.8mm
7 Temperature testing prob RTD, PT100
8 Ambient temperature ≤ 35℃
9 Relative humidity ≤ 85％
10 Maximum power consumption 650W

III.Accessories
No. Item Unit Qty Remarks
1 Temperature Sensor Piece 1 Pt100 platinum resistance
2 Driving flexible shaft Piece 1 Installed by user itself
3 Latex tube Ф3 0.5 m Piece 2
4 5A fuse (Ф5 × 20) Piece 2
5 Burning torch Handle 1
