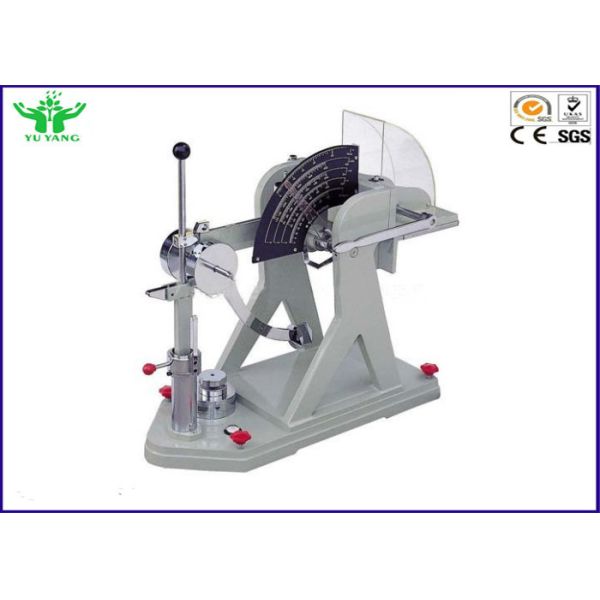

Paper Packaging Corrugated Carton Cardboard Puncture Resistance Tester For Board
Paper Packaging Corrugated Carton Cardboard Puncture Resistance Tester For Board
Paper Packaging Corrugated Carton Cardboard Puncture Resistance Tester For Board
Paper Packaging Corrugated Carton Cardboard Puncture Resistance Tester For Board
Paper Packaging Corrugated Carton Cardboard Puncture Resistance Tester For Board
Paper Packaging Corrugated Carton Cardboard Puncture Resistance Tester For Board
Paper Packaging Corrugated Carton Cardboard Puncture Resistance Tester For Board
Paper Packaging Corrugated Carton Cardboard Puncture Resistance Tester For Board
Specifications
Brand Name :
YUYANG
Model Number :
YYP-005
Certification :
ISO3036 GB/T 2679.7
Place of Origin :
china
Supply Ability :
100 Set/Sets per Month
Delivery Time :
5-8 work days
Packaging Details :
wooden case
Power Supply : :
AC 220V±10%,50Hz,2A;
Frictional resistance :
<0.25J
Dimension :
800*470*840mm
Net weight :
100-500Kg
Pyramid dimension :
three sides 60*60*60mm height 25±0.7mm / Arris edge fillet radius 1.5±0.1mm
Standards :
ISO3036 GB/T 2679.7
Description

ISO3036 Paper packaging corrugated carton cardboard puncture resistance tester for board

Description:

It is the essential instrument to test the puncture strength of paper and cardboard. automatic reset handle , safe protection, high accuracy ,stable performance, counting ,and printing are the main features .It's an indispensable instrument.for cardboard box manufacturing plant, research & quality supervision inspection and other enterprises .

Main Features:

1.Computer control technology, open architecture, automatic processes, simple operation, safe and reliable.

2.Automatic measurement, intelligent estimate, operating systems can show results on time

3.Count, print the test results, and has data storage function;

4.English interface , easy to operate

5.Thermal micro-printer, high print speed, low noise, no ink and ribbons, easy to use, low failure rate;

6.Mechanical and electrical integration of modern design, compact structure, elegant appearance and easy maintenance.

Main technical parameters:

Power supply

AC220V±10% 50HZ

Measurement range

A

(1~6)J indicating error ±0.05J

B

(1~12)J indicating error ±0.10J

C

(1~24)J indicating error ±0.20J

D

(1~48)J indicating error ±0.50J

These indicating errors are ensured just in the measurement range of 20%~80%

Frictional resistance

<0.25J

Pyramid dimension

three sides 60*60*60mm height 25±0.7mm

Arris edge fillet radius 1.5±0.1mm

Dimension

800*470*840mm

Net weight

185kg

Standards:

ISO3036 GB/T 2679.7
