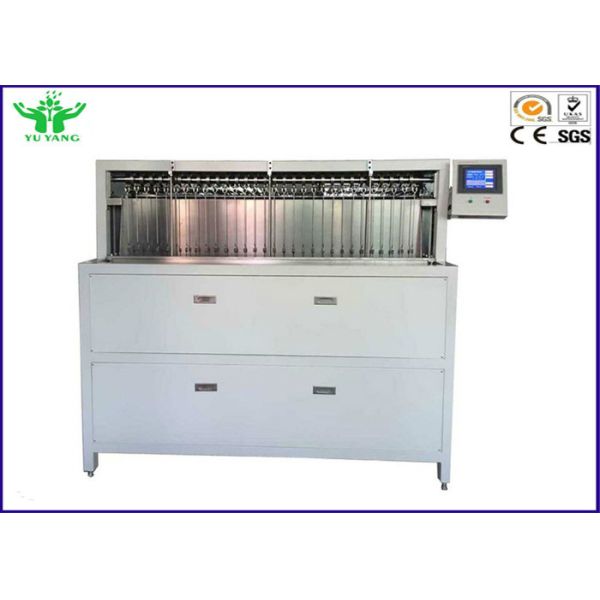

ASTM D5397 Notched Constant Tensile Load Testing Machine 200 ~ 1370g
ASTM D5397 Notched Constant Tensile Load Testing Machine 200 ~ 1370g
ASTM D5397 Notched Constant Tensile Load Testing Machine 200 ~ 1370g
ASTM D5397 Notched Constant Tensile Load Testing Machine 200 ~ 1370g
ASTM D5397 Notched Constant Tensile Load Testing Machine 200 ~ 1370g
ASTM D5397 Notched Constant Tensile Load Testing Machine 200 ~ 1370g
ASTM D5397 Notched Constant Tensile Load Testing Machine 200 ~ 1370g
ASTM D5397 Notched Constant Tensile Load Testing Machine 200 ~ 1370g
Specifications
Brand Name :
YUYANG
Model Number :
YYL-015
Certification :
ASTM D5397, CJ/T 234 C
Place of Origin :
China
Supply Ability :
100 Set/Sets per Month
Delivery Time :
10-15 work days
Packaging Details :
Export Standard Wooden Case
Leverage ratio :
1:3
Thickness range of geomembranes to measure :
0.75~3mm
Max. load of each leverage :
≤5kg
Load range: :
200~1370g
No.of test Unit: :
6 or customize
Display mode :
Touch panel
Tube weight: :
196±3g
Timing range: :
1s~9999h59min59s
Description

ASTM D5397 Notched Constant Tensile Load Testing Machine 200~1370g

Product Description:

Notched Constant Tensile Load Testing Machine for Plastic is used to evaluate the stress crack resistance of polyolefin geomembranes by notched constant tensile load test. It is mainly applicable to the geomembranes used on the landfill site. Dumbbell shaped notched test specimens from a polyolefin sheet are subjected to a constant tensile load in the present of a surface-active agent and at an elevated temperature. The time to failure of test specimens is recorded and the results of a series of such tests conducted at different stress levels are presented by plotting stress level against failure time for each stress level on a log-log axis.
Notched Constant Tensile Load Testing Machine is used to determine the impact toughness of non-metallic material such as rigid plastics, fibre reinforced composite material, nylon, glass, ceramics, cast stone, asbestos board, electrical insulating material, etc. It is suitable for notched and unnotched specimen.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Main Parameters:

No. of test unit
6 or customize
Working position
5pcs per test unit
Load range
200~1370g
Tube weight
196±3g
Tube bearing weight
600g
Timing range
1s~9999h59min59s
Timing accuracy
1s
Timing deviation
1min
Volume of bath
125L
Temperature control range
RT~80℃
Display resolution
0.1℃
Temperature accuracy
±0.5℃
Clamp axis diameter
Φ6
Operation temperature
10~35℃
Heating power
3.0kw
Power supply
Single phase, (187~242) VAC, 50Hz, 4.5kw
Size
1900×500×1400mm (L×W×H)

Standard:

ASTM D5397, CJ/T 234 C

ASTM D5397 Notched Constant Tensile Load Testing Machine 200 ~ 1370gASTM D5397 Notched Constant Tensile Load Testing Machine 200 ~ 1370gASTM D5397 Notched Constant Tensile Load Testing Machine 200 ~ 1370gASTM D5397 Notched Constant Tensile Load Testing Machine 200 ~ 1370gASTM D5397 Notched Constant Tensile Load Testing Machine 200 ~ 1370g
